Nobels CH-D Stereo Digital Chorus Guitar Effect Pedal Used

Used with wear associated with use. Minor cosmetic scratches/scuffs from handling and play. Noteworthy blemishes or issues will be described and pictured. Works as it should.

We strongly recommend using the proper power supply for any pedal. Daisy chain power supplies may not supply enough power when using multiple pedals or introduce noise into the chain. Consult the pedal manual when available for manufacturer recommended power specifications.

Specifications

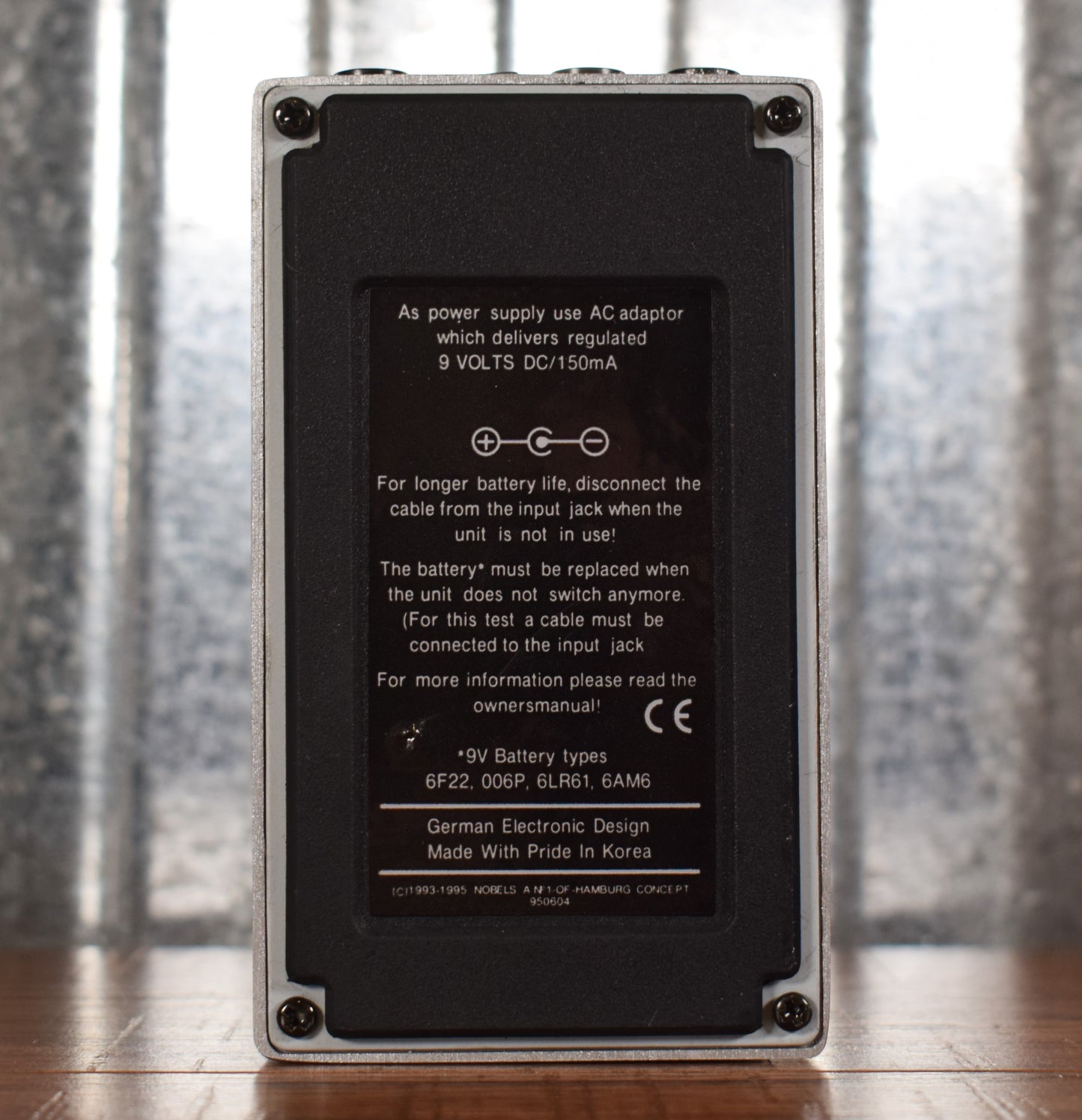

Power 9V dry battery / AC adaptor
Consumption max. 86mA
Input impedance 1Mohm
Output impedance 2Kohm
Max. input +6dBm
Controls EFF-Level,Resonance, Speed, Intensity
MODE-Schalter 1, 2, 3, 4 (20ms, 15ms, 10ms, 5ms Delay)
Jacks Input, DC, Remote, Out
Remote momentary switch
Display Green LED (ON/OFF), red LED (SPEED)
Dimensions 74mmx126mmx58mm
Weight 460g (Without battery!)

Function:

IN jack: Inserting a plug switches the unit on.

9V DC jack: Connect a regulated 9V power supply unit.

REMOTE jack: The ON / OFF-function can be remote controlled by a momentary switch, connected to the REMOTE jack (5). Intelligent switching devices (like the Nobels MF-2 or MS-4) also can remote control the unit.

OUT jack: This output delivers a low impedance stereo output signal best for the input of your amplifier. Can be used with a mono plug also!

EFF.-LEVEL control: Adjusts the amount of the chorus effect.

RESONANCE control: Special designed circuit to achieve sounds from warm to metallic.

CLIP/ON LED: Shows the state of the chorus effect and flashes up if the input stage is overloaded. (Reduce the level of the input source!)

SPEED control: Adjusts the speed of the modulation.

SPEED LED: Indicates the speed of the modulation.

INTENSITY control: Adjusts the intensity of the modulation. (Note: Be careful! Very efficent!)

MODE selector: Select one of the four different delay times. Note: Mode 1 sounds best, if uses with 2 amps; = Super-Stereo, Mode 4 if a lot of RESONANCE is used!
