Supro USA 1307 Chorus Guitar Effect Pedal
Supro USA 1307 Chorus Guitar Effect Pedal
Specialty Traders is an Authorized Supro Dealer!
Supro USA 1307 Chorus Guitar Effect Pedal
New
We strongly recommend using the proper power supply for any pedal. Daisy chain power supplies may not supply enough power when using multiple pedals or introduce noise into the chain. Consult the pedal manual when available for manufacturer recommended power specifications.
ANALOG CHORUS WITH DIMENSION
The Supro Chorus is an all-analog, full-stereo modulation stompbox that uses a pair of genuine MN3007 Bucket Brigade IC chips to deliver the thickest, most luscious Chorus effect possible in pedal form, all while maintaining exceptional headroom. In addition to Speed and Depth knobs, the Supro Chorus features a Time control that increases the delay time on one side of the stereo field while shortening the delay time on the other side. Further increasing the available drama is a Dimension control, which mixes the stereo channels into one another for a mesmerizing intermingling of the two delay lines being modulated in opposite directions. A Vibrato switch removes the clean pass-through signal, allowing for pure pitch modulation with the Dimension knob, introducing a more complex, double vibrato effect. Runs on standard 9VDC.

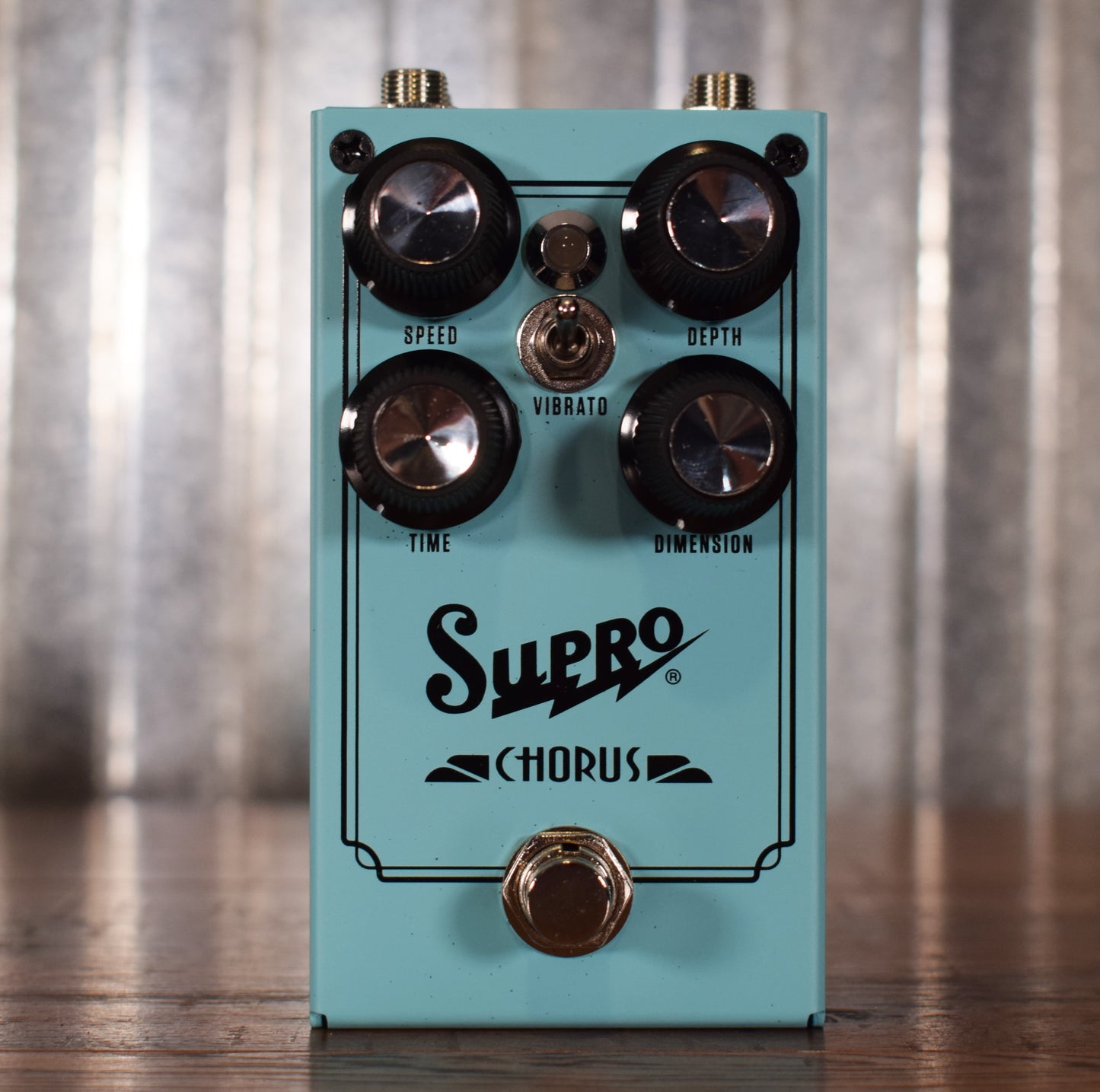

KNOB-BY-KNOB
Depth: Sets the amount of modulation
Speed: Sets the rate of modulation
Time: Changes the delay time of both chorus channels in opposite directions
Dimension: Mixes the two Chorus channels together
Vibrato: Eliminates the clean signal from the effect for pure pitch modulation
SWIMMING IN SOUND DESIGN
Featuring genuine Bucket Brigade IC chips, the Supro Chorus offers unimaginably luscious soundscapes, especially when played through a stereo amp setup.
Specifications:
FUNCTION
Analog Chorus with Dimension
POWER
9VDC
CURRENT DRAW
100mA
INPUT IMPEDANCE
2.2M
OUTPUT IMPEDANCE
150ohms
LENGTH (IN)
4.9
WIDTH (IN)
3.2
HEIGHT (IN)
3.2
WEIGHT (LBS)
1
