AKG P220 Recording Large Diaphragm Condenser Microphone & Case

Specialty Traders is an Authorized Dealer! New!

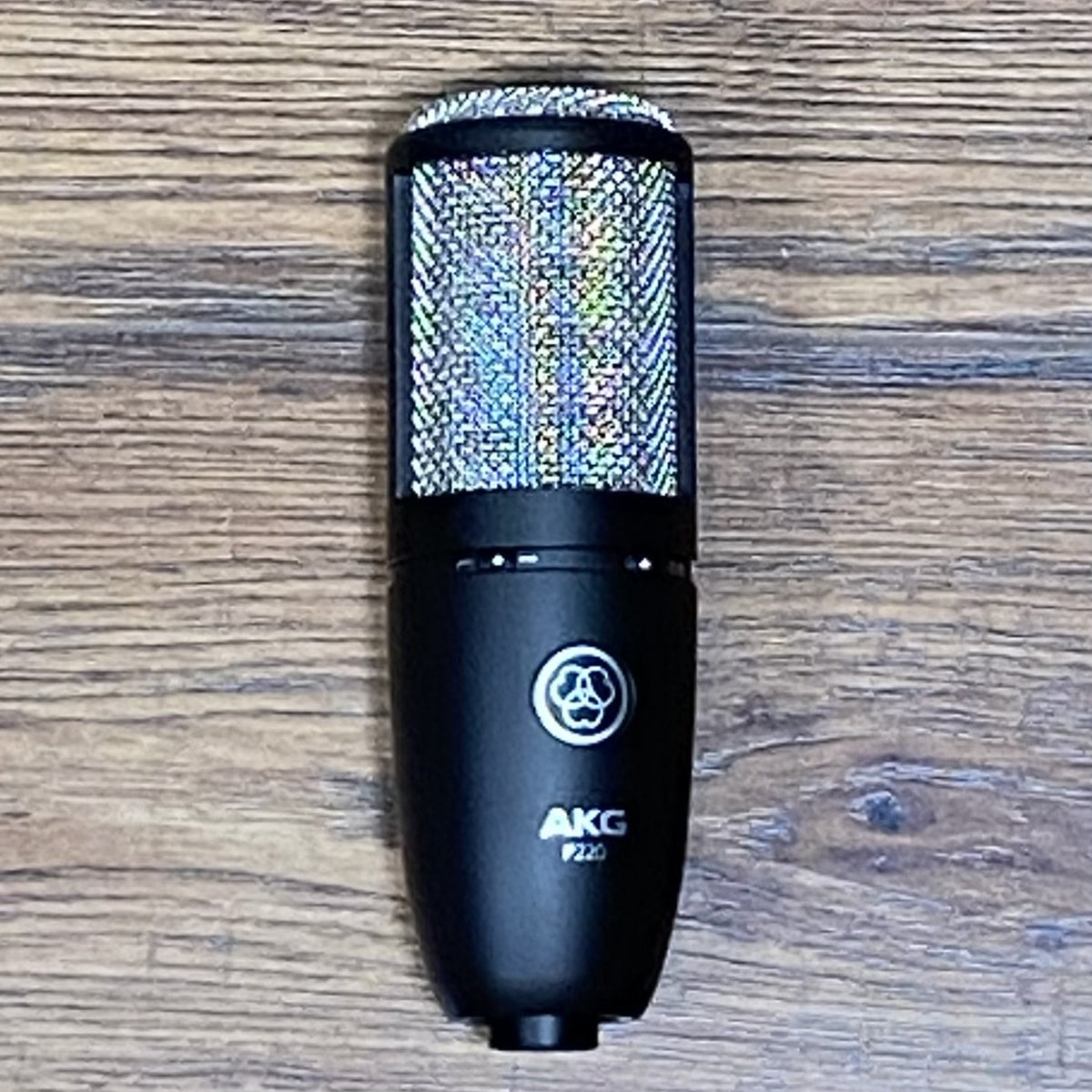

The P220 is a large-diaphragm true condenser microphone offering a warm and clear sound for lead vocals, acoustic guitar and brass instruments. A switchable bass-cut filter and attenuation pad make it perfectly suited for use on loud sound sources with sound pressure levels up to 155dB SPL. The rugged and roadworthy design also makes the P220 a perfect choice for on-stage applications.

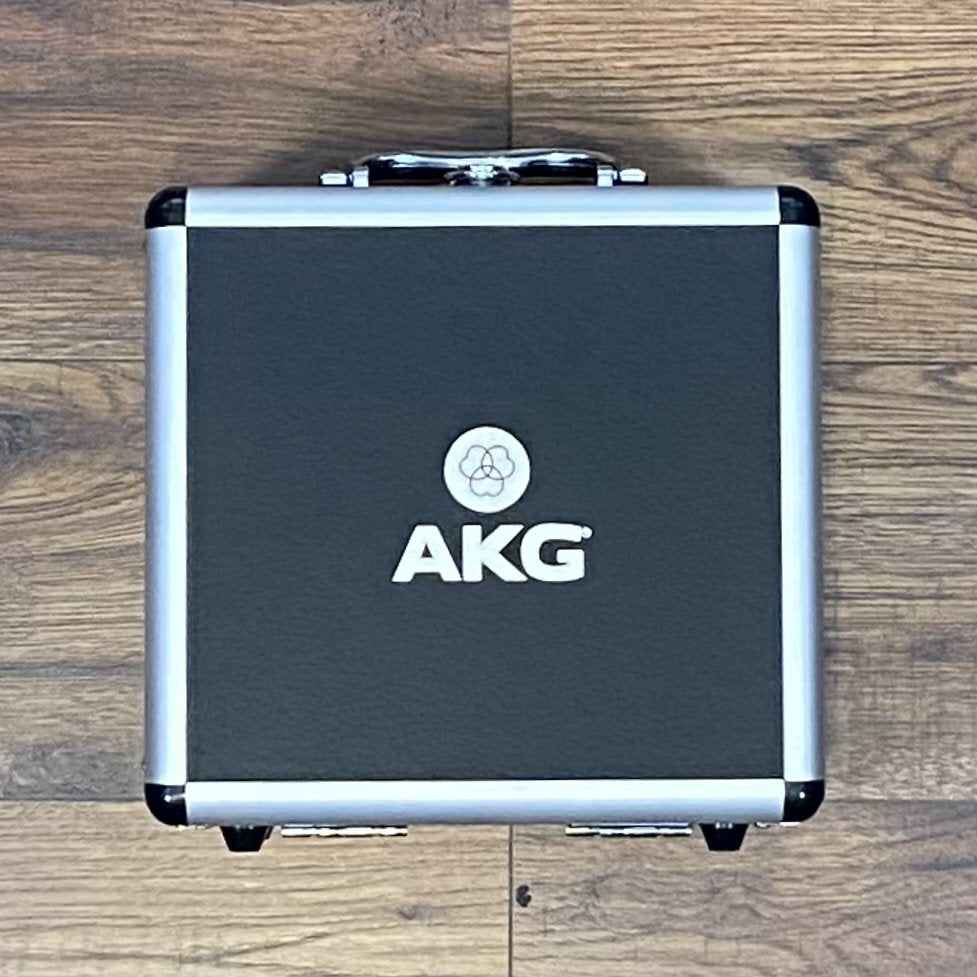

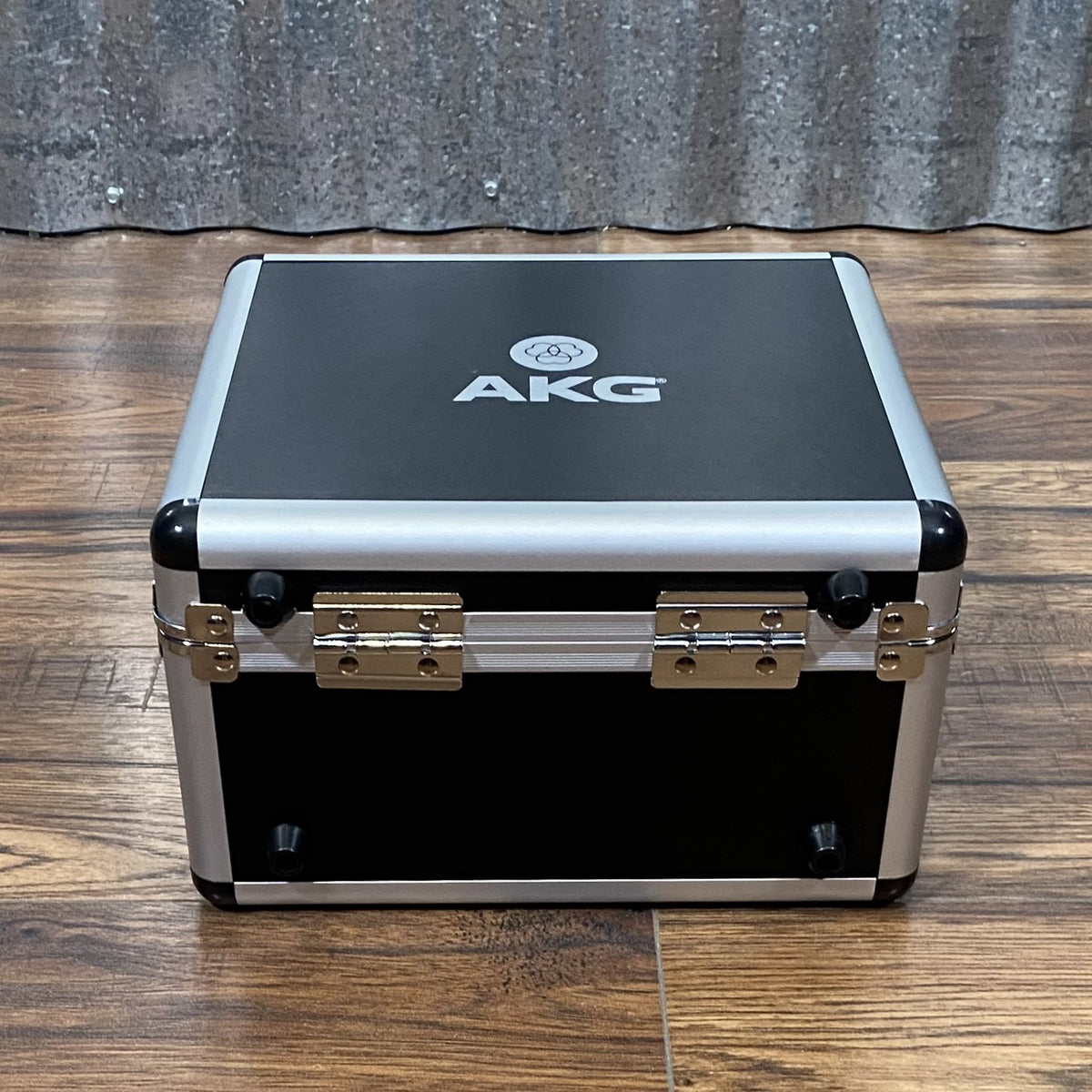

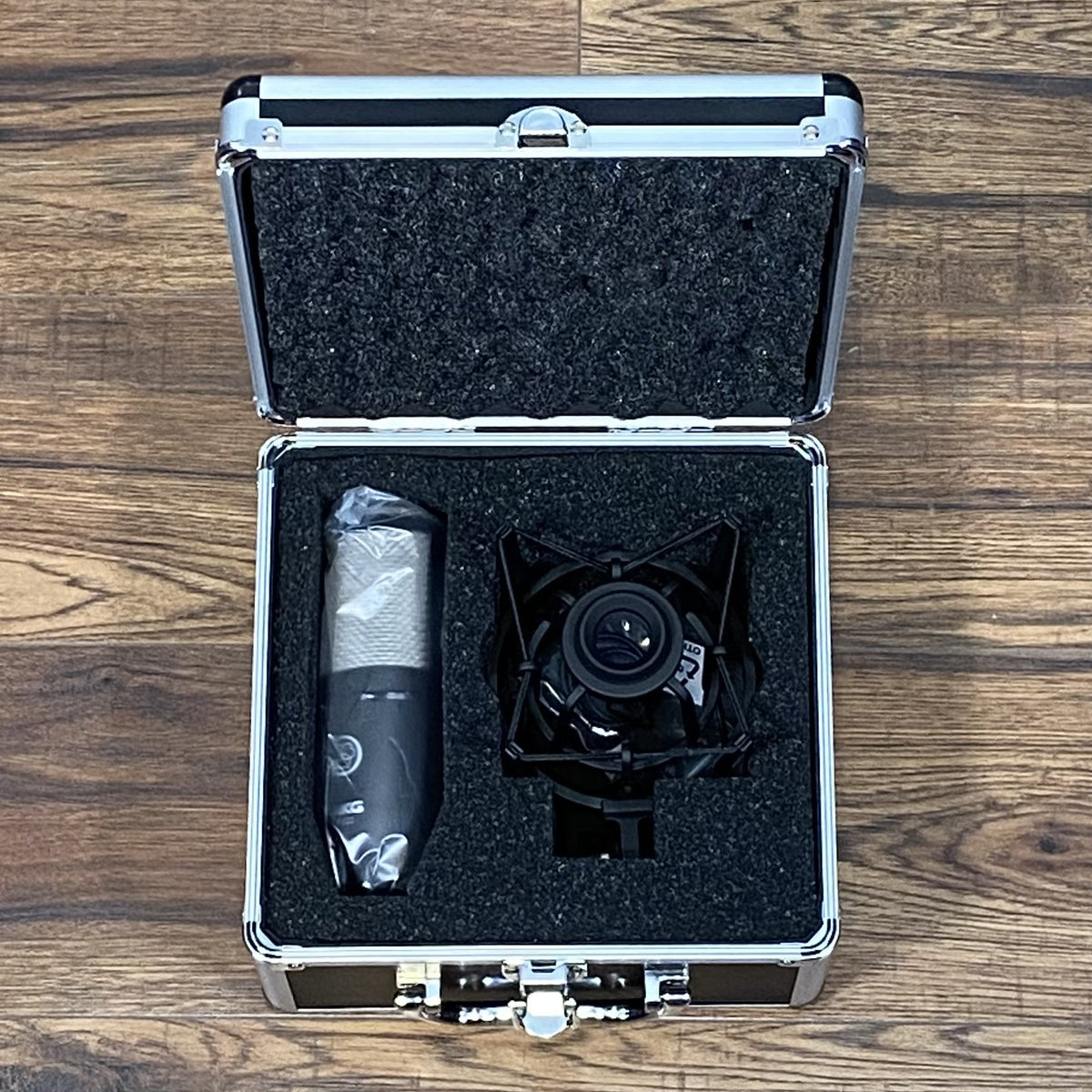

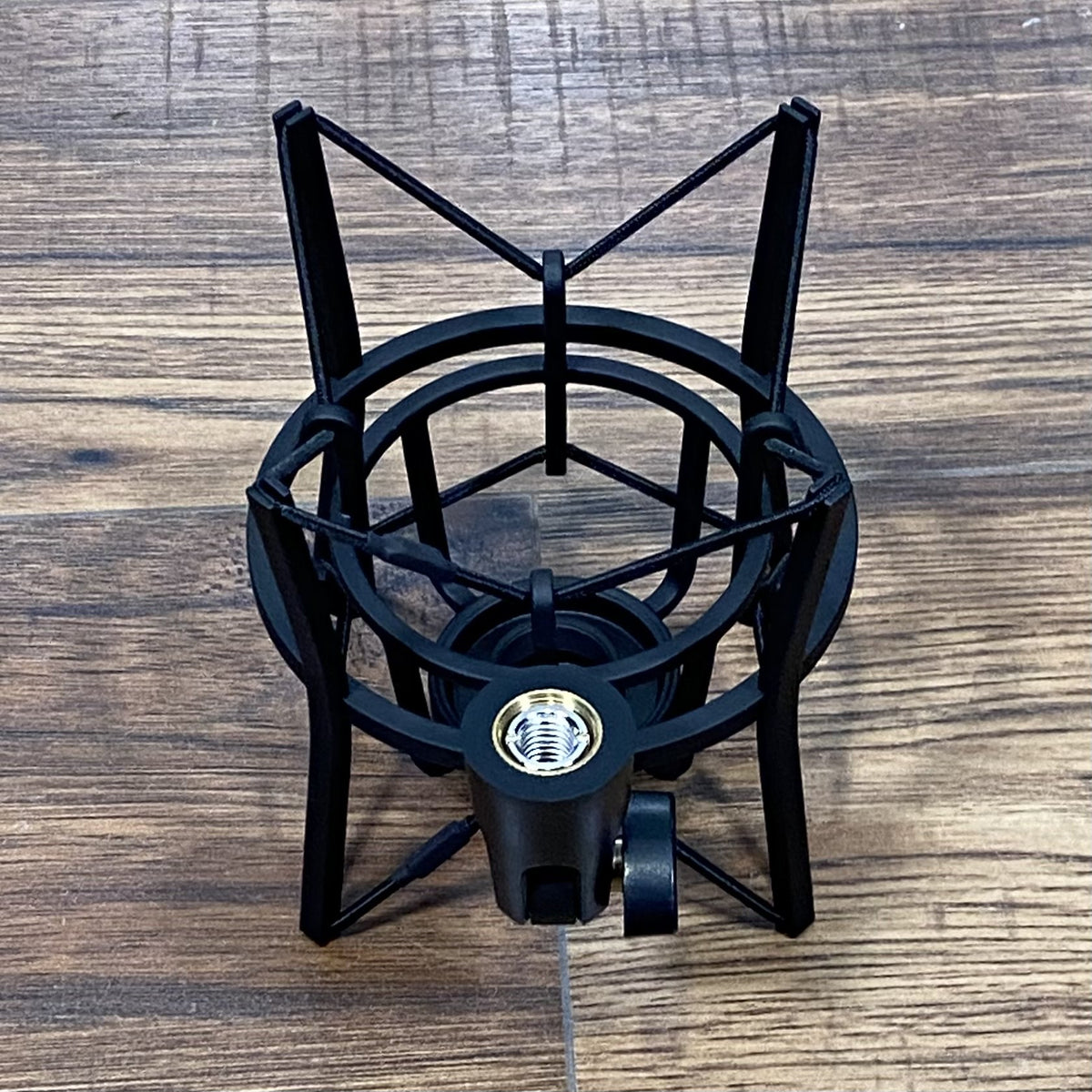

The P220 represents the most popular and successful microphone within the actual Project Studio Line. It comes complete with a spider-type shock mount in an aluminum carrying case.

General Specifications

Polar Pattern Cardioid

Audio frequency bandwidth 20 - 20000 Hz

Equivalent noise level 16 dB-A

Sensitivity 20 mV/Pa

Signal to Noise 78 dB-A

Preattenuation Pad -20 dB

Bass cut filter 300 Hz - 12 dB/octave

Electrical impedance 200 Ohms

Recommended load impedance 1000 Ohms

Dimensions

Length 165 mm

Diameter 54 mm

Net Weight 514 g

Audio Output

Type Balanced XLR

Gender Male

Contacts 3-pin

Powering Interface

Voltage 44 to 52 V

Current 3 mA

Application

Project Studio Yes

Live Instrument Yes

Instrument

Vocals Yes

Piano / Strings Yes

Horns / Woodwinds Yes
