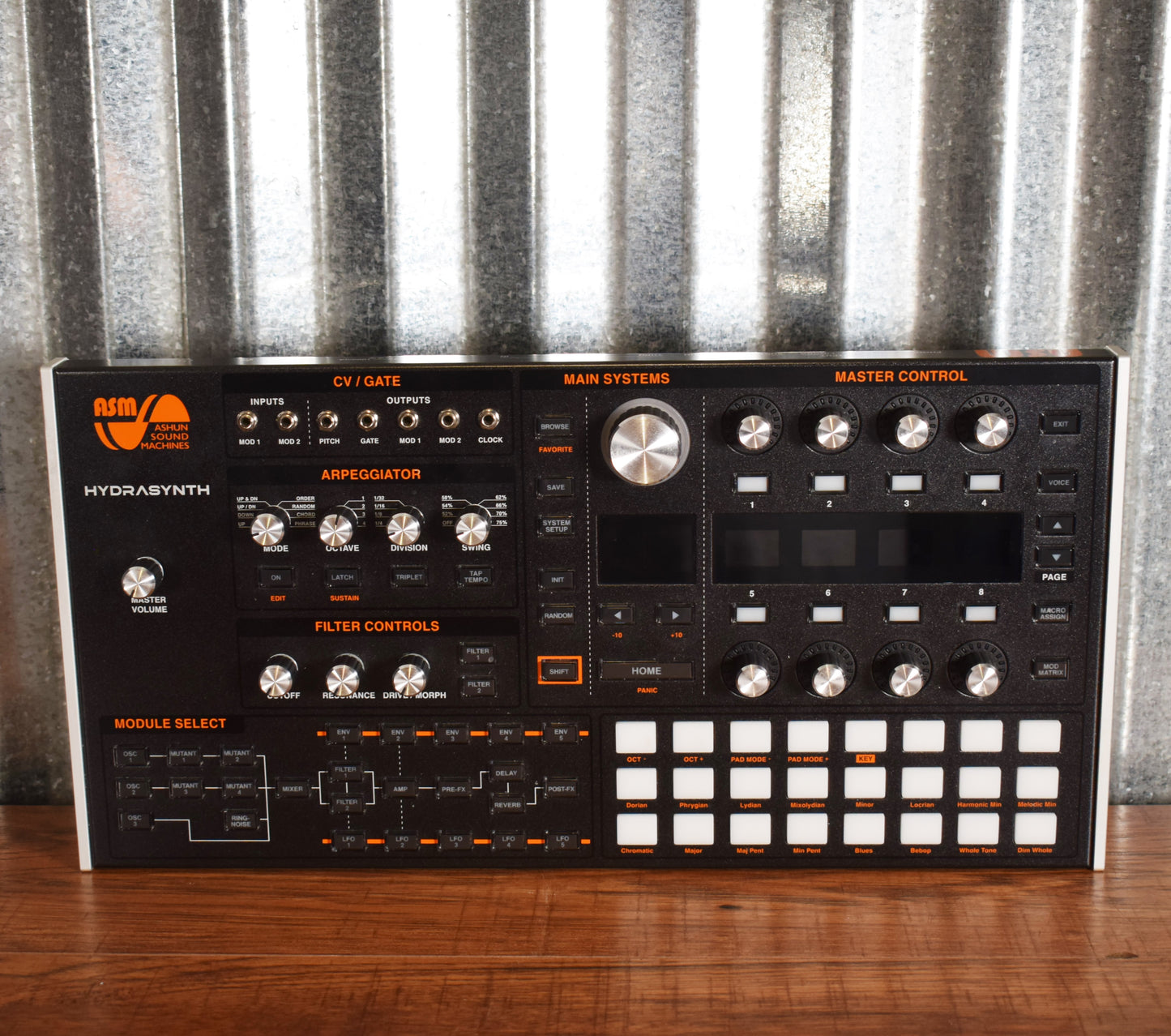

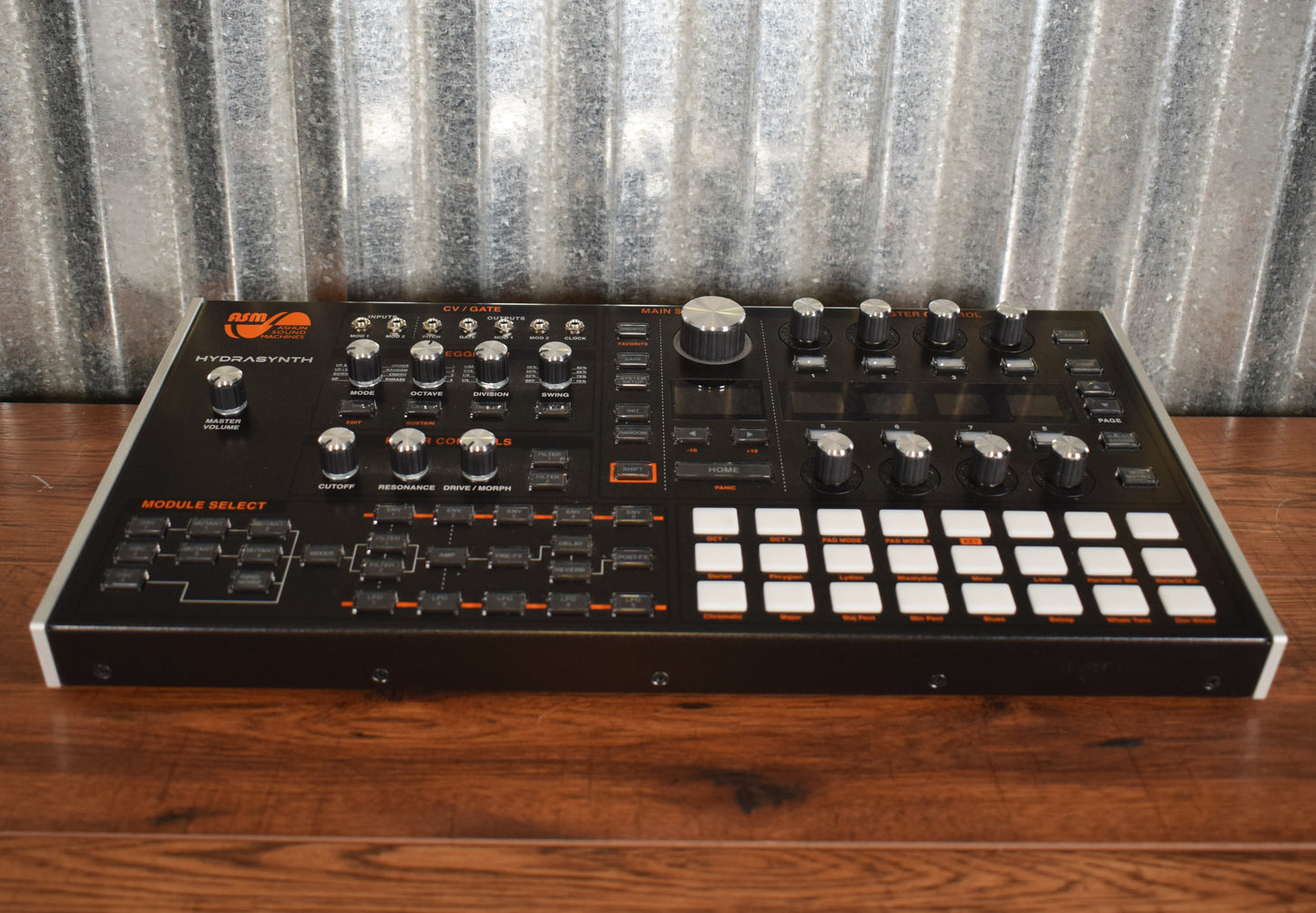

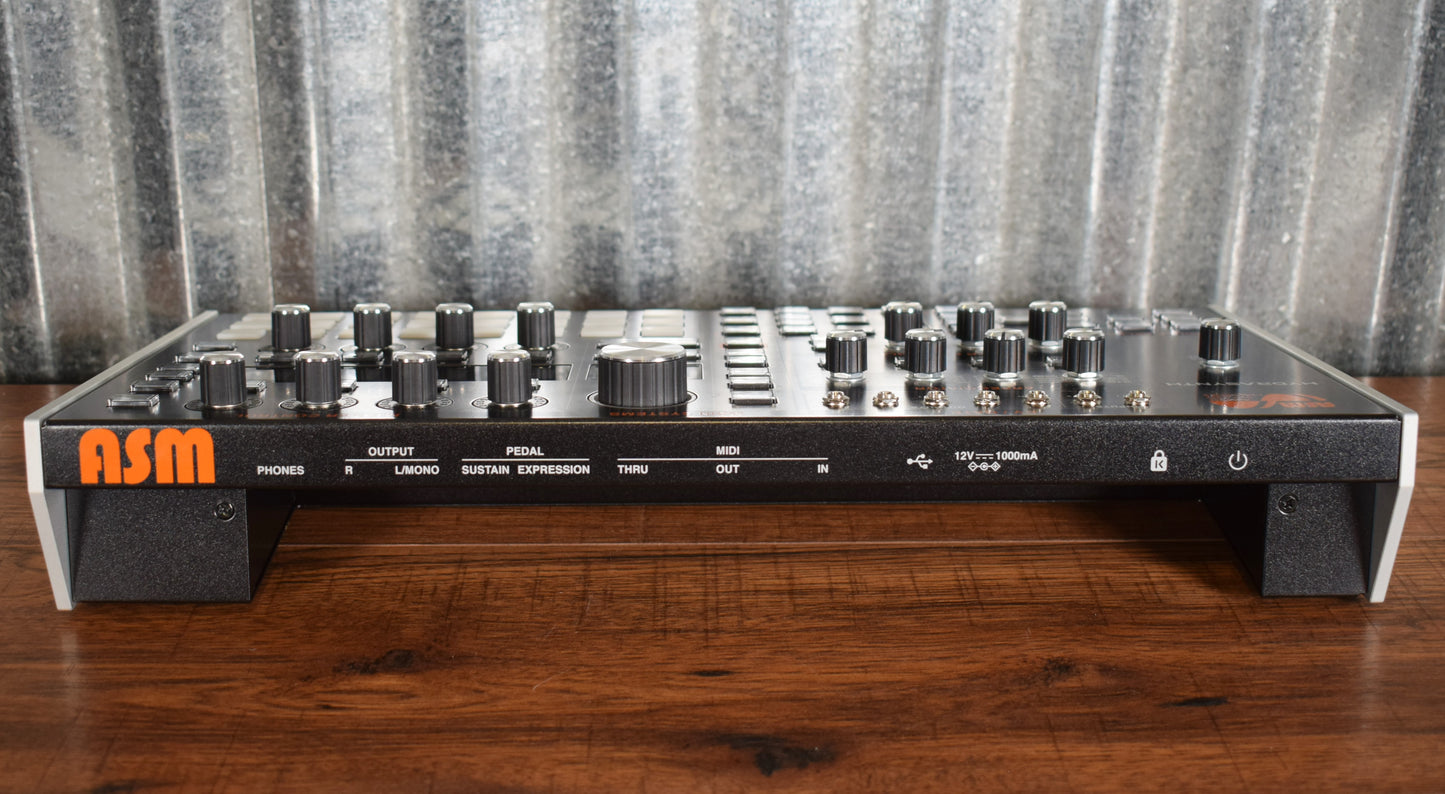

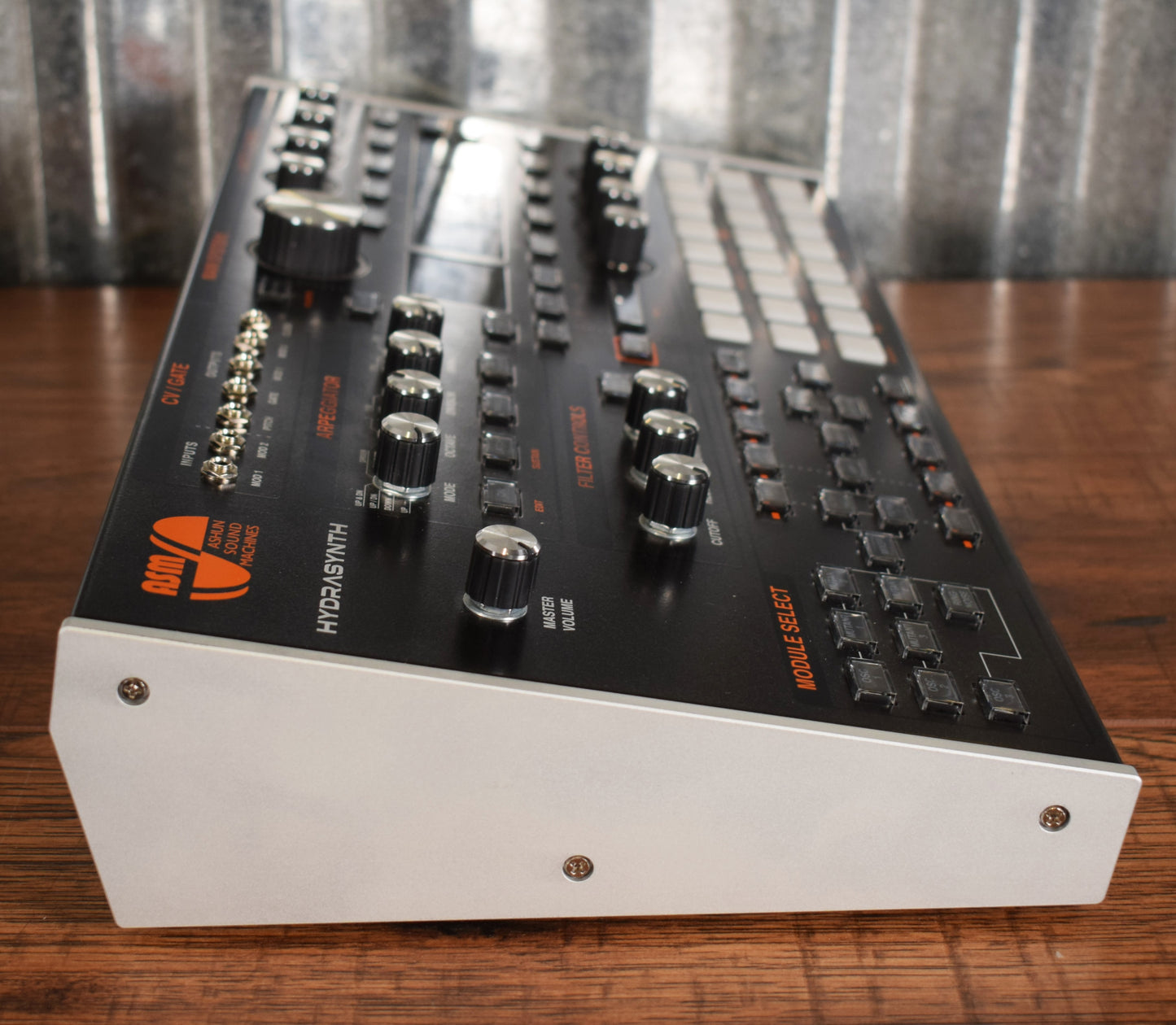

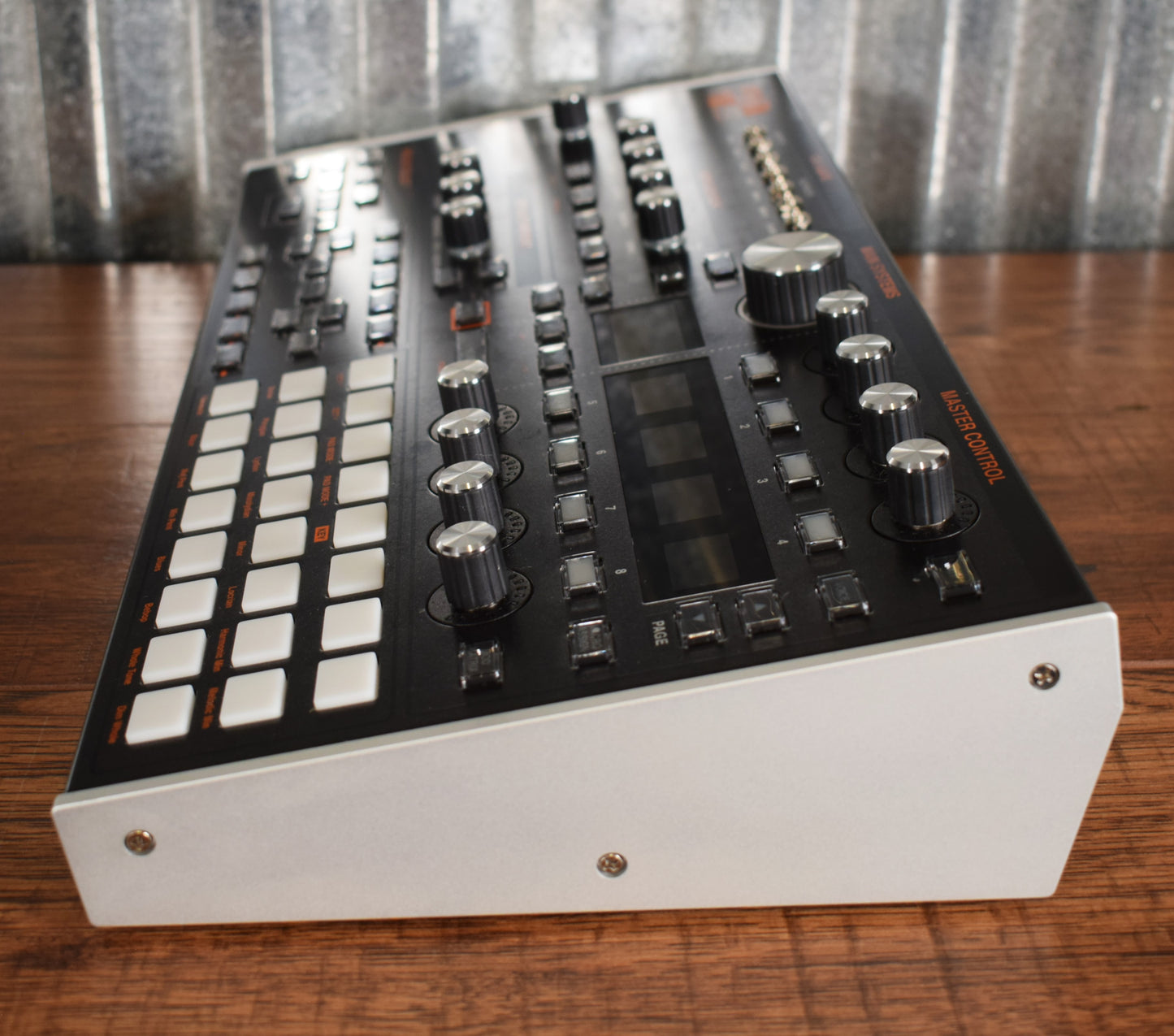

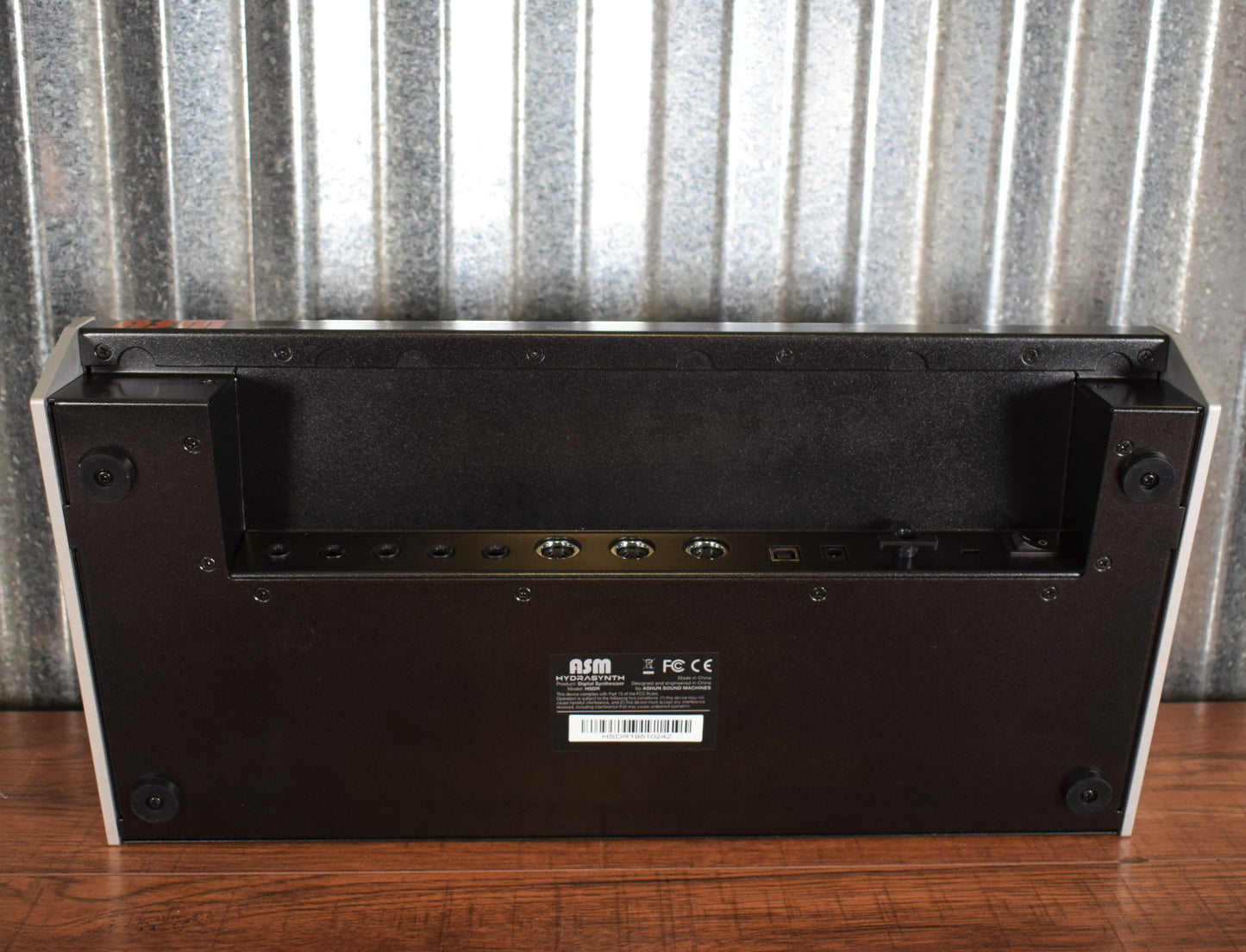

Ashun Sound Machines ASM Hydrasynth Desktop Synthesizer Module Used

Ashun Sound Machines ASM Hydrasynth Desktop Synthesizer Module Used

Used with wear associated with use. Minor cosmetic scratches/scuffs from handling and play. Noteworthy blemishes or issues will be described and pictured. Works as it should.

DESKTOP / RACK

24 Polytouch™ PADS
The HYDRASYNTH Desktop / Rack has the same great sound engine as the HYDRASYNTH Keyboard. The sound engine is a sound designers dream synth as well as a performing musicians ideal. The sound engine is designed for maximum flexibility. At the same time, we designed the user interface in a way to allow you to edit the patch quickly with a minimal amount of paging and many workflow shortcuts.

Utilizing an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutators and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched.

As for the performance capabilities, The Hydrasynth Desktop / Rack has 24 polyphonic pressure touch pads so that you can play the unit without needing to connect a keyboard or other controller. Using multiple pad layout modes as well as quick to access scale modes, the Hydrasynth Desktop / Rack is easy to make music on.

The Hydrasynth Desktop / Rack comes with rack ears so that you can mount it in a standard 19" rack.

Physical Specifications

Metal Chassis
Steel top and bottom
Aluminum side panels
5U in rack
24 PolyTouch pads

24 velocity and pressure sensitive pads
5 banks of 128 patch memories

CV gate input and outputs
Support multiple CV/GATE standards
CV
1v per octave +/-5V
1V per octave 0-10V
Hz to Volts +/-5V
Hz to Volts 0-10V
1.2V per octave
Gates
V-trig, S-trig
3V, 5V, 10V
Mod In/Out range
+/5V, 0-10V, 0-5V, 0-1V
Clock in and out
1PPS, 2PPQ, 24PPQ, 48 PPQ
Clock Voltage - 3v, 5V, 10V
MIDI IN/OUT/THRU
Voice overflow mode for expanding voices with another Hydro synth
Expression pedal input
Sustain pedal input
Polarity sensing input

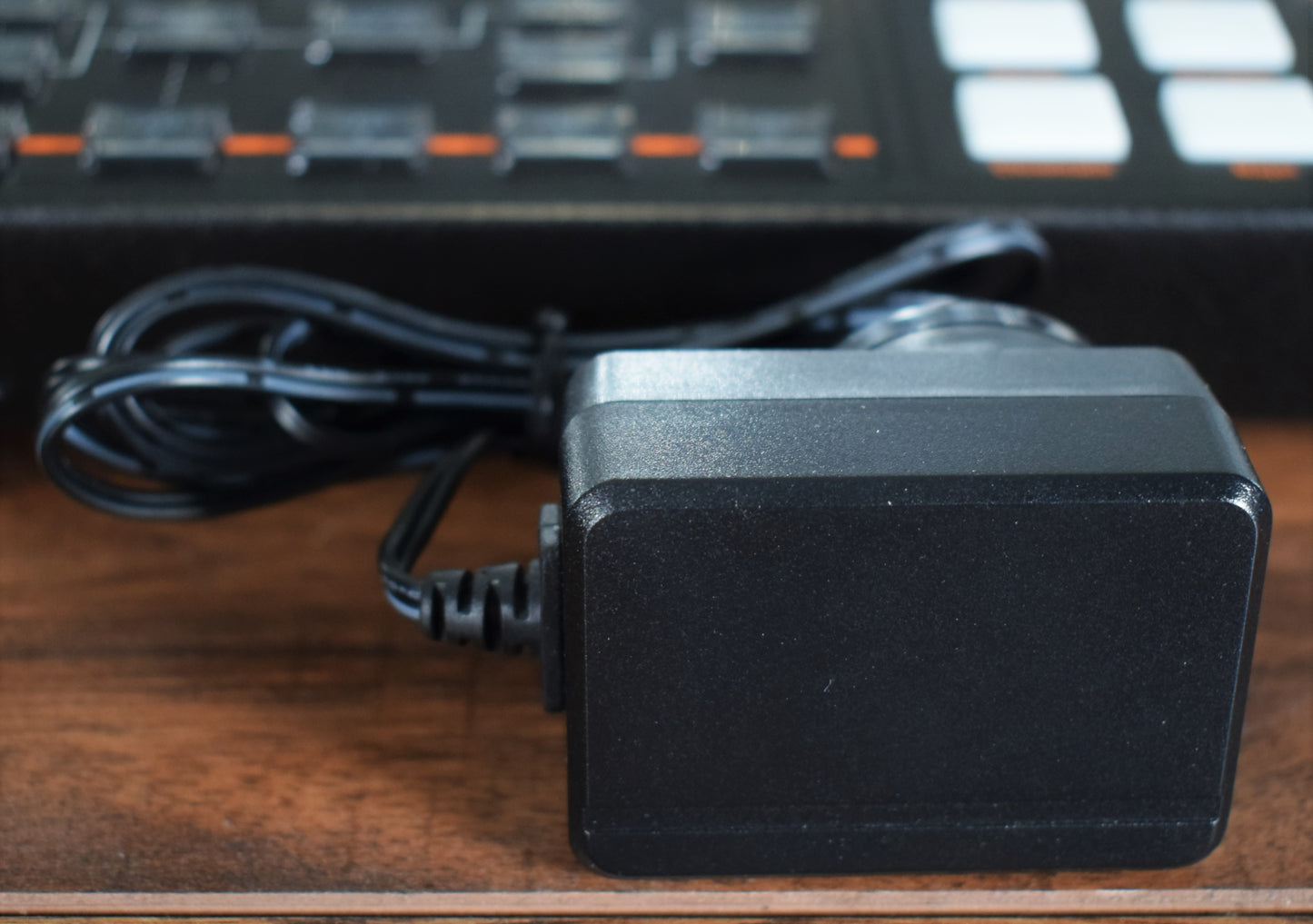

DC input jack

USB port
Supports USB MIDI In/Out
Dimensions
44 x 22.3 x 7 cm
(17.32 x 8.78 x 2.76 inches)

Weight
3.6kg (7.94 lbs)
