Audio Technica AT4021 Small Diaphragm Cardioid Condenser Microphone

Audio Technica AT4021 Small Diaphragm Cardioid Condenser Microphone

New!

Ideal for critical studio and live applications, the low-profile AT4021 offers a flat, extended frequency response, high maximum SPL and wide dynamic range. Its low self-noise is perfectly suited for the most sophisticated recording equipment. Its low-mass diaphragm improves transient response, increases response bandwidth and reduces handling and mechanical noise transfer. The microphone offers outstanding reproduction of low-frequency sounds.

Outstanding performance and rugged construction
High SPL handling and wide dynamic range
Flat, extended frequency response
Switchable 80 Hz hi-pass filter and 10 dB pad
High front-to-back rejection ratio—cardioid polar pattern improves isolation of desired sound source
Low self noise perfectly suited for digital recording equipment
Exceptional reproduction of low frequency sounds
Low-mass element for superb transient response

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY -34 dB (19.9 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal)
NOISE 14 dB SPL
DYNAMIC RANGE (typical) 132 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 80 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 3.0 mA typical
SWITCHES Flat, roll-off; 10 dB pad
WEIGHT 119 g (4.2 oz)
DIMENSIONS 144.0 mm (5.67") long, 21.0 mm (0.83") maximum body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type

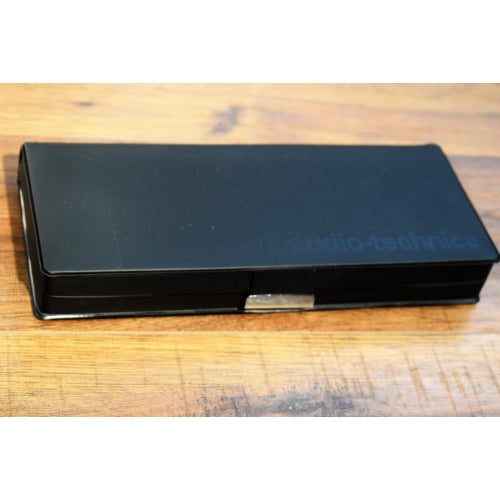

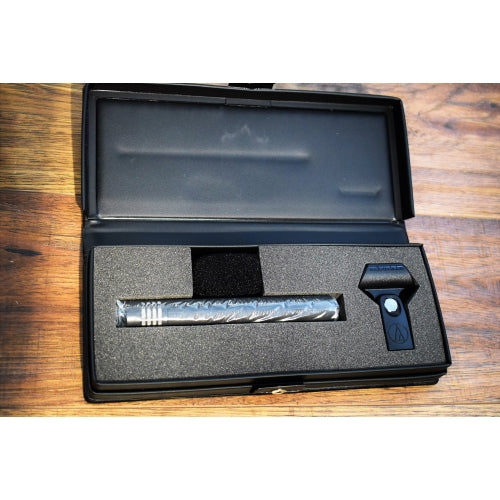

ACCESSORIES FURNISHED AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case
AUDIO-TECHNICA CASE STYLE S1
