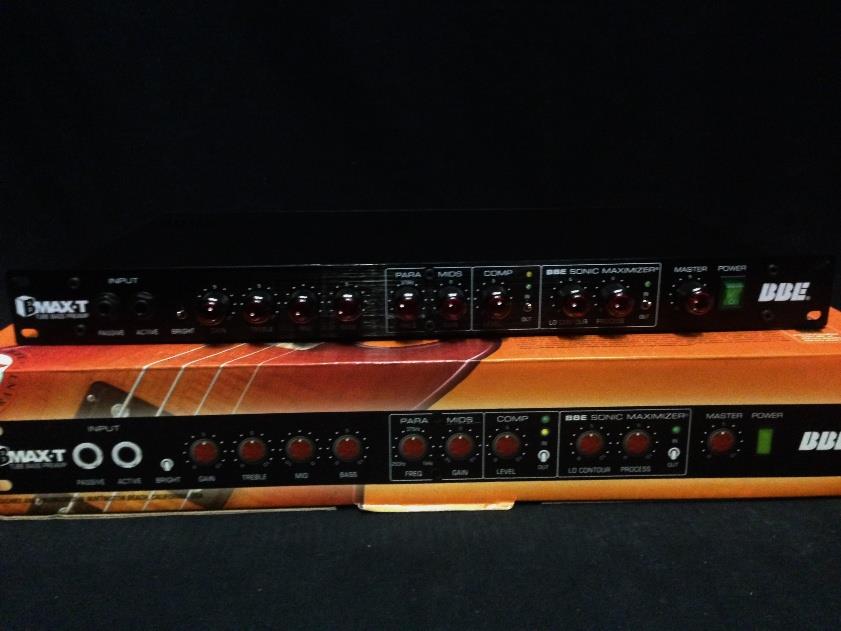

BBE BMAX-T Studio Grade Rack Mount Tube Bass Preamp Sonic Maximizer B-MAX-T

BBE BMAX-T Studio Grade Rack Mount Tube Bass Preamp Sonic Maximizer B-MAX-T

$ 349.00
$ 349.00
Sale Sold out
Shipping calculated at checkout.

BBE BMAX-T Studio Grade Rack Mount Tube Bass Preamp Sonic Maximizer B-MAX-T

Specifications

High voltage (300V) tube front end with hand-picked 12AX7 tube, providing pre-amp gain and passive interactive tone control

High-end DI section is transformerless1% metal film resistors

Military-spec PC board

Custom-made toroidal power transformer

  • Frequency response @ line out
  • 15Hz to 30kHz ±3dBSignal to noise ratio
  • 100dB @ unityTotal harmonic distortion (THD)
  • Tube section: 1%Post-tube section: less than 0.02%Maximum output
  • +22dBuNoise
  • -77dBu @ unity gain, eq flatInput impedance
  • Passive: 1M OhmActive: 100k OhmsOutput impedance
  • Balanced XLR: 600 Ohms, pin #2 hot or “+”Unbalanced ¼”: 1k OhmsInteractive EQ
  • Treble (boost only): 15dB @ 6kHzMid (cut only): 15dB @ 300HzBass (boost only): 15dB @ 40HzBright switch
  • +10dB @ 10kHz, eq flatPara-mids
  • ±12dB from 250Hz to 1kHz (* 0dBu=0.775mVrms)
    •
