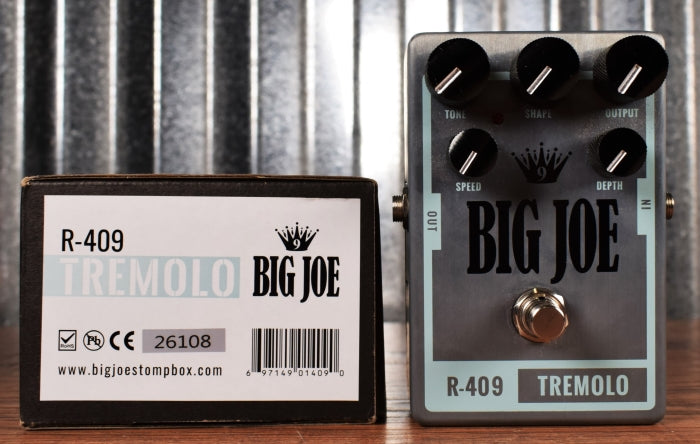

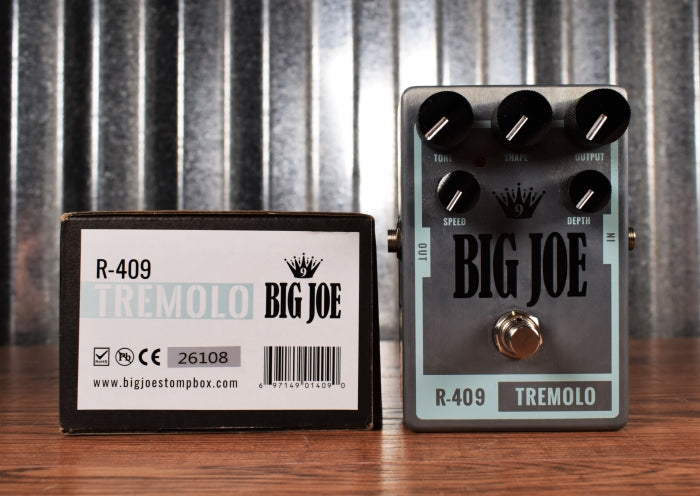

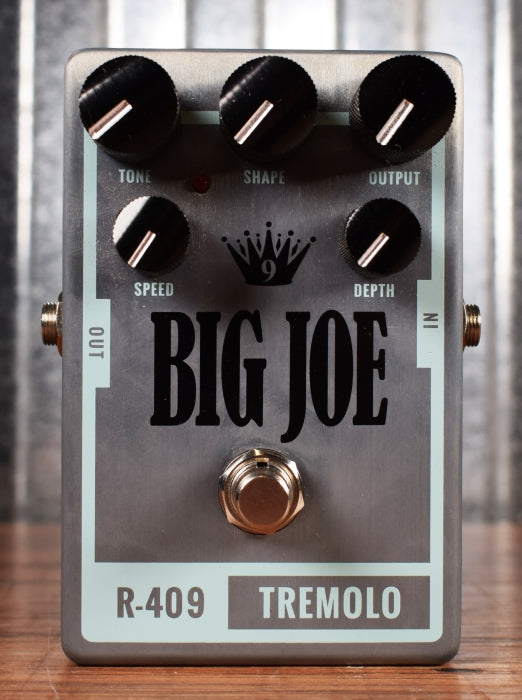

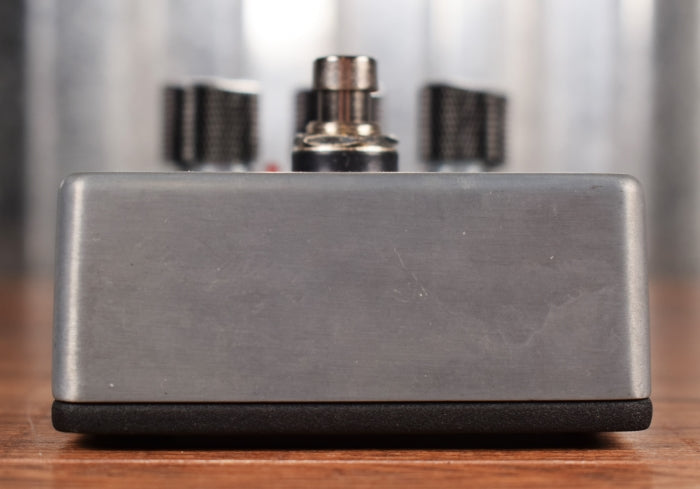

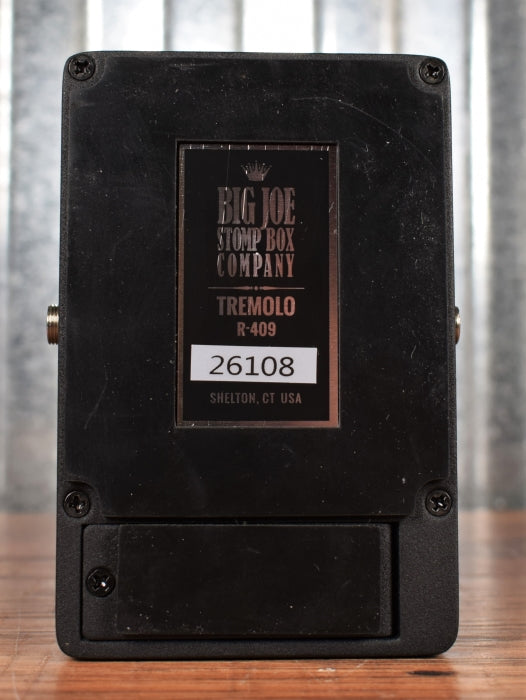

Big Joe Stomp Box Company Analog Tremolo R-409 Raw Series Guitar Effects Pedal Used

Big Joe Stomp Box Company Analog Tremolo R-409 Raw Series Guitar Effects Pedal Used

Used with wear associated with use. Minor cosmetic scratches/scuffs from handling and play. Noteworthy blemishes or issues will be described and pictured

R-409 TREMOLO (9V-18V)
The Big Joe Tremolo is a 9V-18V, 5-knob, all analog, true bypass, vactrol based optical tremolo. The Speed and Intensity knobs set and control modulation effect between 1Hz-10Hz. Shape control varies wave form from square to triangle so you can have new wave or vintage character; Vox to Fender and anywhere in between. Tone control allows you to alter the mood and “make-up” for potential tone loss associated with the tremolo action. Output control functions as a gain trim pot control and helps to “make-up”, recover or punch up the gain structure so there is no loss of tone or volume going through the pedal, and both can be enhanced by twisting a couple of knobs. A very unique and organic sounding tremolo pedal.

SPECIFICATIONS
Open tab
Tone
Shape
Output
Speed
Depth
True bypass
Status LED

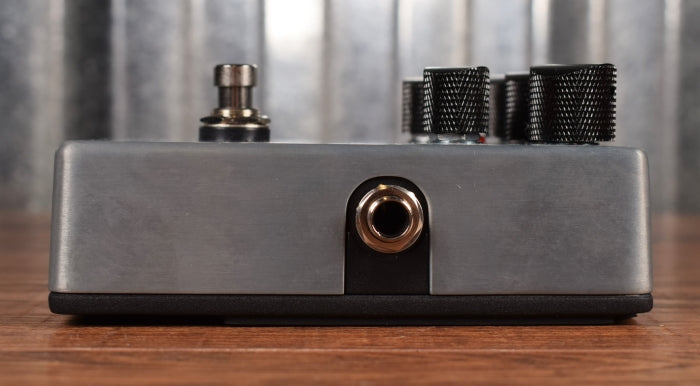

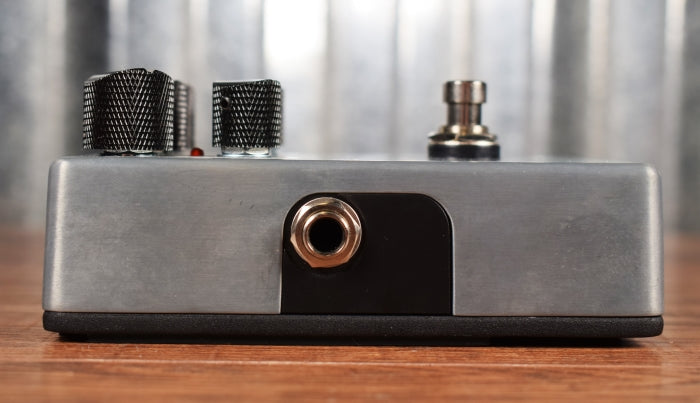

6.3 mm Mono jack input/ output
Power supply with 9V battery or 9VDC power supply (2.1 mm x 5.5 mm barrel connector, polarity (-) inside, not included)
12V and 18V support
Dimensions (L x W x H): 5.5" x 4" x 2.5"
Weight: 22oz
