CAD Audio WX3010 UHF Wireless Guitar Headset Lav Microphone System E19 E29 WXGTR

Details

CADLive is designed to outperform your expectations and deliver exceptional performance. Engineered to compliment the new generation of exceptional sound systems - The CADLive Series taps our Equitek studio heritage along with our live sound know-how in creating an impactful and easy to use line of mics.
The CADLIve 3000 series feature True Diversity operation to minimize multipath interference along with CADLockâ„¢ Automatic Tone Encoded Squelch to eliminate unauthorized transmissions in the signal path. Frequency agile design when partnered with ScanLinkâ„¢ technology will precisely scan, select and link to the optimum channel allow for an easy, flexible frequency plan.
The handheld and body pack transmitters also include SoftTouchâ„¢ multi-function On-Off/Mute switches. CADLive bodypack transmitters are equipped with CADToneâ„¢ circuitry ensuring accurate reproduction of Hi-z guitar and Lo-z mic inputs.
CADLive wireless features 10, 30, 50mW transmitter power adjustment and dynamic range up to 110dB. Receivers and transmitters are equipped with a high definition LCD display and full RF, AF, Battery Life, Mic Sensitivity and RF power metering.
Receivers are housed in an all-metal chassis and supplied with single/dual rack ears and a BNC relocation kit. Body pack systems include Equitek E19 earworn and E29 lavalier mics. Both systems are supplied with a heavy-duty carry case.
True Diversity to minimize multipath interference
CADLockâ„¢ Automatic Tone Encoded Squelch eliminates unauthorized interference
Frequency agile operation for maximum frequency plan flexibility
ScanLinkâ„¢ technology for instantaneous and automatic channel configuration
CADTone™ Body Pack input – Optimized Impedance interface - Hi-Z for Guitar and Lo-Z for mic
Metal construction Handheld Transmitter equipped with CADLive D90 capsule
High Contrast LCD displays on TX and RX
Transmitters feature 10, 30, 50mW power adjustment to aide in multiple system applications
Simultaneous usage of up to 15 systems per frequency band
Dynamic Range > 110dB
AA Batteries with up to 15 Hrs of battery life

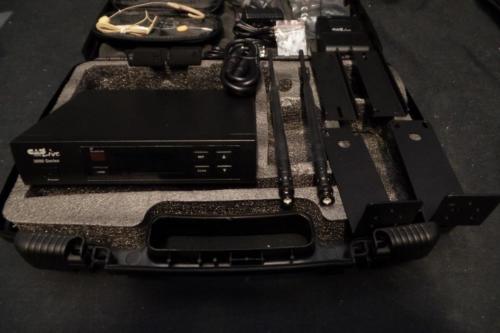

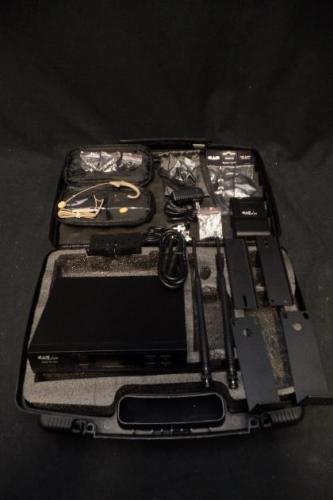

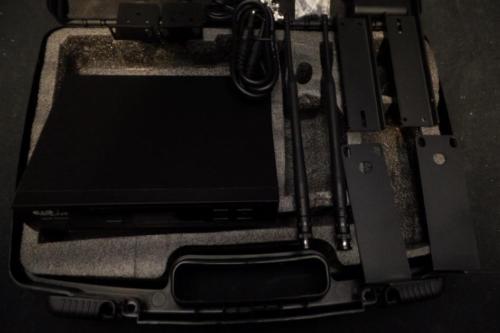

Systems ship with rack ears single/dual BNC relation kit and durable carry case

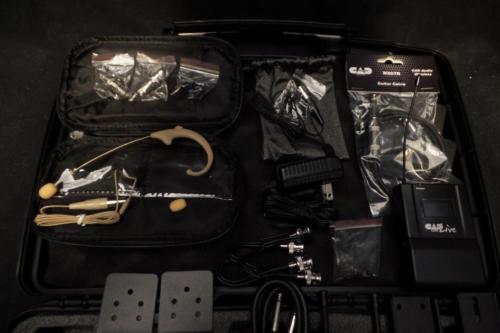

BodyPack systems include miniature E19 Earworn, E29 Lav, WXGTR guitar cable
XLR and ¼” outputs on receiver



3000 Series Specifications†Frequency Range…......................................................R Band 580 – 600MHz
............................................................................................S Band 655 – 679MHZ
Frequency Response ...................................................................40Hz – 15kHz
Dynamic Range ..........................................................................................>110dB
Transmitter power…..............................................Switchable 10, 30, 50mW
Battery Life ...........................................................................................Up to 15 Hrs
