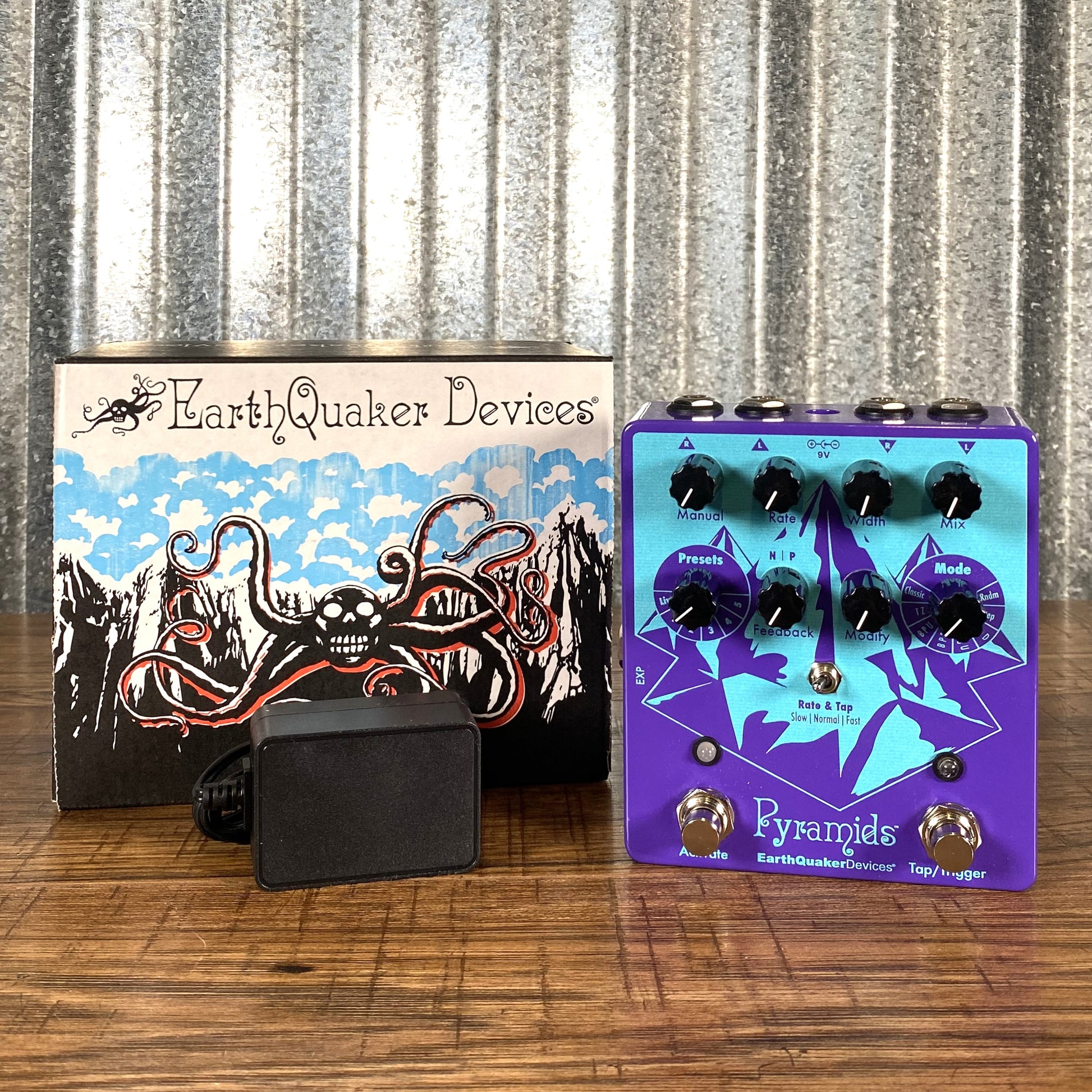

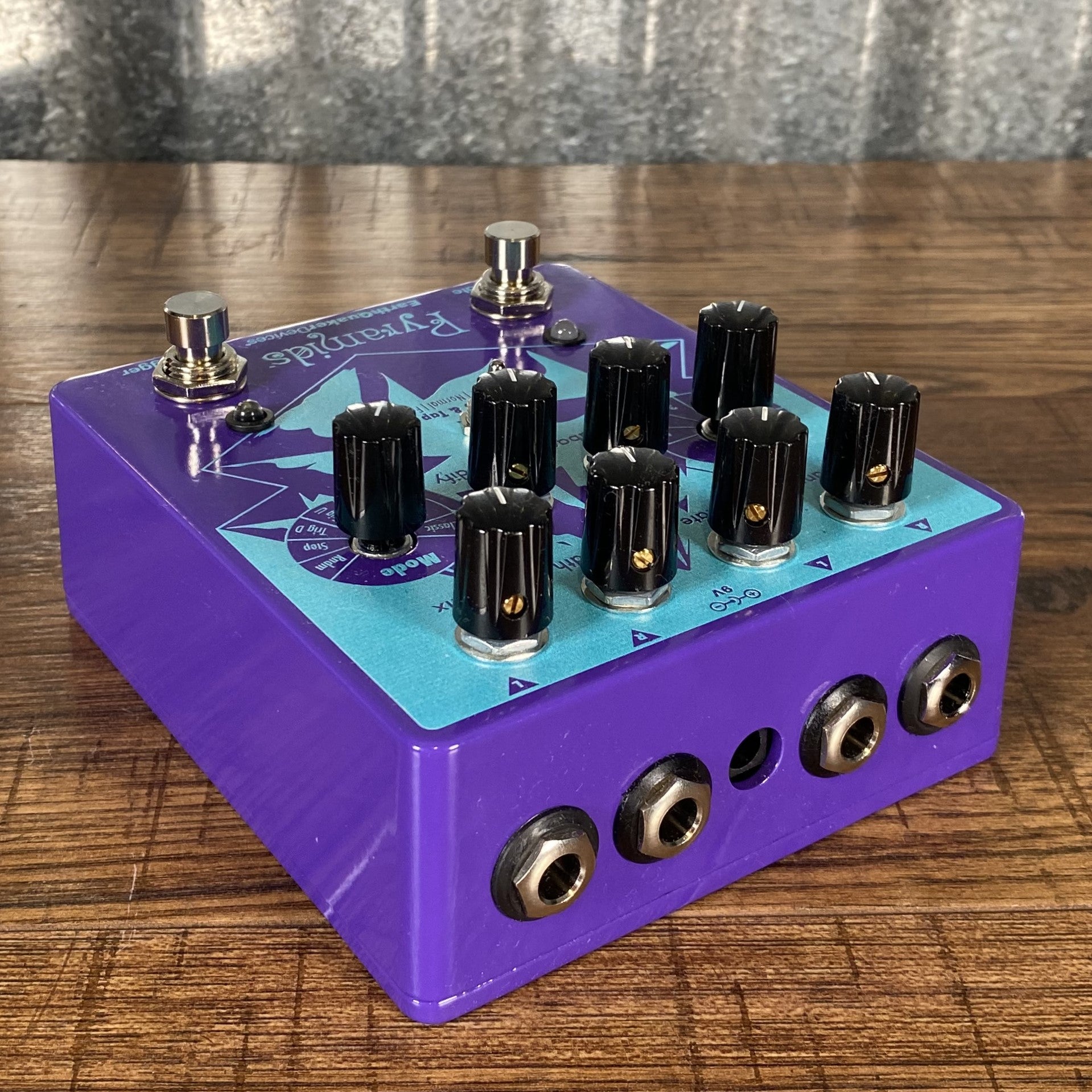

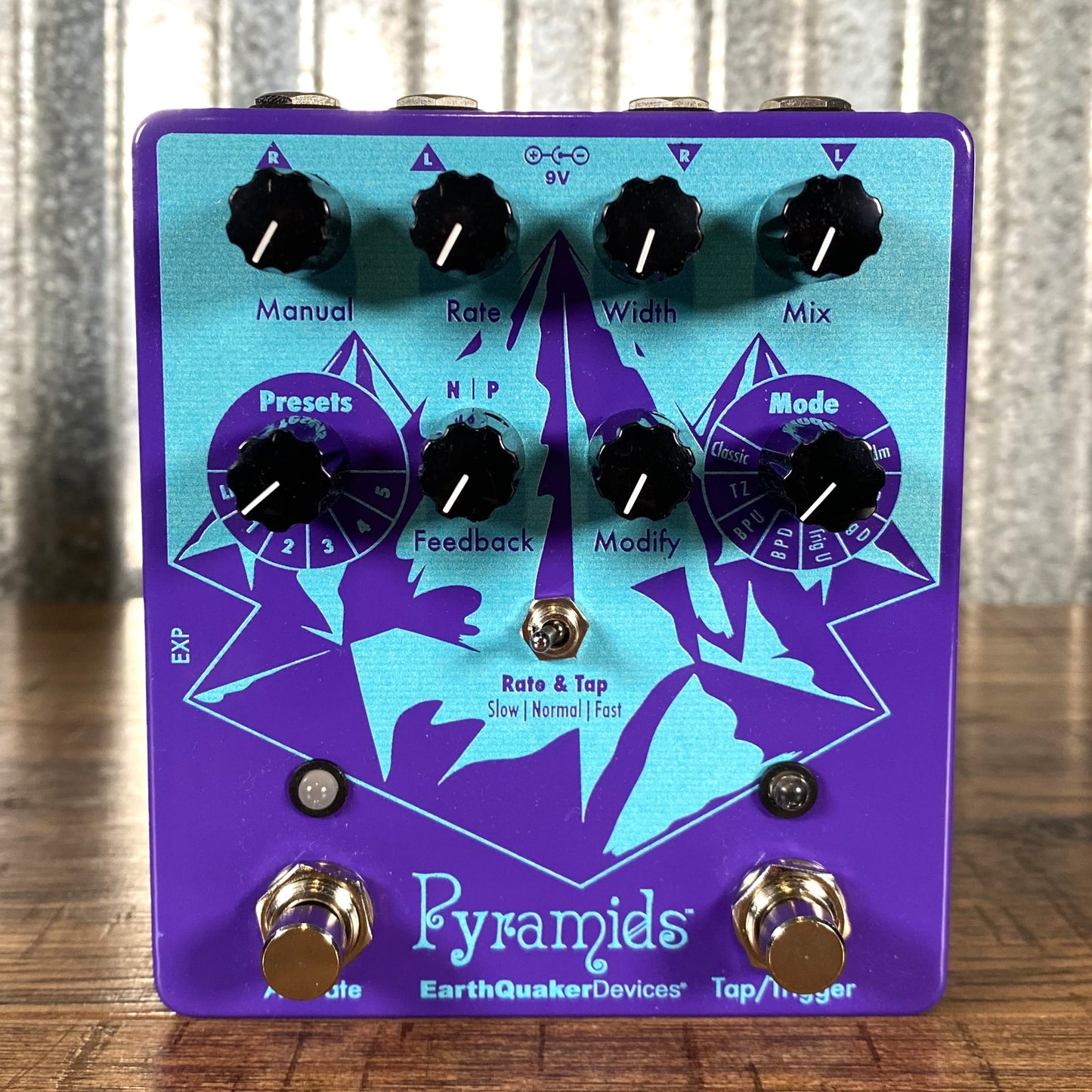

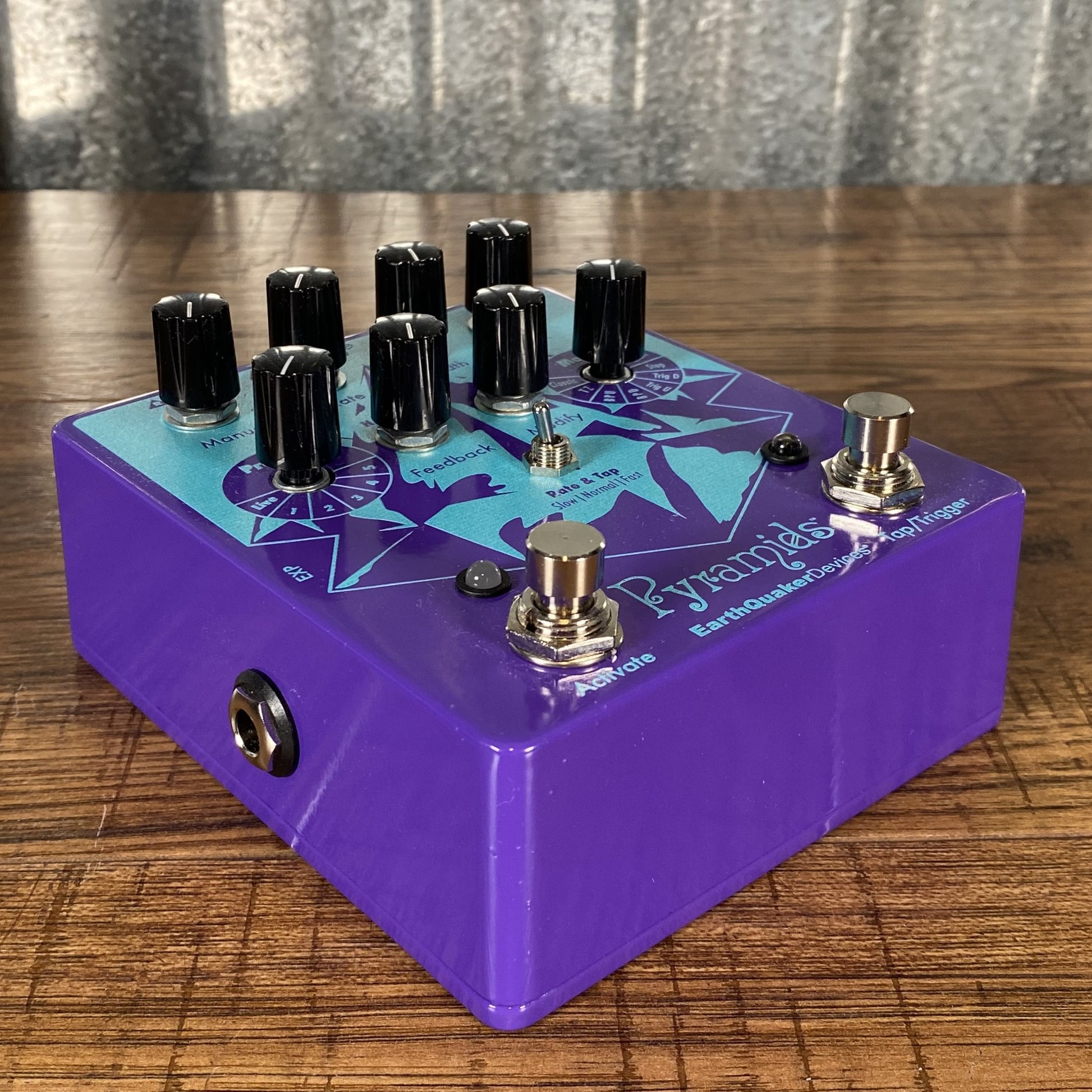

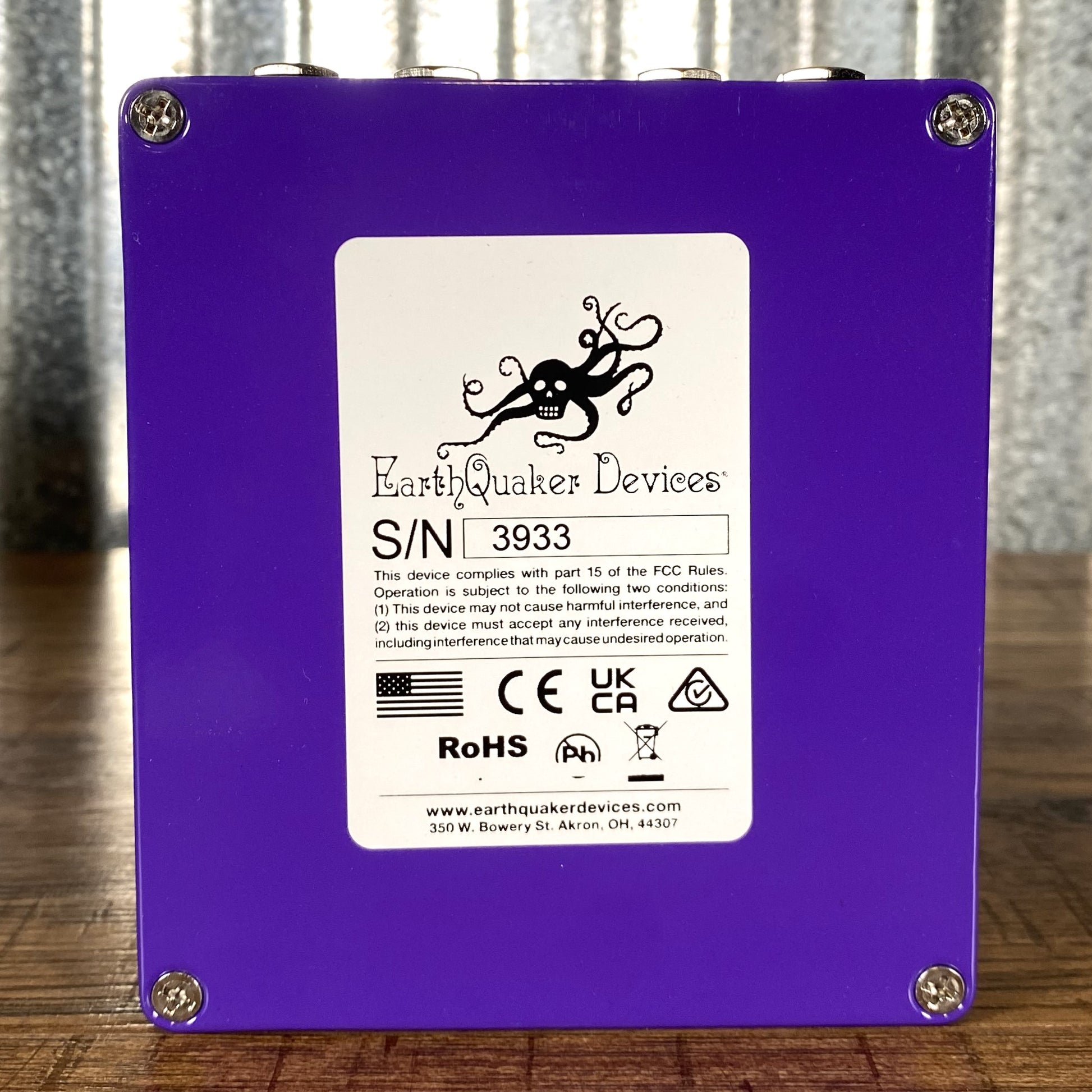

Earthquaker Devices EQD Pyramids Stereo Flanger Guitar Effect Pedal

Specialty Traders is an Authorized Earthquaker Devices Dealer!

Earthquaker Devices EQD Pyramids Stereo Flanger Guitar Effect Pedal

New

We strongly recommend using the proper power supply for any pedal. Daisy chain power supplies may not supply enough power when using multiple pedals or introduce noise into the chain. Consult the pedal manual when available for manufacturer recommended power specifications.

Pyramids is a Stereo Flanging Device with five presets, eight flanger modes, tap tempo, tap subdivision, a multifunction Modify control, positive and negative Feedback, and a variable Mix control, which is something you don’t see on a flanger every day.

Built upon the same proprietary DSP architecture as the Avalanche Run™, Pyramids delivers convincing jet-engine roar, authentic through-zero tape-style warble, infinite barber pole sweeps, flexible I/O routing, and the ability to re-trigger the LFO cycle via footswitch opens up a fourth dimension of rhythmic possibilities that’s sure to tickle your third ear.

Measures: 4.65″ x 4.15″ x 2.25″ with knobs
Current Draw: 460mA
Input Impedance: 1M Ohm
Output Impedance: 100 Ohm
S/N Ratio: 115dB typical
24-bit 96kHz A/D & D/A converters
All analog dry signal path
All digital wet signal path with 20Hz – 20kHz frequency response

Flexi-Switching
This device features Flexi-Switch™ Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
For best results, please use a 9v center-negative 1-amp DC power supply.

To use with multiple output transformer-balanced isolated pedal-specific power supplies,Pyramids’ may be powered from two outlets combined using a current-doubling cable. DO NOT USE A VOLTAGE-DOUBLING CABLE BECAUSE THAT WILL SEND 18V TO PYRAMIDS AND FRY IT LIKE AN OVEREASY EGG AT A GREAZY SPOON DINER.

PCBs populated by a combination of artificial and human intelligence in the Akron, Ohio of America.

Each and every Pyramids is completely assembled, wired, and tested by total human beans in the Great Sphinx of Akron, Ohio, which, coincidentally, looks exactly like the cover of Iron Maiden’s Powerslave.
