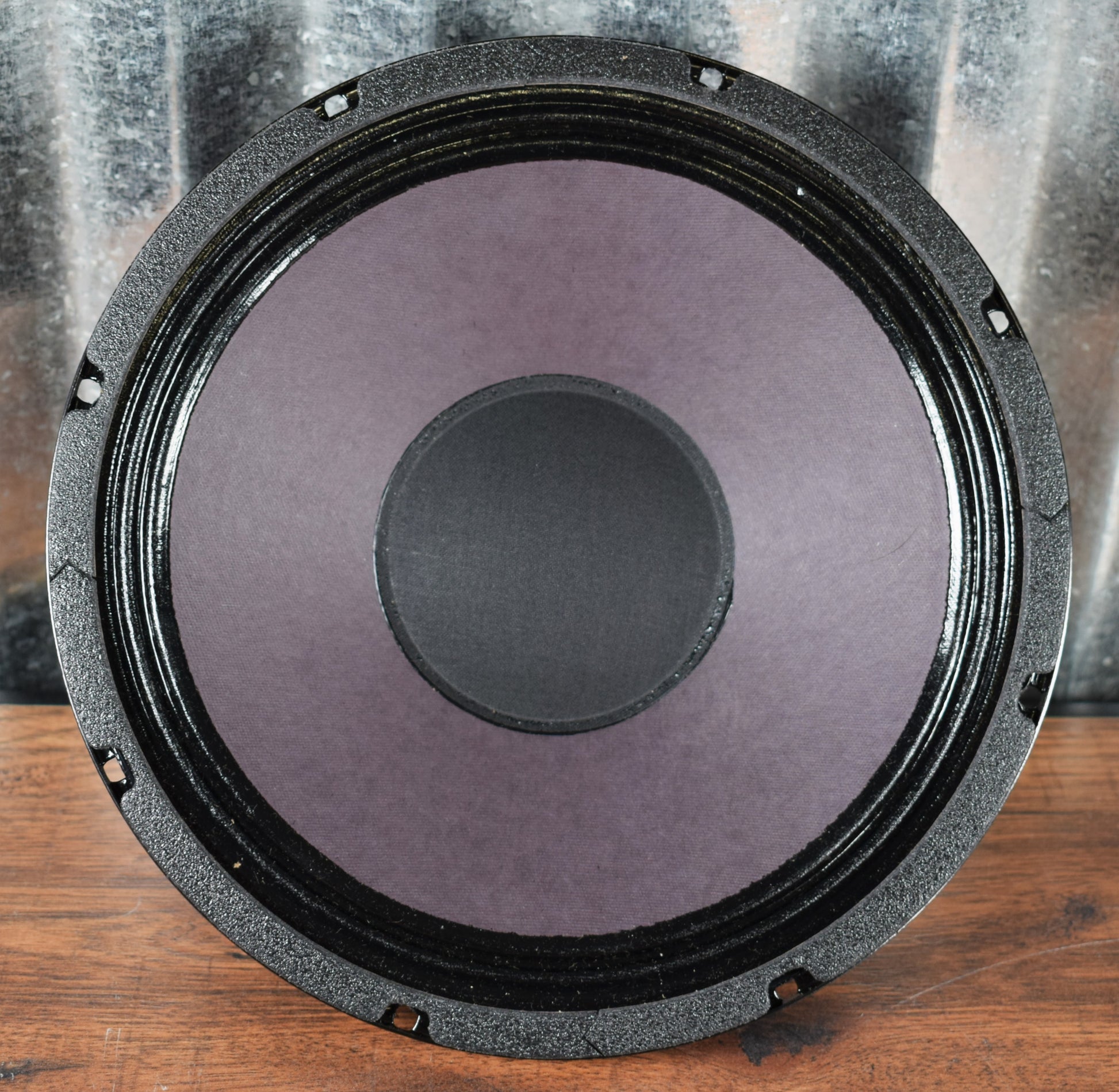

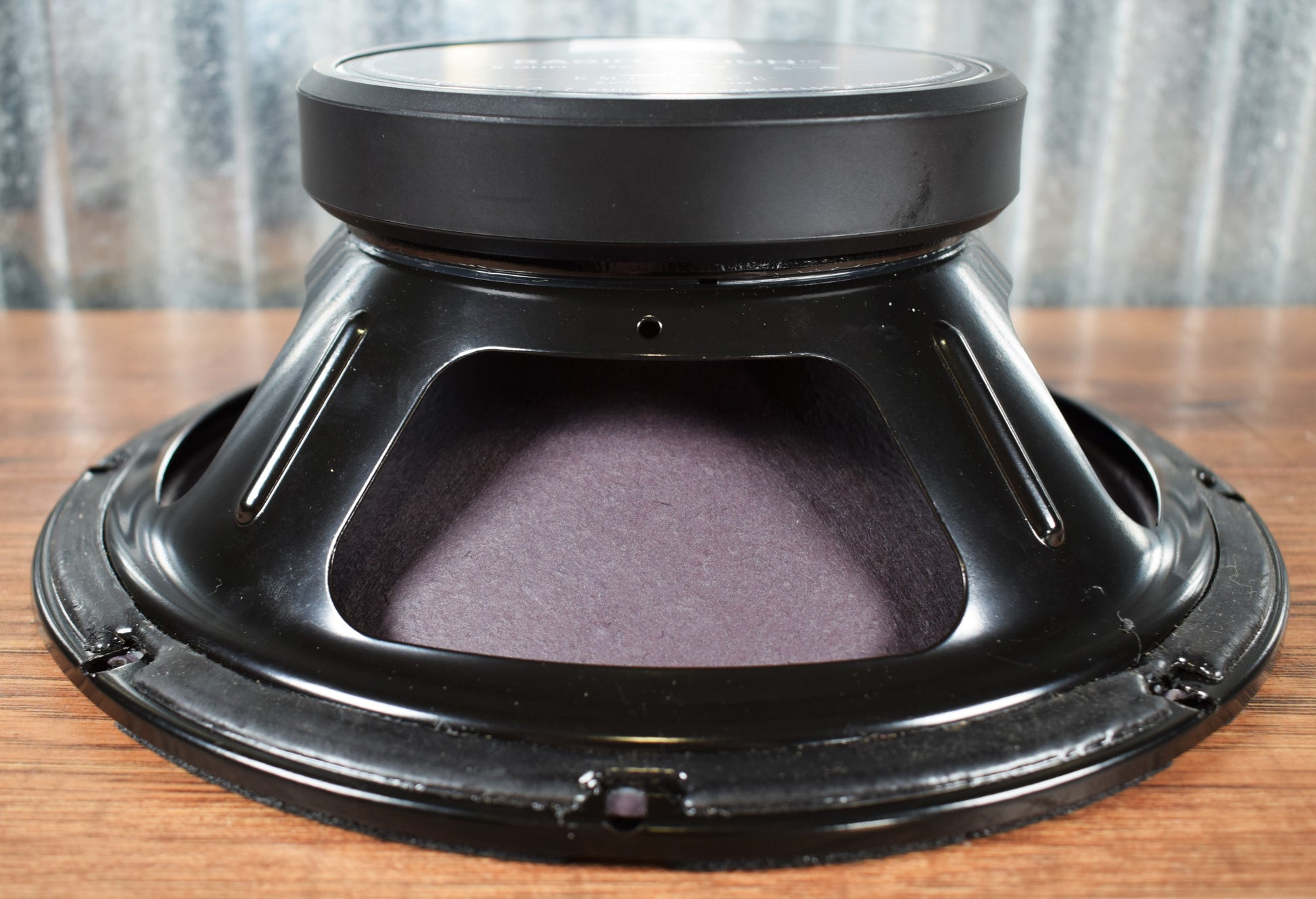

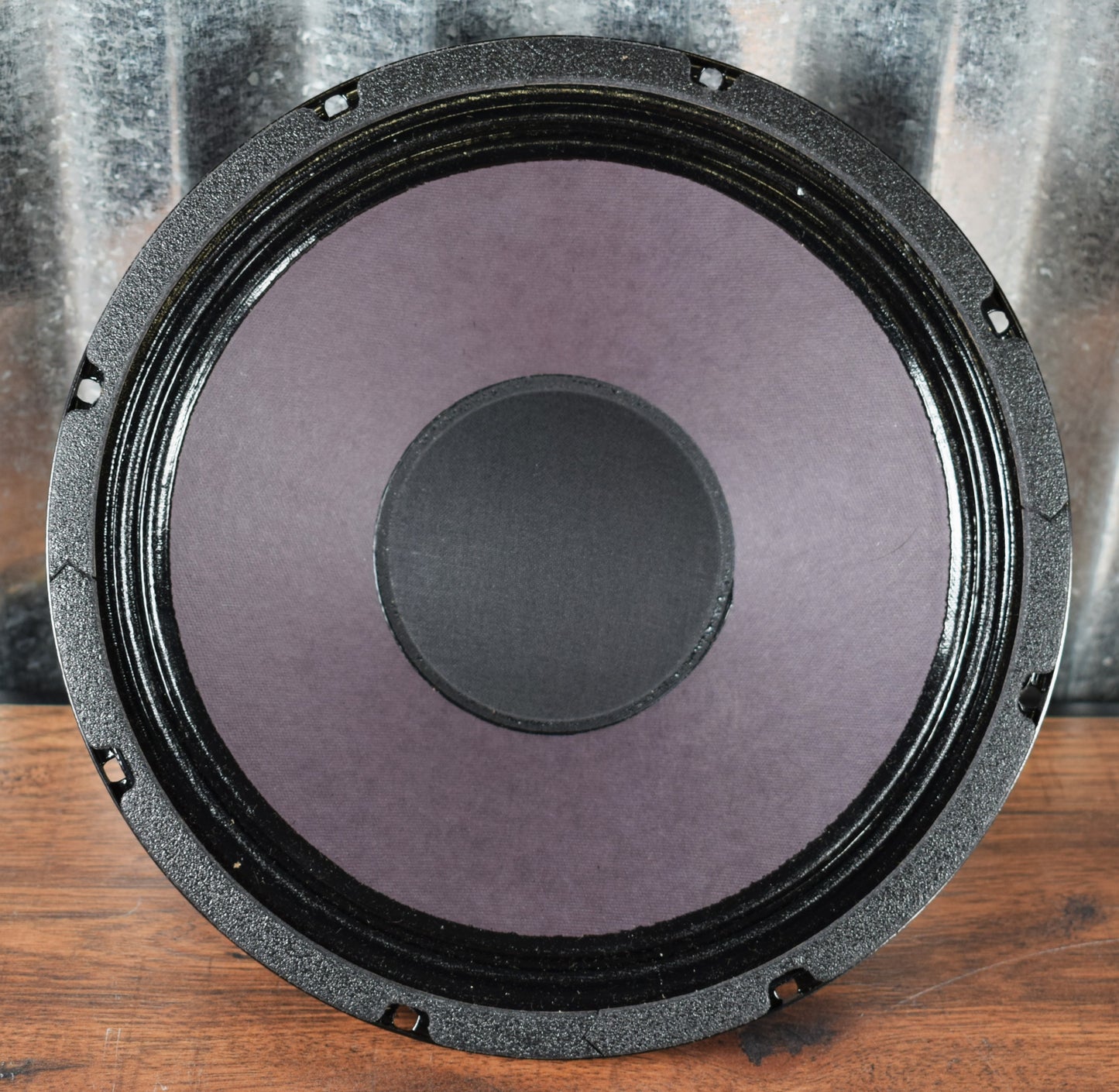

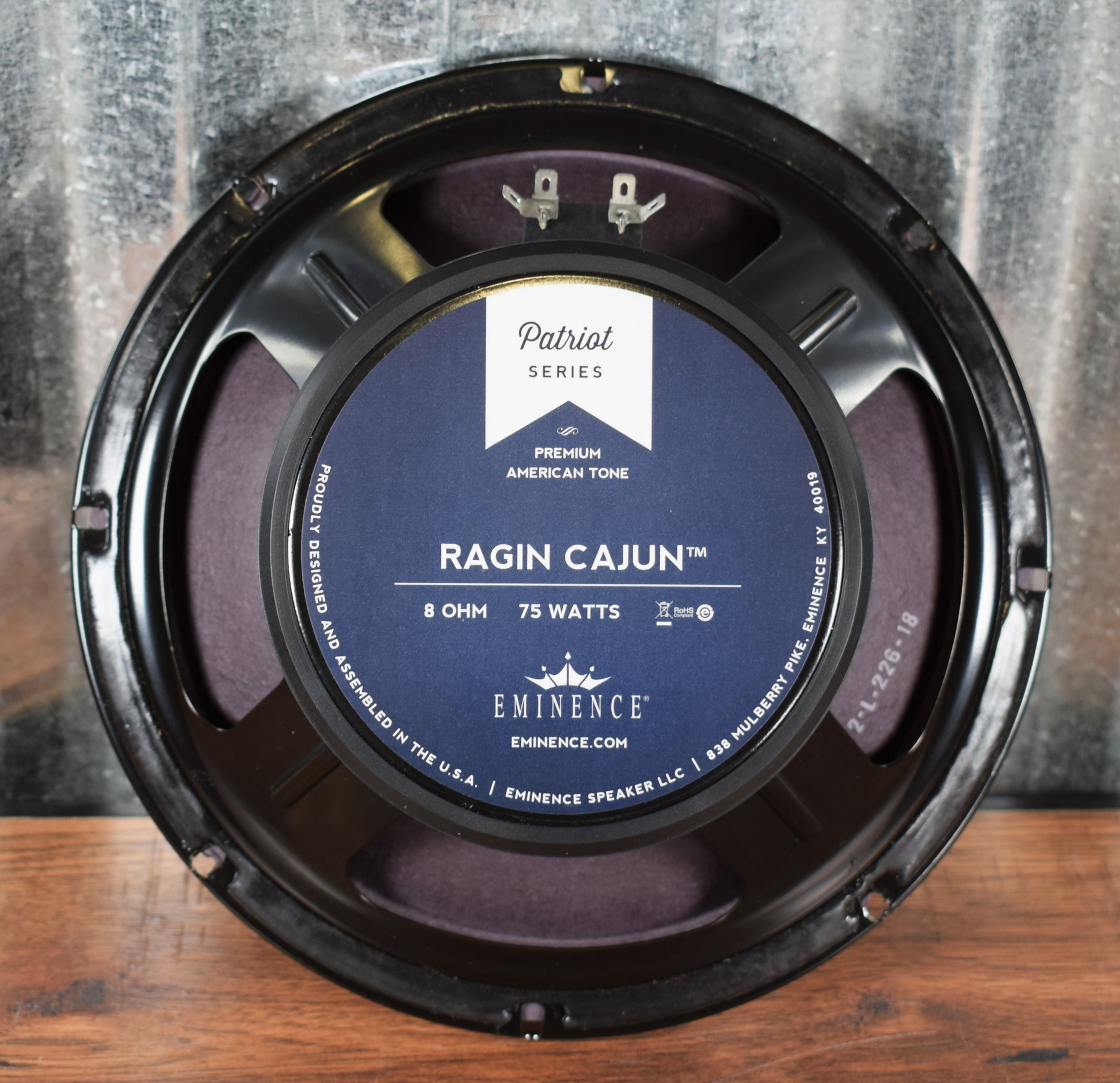

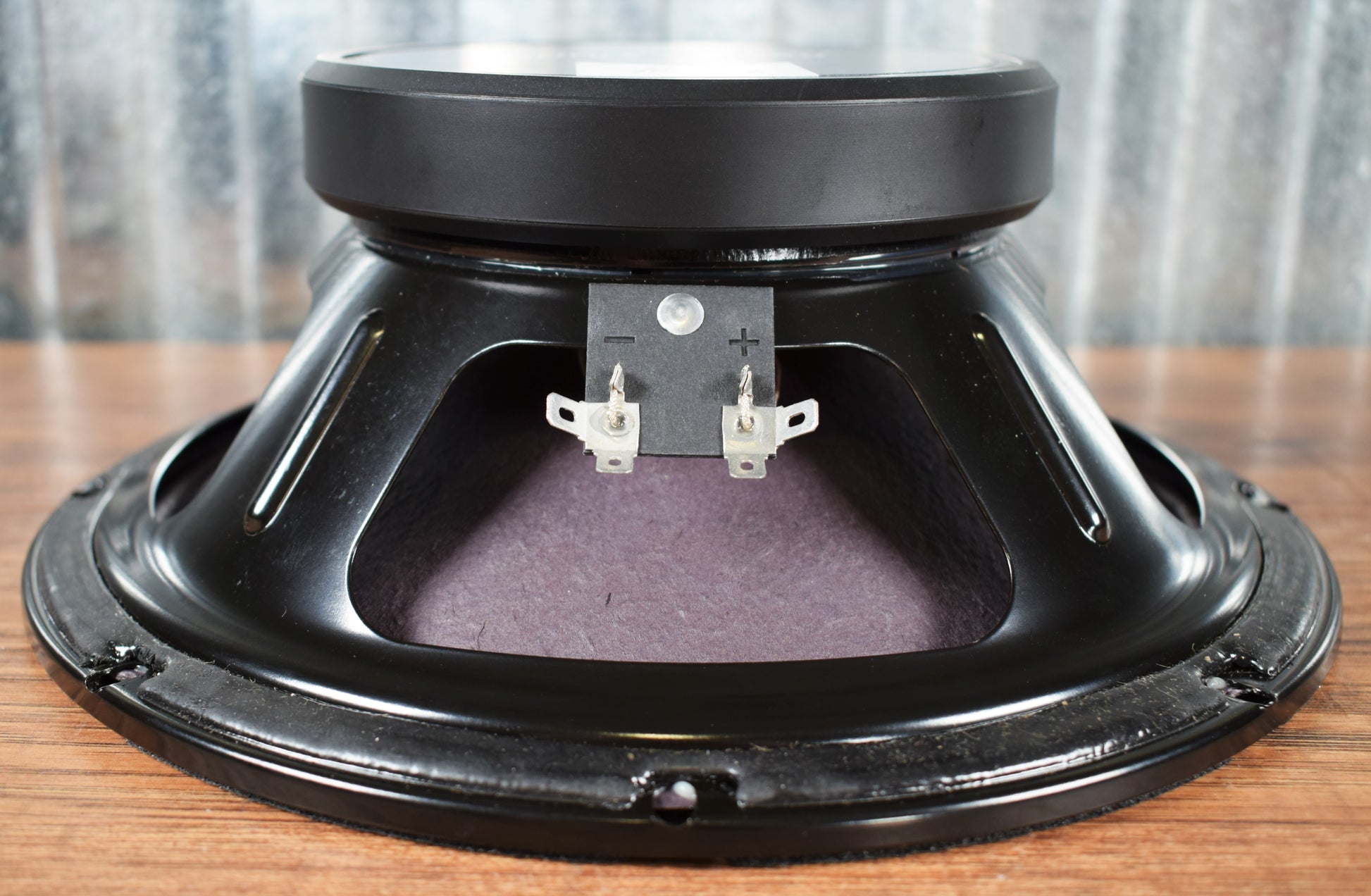

Eminence Patriot Series Ragin Cajun 10" 75 Watt 8 Ohm Guitar Amplifier Speaker Used

Eminence Patriot Series Ragin Cajun 10" 75 Watt 8 Ohm Guitar Amplifier Speaker Used

Used with wear associated with use. Minor cosmetic scratches/scuffs from handling and play. Noteworthy blemishes or issues will be described and pictured. Works as it should.

From Eminence:

The Eminence Ragin Cajun guitar speaker puts you in control to be heard loud and clear. Very loud, touch sensitive and responsive with nice bell sounding top end and a little bite.

SPECIFICATIONS:

Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 O
Power Rating*
Program Power N/A
Watts 75 W
Resonance 84 Hz
Usable Frequency Range 80 Hz - 5 kHz
Sensitivity* 100.5 dB
Magnet Weight 30 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 1.5", 38 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs) 84 Hz
DC Resistance (Re) 7.01 O
Coil Inductance (Le) 0.38m H
Mechanical Q (Qms) 11.42
Electromagnetic Q (Qes) 0.54
Total Q (Qts) 0.51
Compliance Equivalent Volume (Vas) 34.1 liters / 1.2 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 17.6 cc
Mechanical Compliance of Suspension (Cms) 0.18 mm/N
BL Product (BL) 11.8 T-M
Diaphragm Mass Inc. Airload (MMs) 20 grams
Efficiency Bandwidth Product (EBP) 156
Maximum Linear Excursion (Xmax) 0.48 mm
Surface Area of Cone (Sd) 366.1 cm2
Maximum Mechanical Limit (Xlim) N/A

MOUNTING INFORMATION

Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.039 cu.ft. / 1.1 liters
Overall Diameter 10.11", 256.8 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.23", 5.8mm
Mounting Holes B.C.D. 9.6", 243.8mm
Depth 3.8", 96.5 mm
Net Weight 6.4 lbs, 2.9 kg
Shipping Weight 8.2 lbs, 3.72 kgs

MATERIALS OF CONSTRUCTION

Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Non-vented core
Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Zurette dust cap
