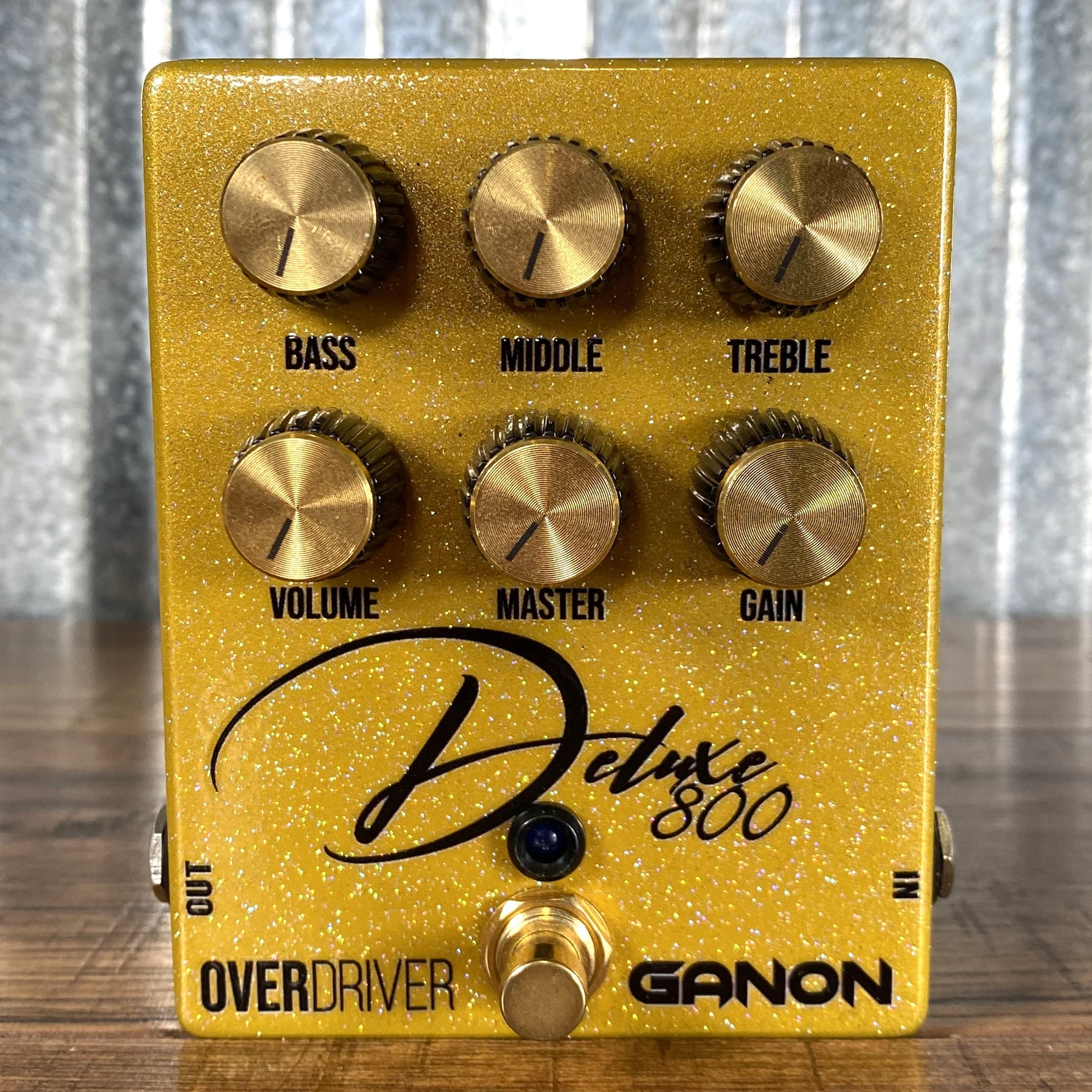

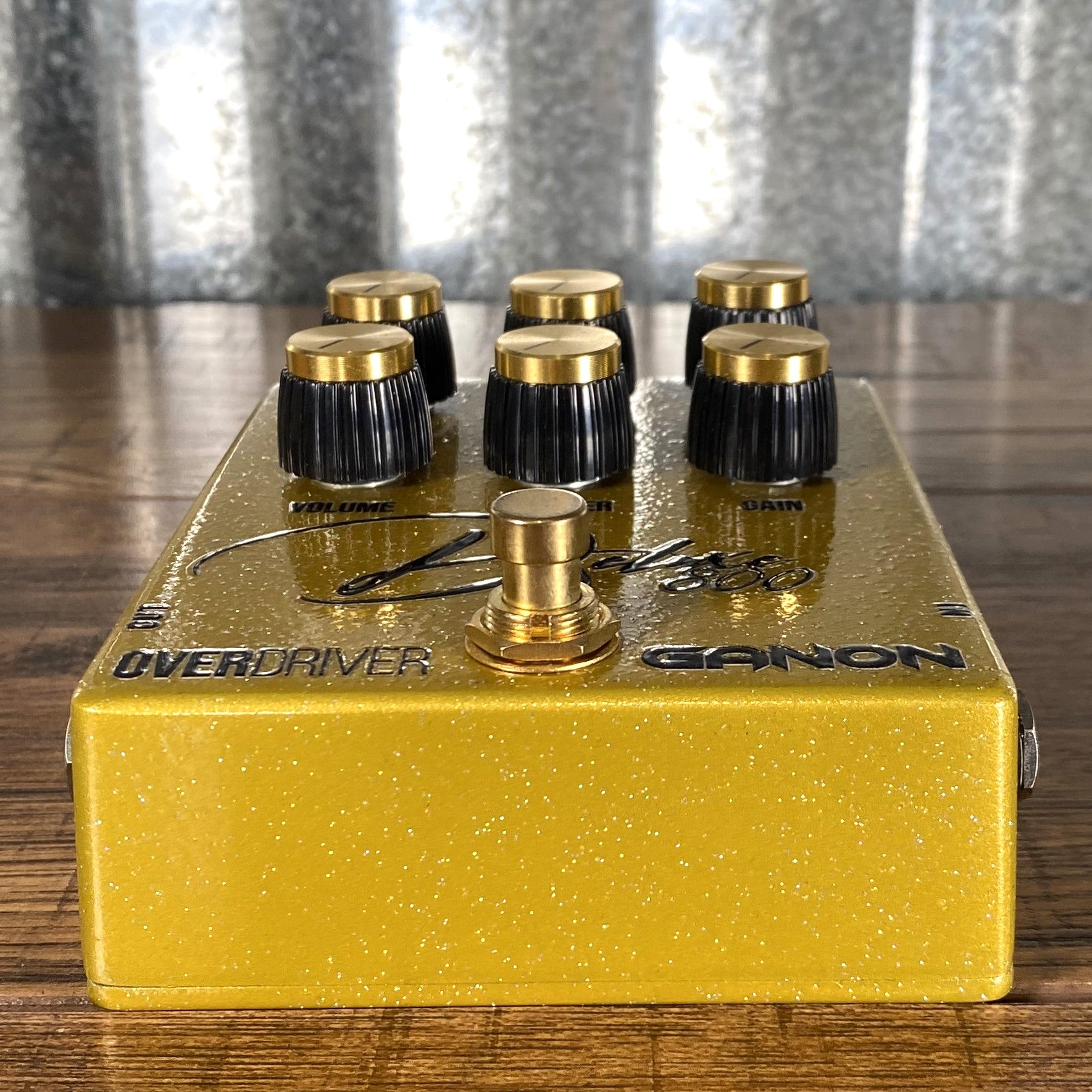

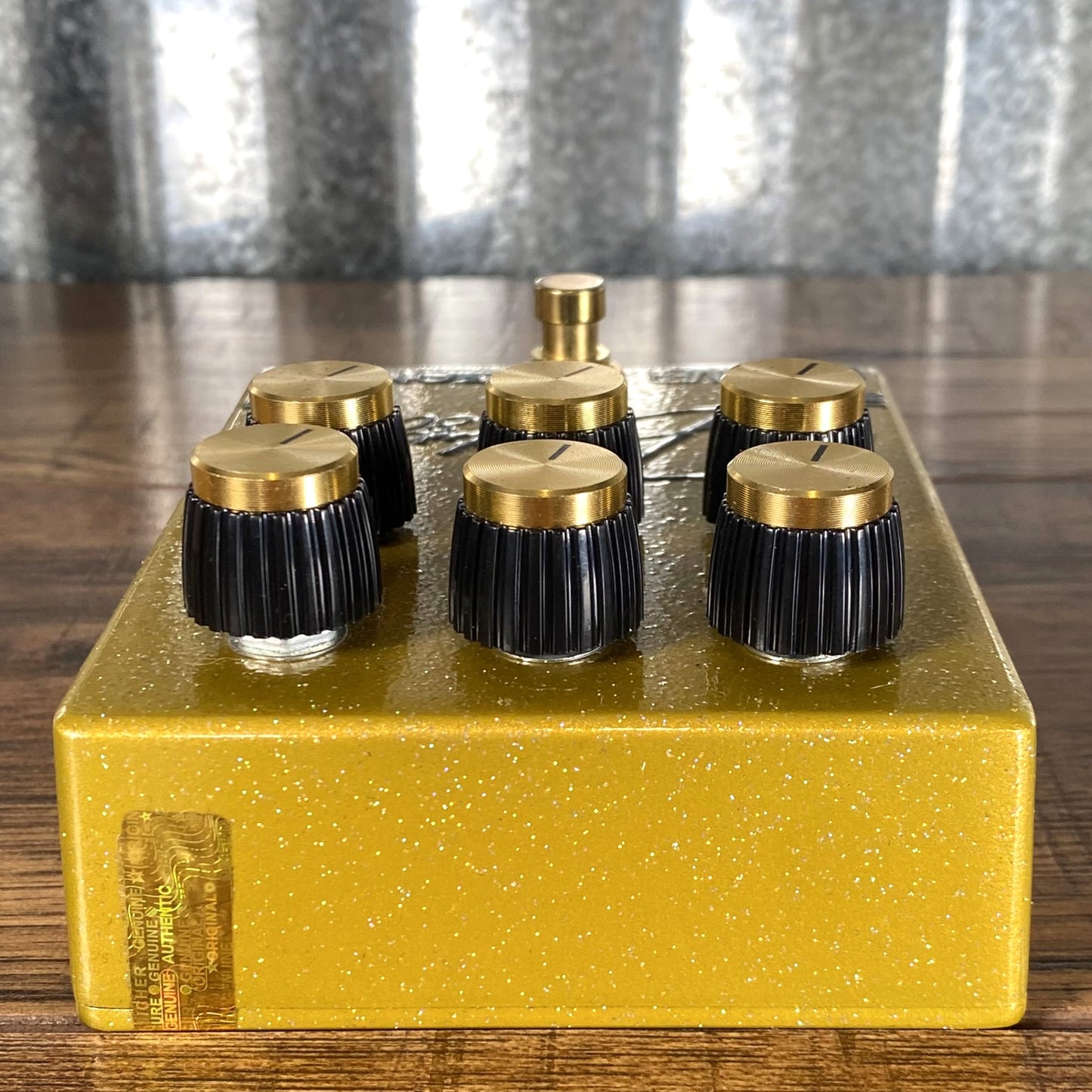

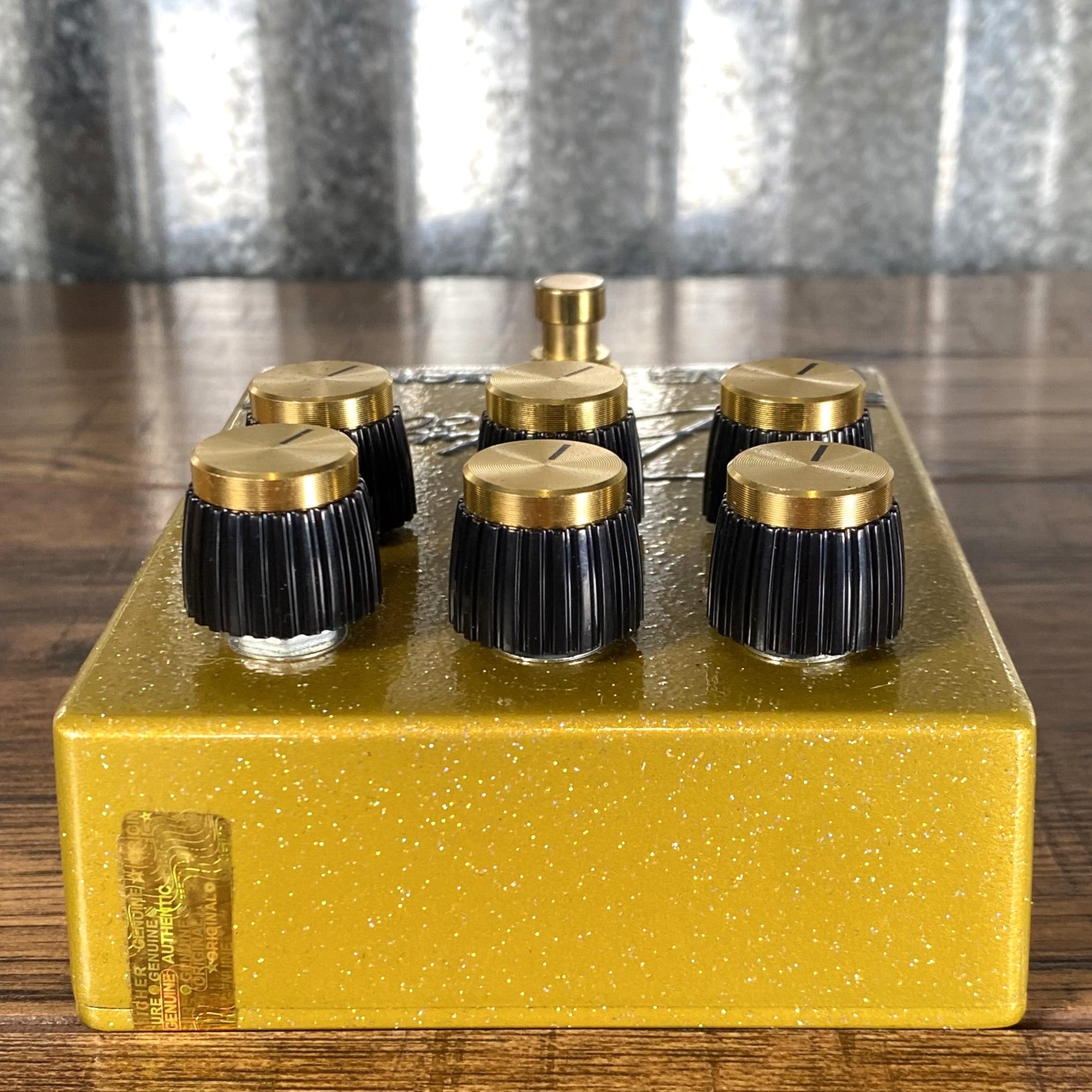

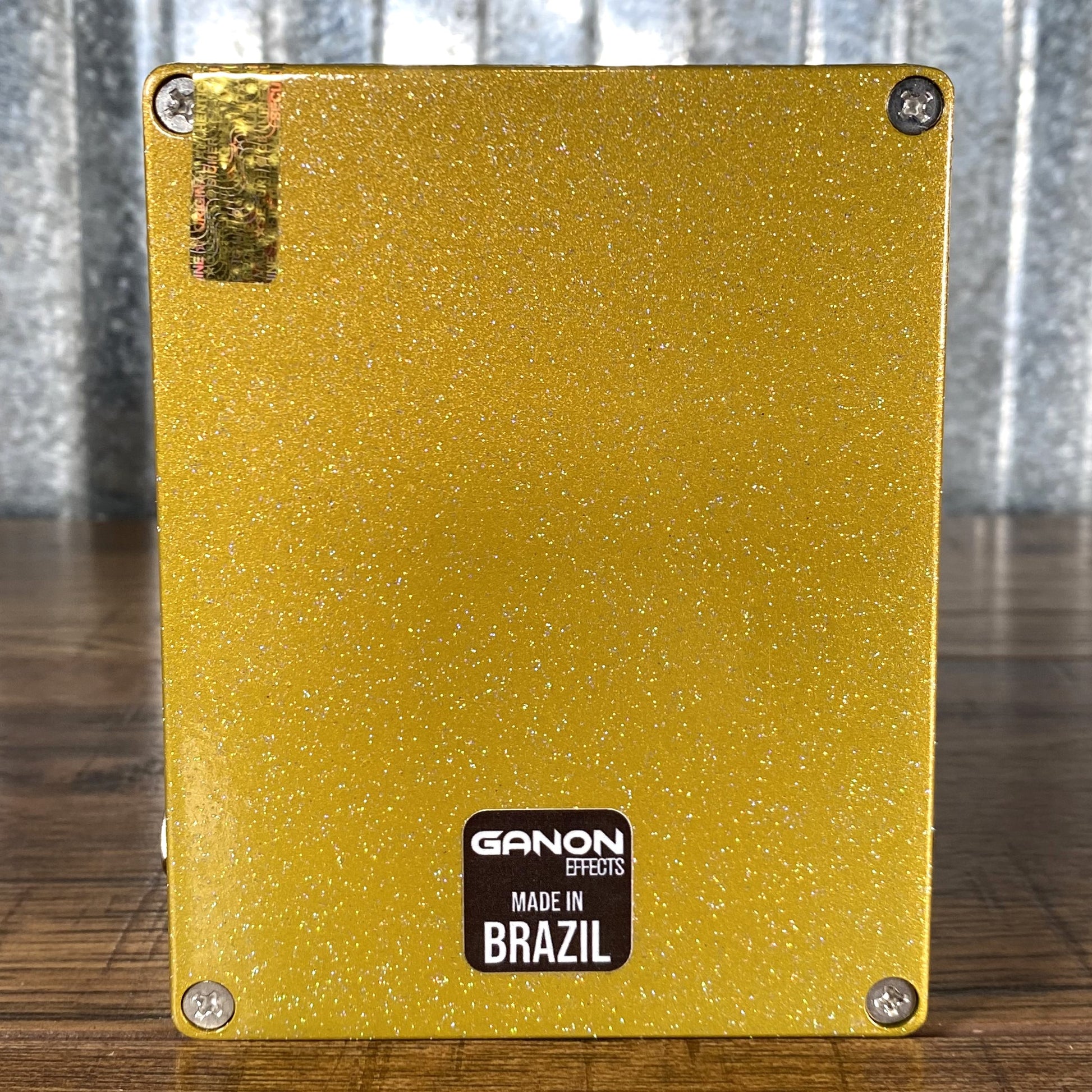

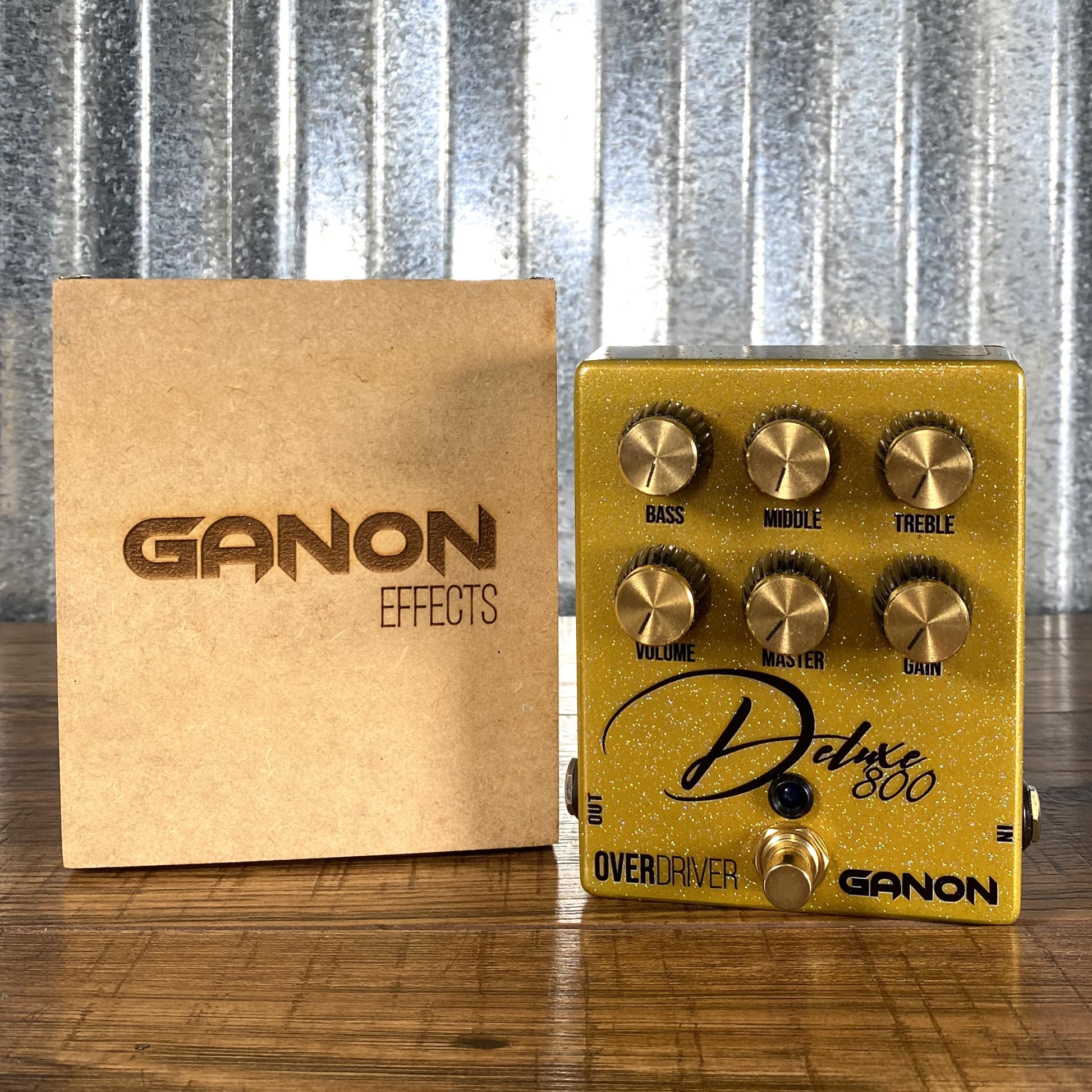

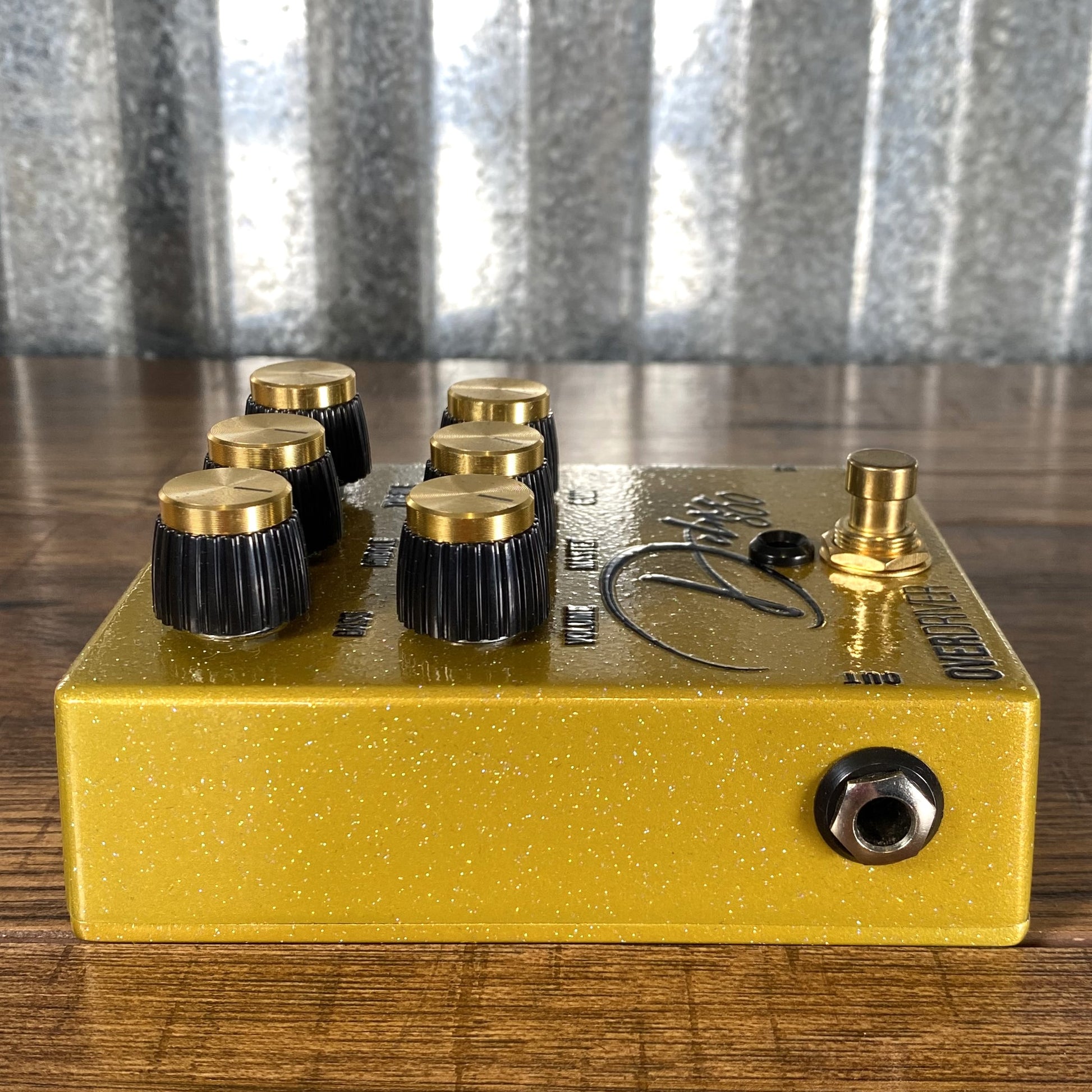

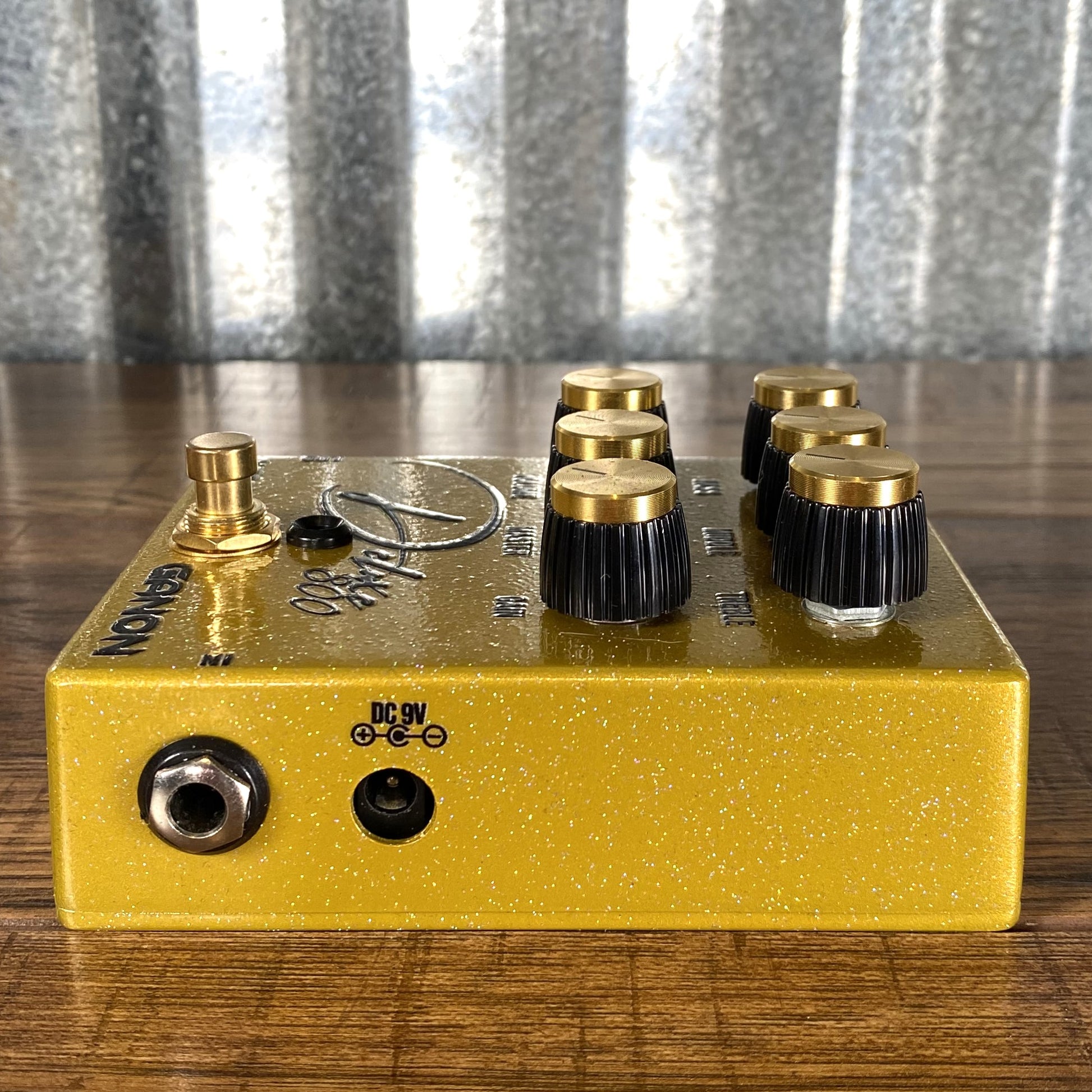

Ganon Effects Deluxe 800 JCM Overdrive Guitar Effect Pedal Used

Ganon Effects Deluxe 800 JCM Overdrive Guitar Effect Pedal Used

Used with wear associated with use. Minor cosmetic scratches/scuffs from handling and play. Any noteworthy blemishes or issues will be described and pictured. Works as it should.

We strongly recommend using the proper power supply for any pedal. Daisy chain power supplies may not supply enough power when using multiple pedals or introduce noise into the chain. Consult the pedal manual when available for manufacturer recommended power specifications.

Based on the iconic Marshall JCM800 amplifier, this pedal seeks to reproduce the fantastic sound of that amplifier with discrete solid-state circuits, using JFET transistors. With six cascaded stages it allows you to deliver high gain distortion, very similar to the equipment from which it is inspired. It has gain controls (two steps), three-way tone, with the same controllability as the original amplifier and overall volume.

Each pedal is carefully hand-configured for maximum performance and tested by the founders of GANON, so it is not a mass production pedal and there will only be a few per month available on the market, a true “boutique pedal”.

SPECIFICATIONS:

Input impedance: 1M ohm.
Output impedance: <100K ohm.
Power consumption: 9VDC / 80mA.
AC adapter (not included): 9VDC regulated, 2.1mm coaxial plug - center negative.
True Bypass: Yes.
POLARITY REVERSE PROTECTION: Yes
POTENTIOMETERS: Alpha
Weight: 335 g
Size: 119mm (D) x 106mm (W) x 54mm (H)
