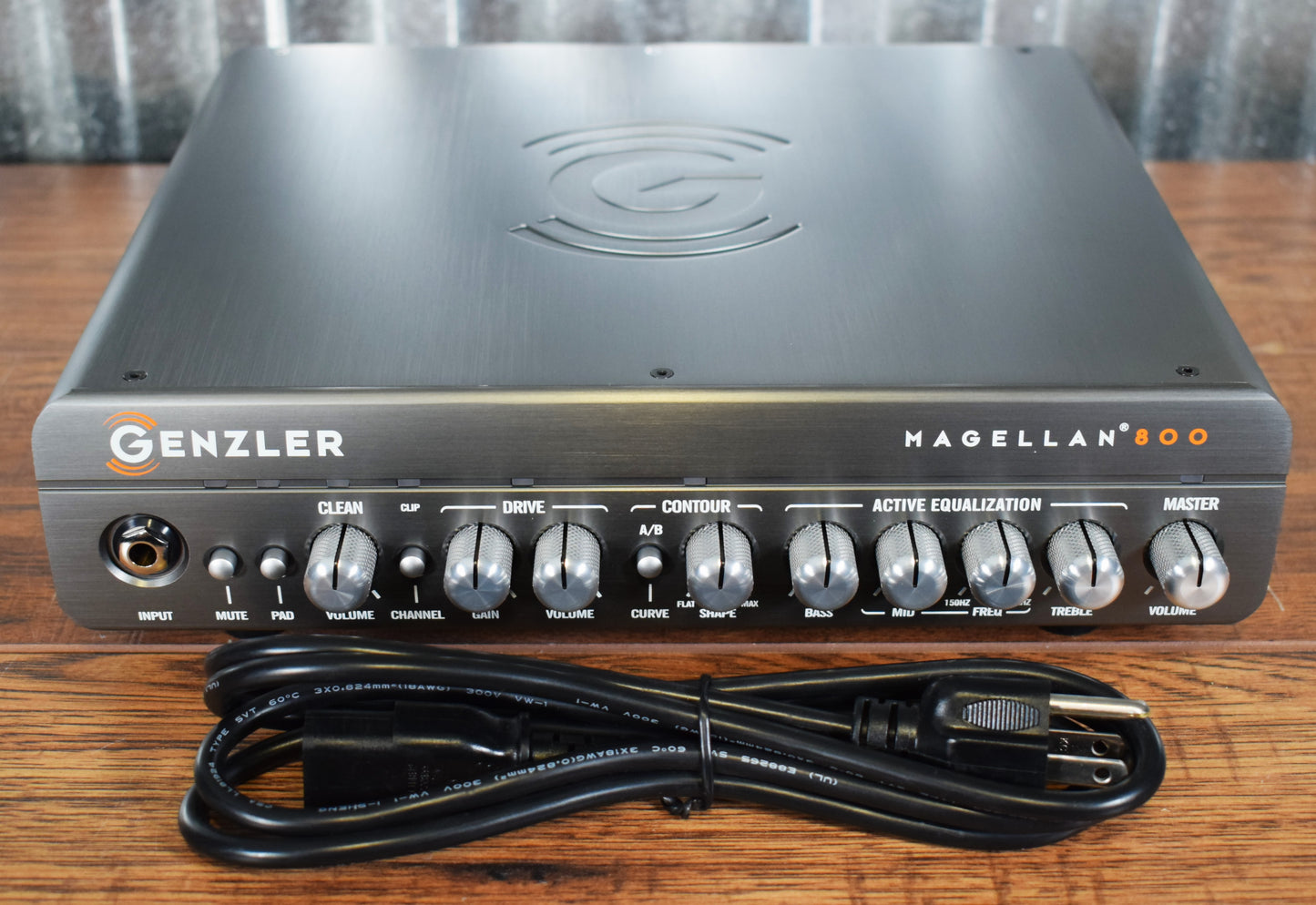

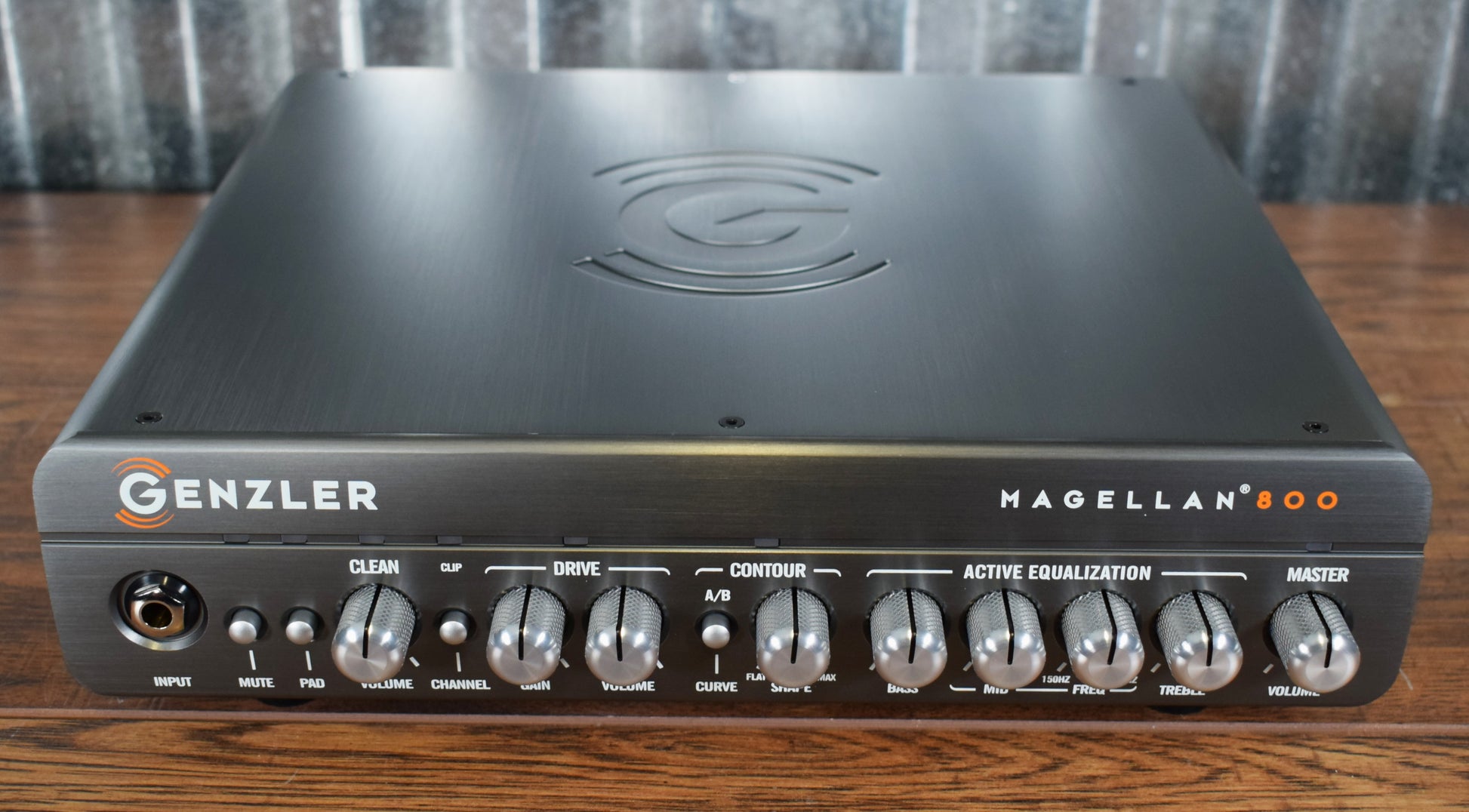

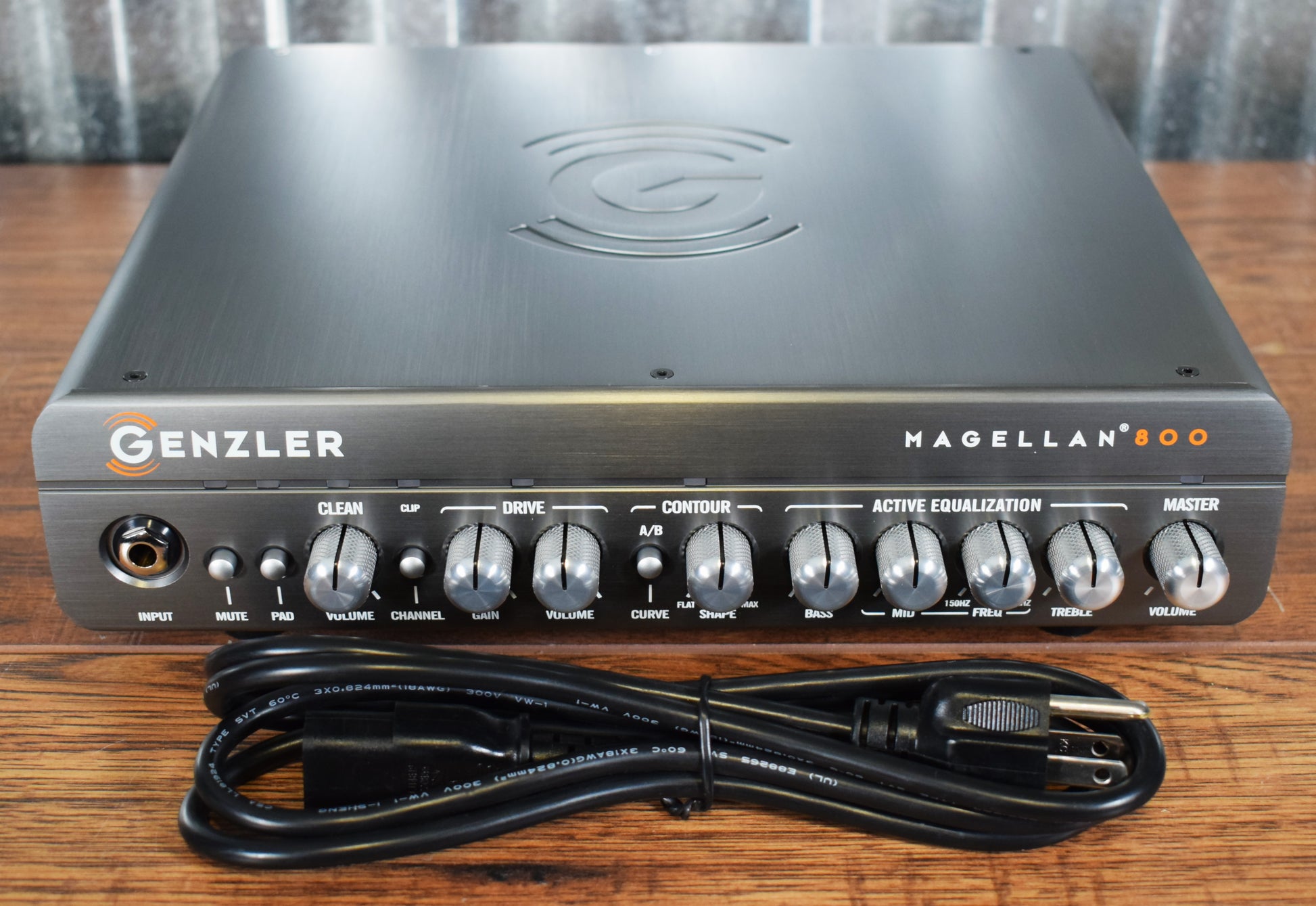

Genzler MG-800 Magellan 800 Watt 2 Channel Bass Amplifier Head

Specialty Traders is an Authorized Genzler Amplification Dealer!

Genzler MG-800 Magellan 800 Watt 2 Channel Bass Amplifier Head

New

Inspired by the courage and spirit of exploration, the MAGELLAN® 800 represents the pinnacle in the next generation in lightweight, high-output, versatile, bass amplification. With our years of research, design and manufacturing expertise, we’ve developed this model utilizing stringent design parameters for form, function, fit and finish. The result is an 800 watt professional high-powered tour-class bass guitar amplifier weighing only 6.25 lbs!

This is exactly what players have come to expect from the GENZLER® design team — performance, versatility and reliability. From natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures with “weighted feel to the notes”, the MG-800 provides the tonal palette needed to cover all of the bassist’s amplifier requirements.

The expanded feature set and output power level make this amplifier an essential tool on the global stage, and with its universal power supply, the MAGELLAN® 800 can be used with any voltage around the world without modification.

The Dual Channel Design Features:
Clean Channel –
Pristine and Articulate
Drive Channel –
Voiced for a More Driven Tonal Signature and Harmonic Texture
Dual-Curve Variable Contour Circuitry
Curve A — Classic to Modern — Mid Scoop Curve
Curve B — Thicker to Vintage — Low-Mid Bump w/Tapered Top End
Flat Position — Full Bypass
Active 3 Band EQ w/Parametric Mid Control
Signal Mute Switch
Input Pad Switch
Thermal Sensing Variable Speed Fan Cooling
All Brushed, Aircraft Grade Aluminum Chassis with Extruded Aluminum Front Panel
Output: 400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms
2.67 Ohms Min. Total Load
Dimensions: 11.25”W X 10.5”D X 3”H
Weight: 6.25 Lbs.

Specifications
OVERVIEW / SPECIFICATIONS:
PREAMP – dual channel, all solid state analog design with integrated soft clip circuitry.
INPUT– 1Meg ohm input impedance
INPUT PAD SWITCH – attenuation of -8.5dB
CLEAN CHANNEL OVERVIEW – Voiced to provide natural, pristine, transparent reproduction of the bass instrument.
DRIVE CHANNEL OVERVIEW – Voiced to provide a more “driven” tonal signature and harmonic content along with a softer top end and more relaxed low frequency response.
CONTOUR — continuously variable control of 2 vastly different response curves. In either CURVE position, when the SHAPE control is all the way off (CCW) the response curve is completely FLAT.
Curve A (Blue) — a variable pre-shaped curve that boosts lows and highs while simultaneously cutting mids. The slopes are fairly gentle which keep the tone shaping very musical. This curve covers a wide range of sounds from flat to classic to modern depending on the position of the SHAPE control.
Curve B (Amber) — a variable pre-shaped curve with attenuated high mids and highs, a low mid bump, and a slight roll-off of the lowest bass frequencies. Again, the slopes are fairly gentle which keep the tone shaping very musical. This curve is intended to provide sounds in the range of vintage amps and vintage cabinets that do not have tweeters.
ACTIVE EQUALIZATION – The MAGELLAN™ 800 contains an active 3 band equalizer with a sweepable parametric mid-range frequency control.
Bass +/- 15dB boost/cut shelving curve with a corner frequency of 75Hz
Mid +/- 15dB boost/cut of the variable mid frequency selected
Freq Variable mid frequency from 150Hz-3kHz
Treble +/- 15dB boost/cut shelving curve with a corner frequency of 6kHz
POWER AMP – The MAGELLAN™ 800 uses a state of the art, class D power amplifier design and a high frequency auto-sensing universal switch-mode power supply (SMPS) to achieve unprecedented high performance and lightweight packaging. There are no Voltage Switches to change or jumpers to move. This SMPS senses the line voltage from 100-240 Volts and automatically configures itself.

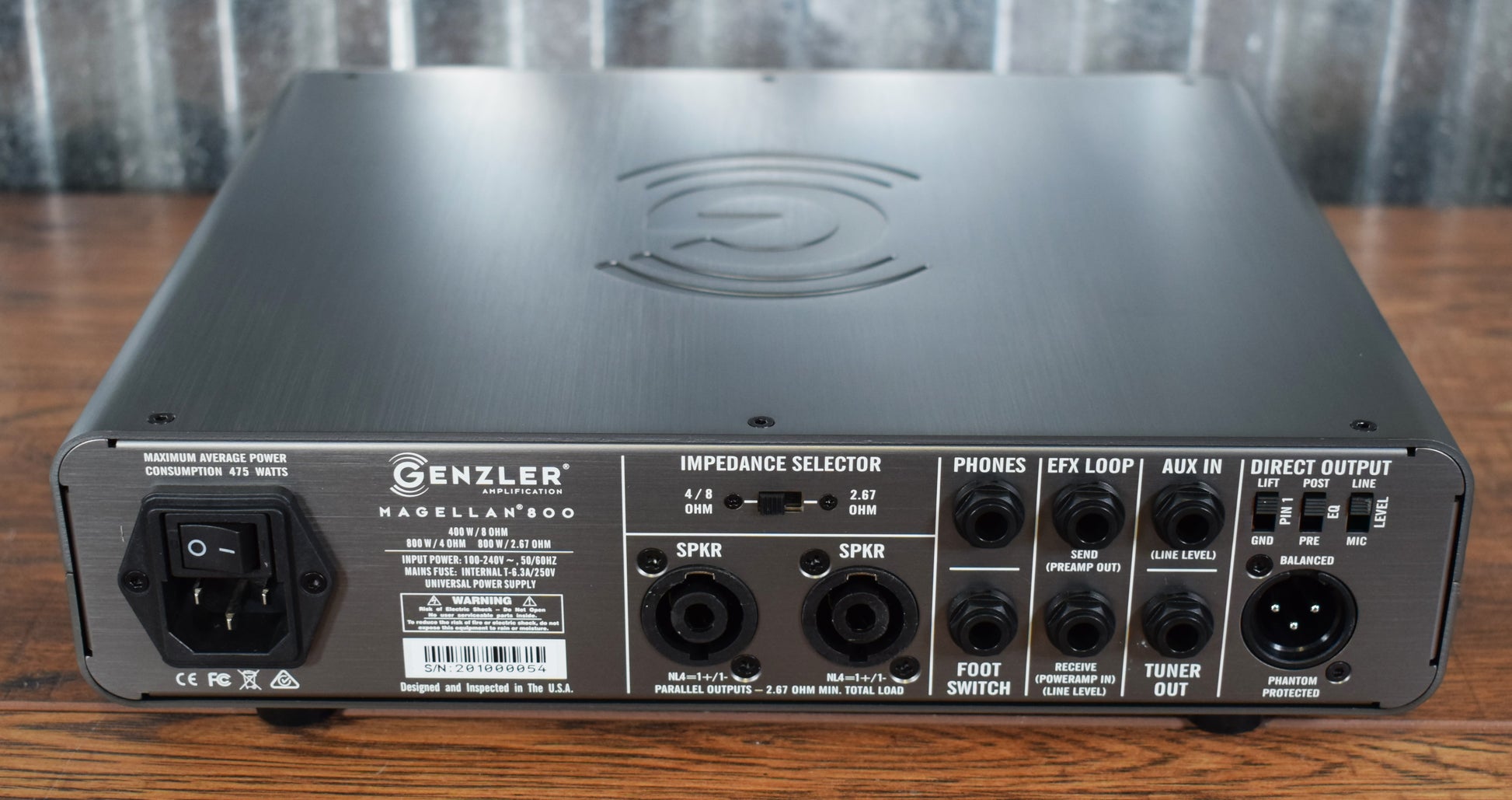

REAR PANEL
XLR Direct Output –
Mic / Line Switch
Pre / Post EQ Switch
Ground Lift Switch
Effects Loop
Aux Input
Tuner Output
Head Phones
Foot Switch — Channel switching (Foot switch not included)
Dual Speakon® Speaker Outputs
SPECIFICATIONS:
Power Output: 400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms
Minimum Speaker Load: 2.67 Ohms
Operating Power condition: 100 – 240V, 50/60 Hz
Dimensions: 3”H X 11.25”W X 10.5”D (76.2mm H x 285.75mm W x 266.7mm D)
Weight: 6.25 LBS (2.83Kg)
