Kenton Thru-5 Midi Converter Pass-Through Box Used

Kenton Thru-5 Midi Converter Pass-Through Box Used

Used with wear associated with use. Minor cosmetic scratches/scuffs from handling and play. Noteworthy blemishes or issues will be described and pictured. Works as it should.

Description
Receives MIDI data from a single MIDI OUT (e.g. sequencer or master keyboard) and produces identical copies at the 5 MIDI THRU sockets. These can then be connected to the MIDI INs of sound modules or other devices which require MIDI signals sent to them.

High quality Kenton MIDI Thru box with opto-isolated MIDI In and separate drive for each MIDI Out. Powered from a mains adaptor (wall wart) so you can fit and forget.

1 MIDI In & 5 MIDI Thrus
Works for ALL MIDI messages including Clock, SysEx, MTC etc.
Includes schmitt trigger logic for signal quality restoration
Less than one microsecond latency
DC power input jack 2.1mm (centre +ve)
Power/Data indicator light
Housed in a metal box so it can withstand the knocks
Attractively finished in brushed aluminium with black screen print

Features
Power: 9V at 50mA regulated or unregulated
Dimensions: 100mm x 50mm x 35mm
Weight: 600g including power supply
MIDI: 1 x In, 5 x Thru

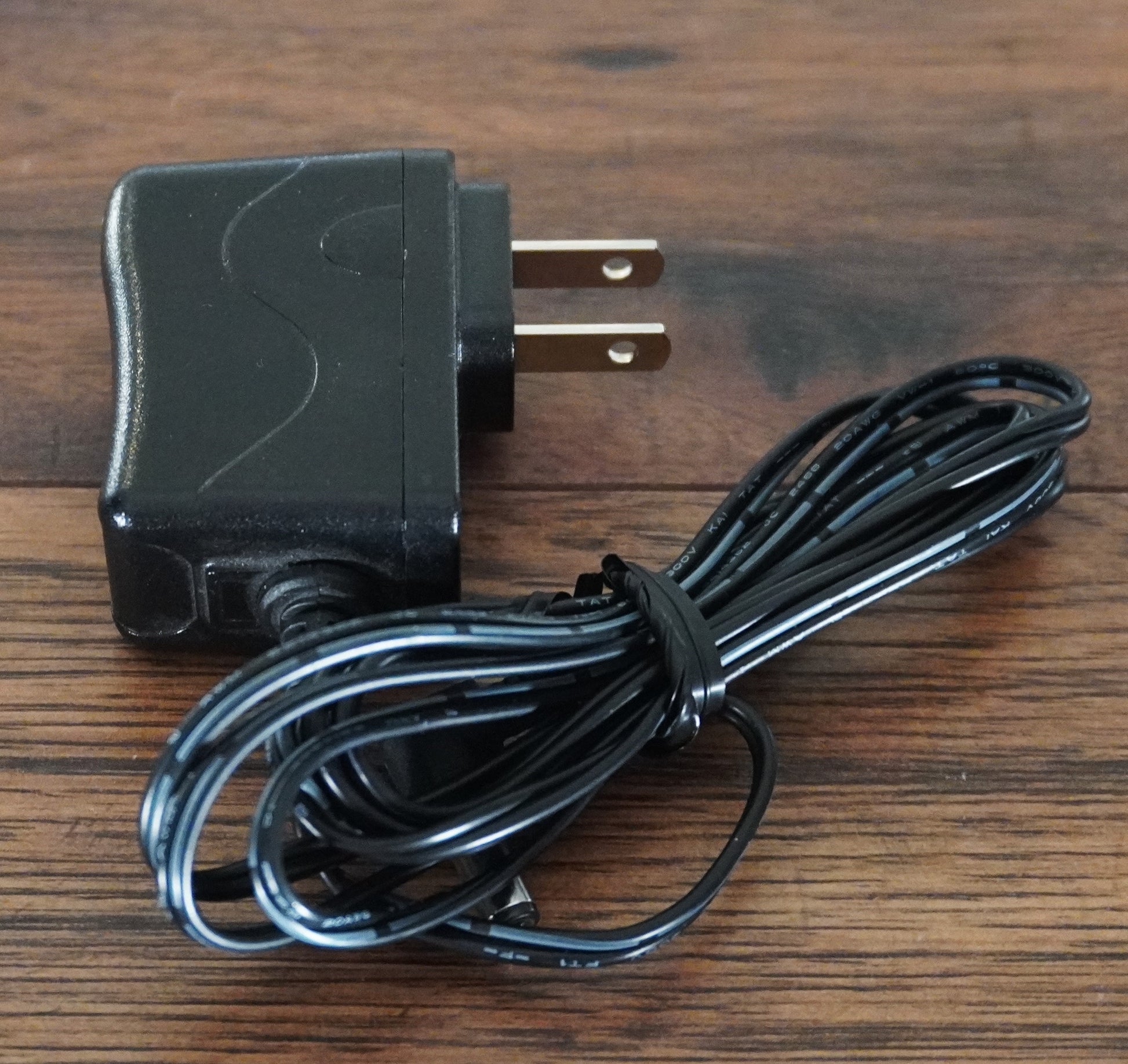

Power Supply: 9V switch mode power supply included
