Line 6 ToneCore Liqua Flange Guitar Flanger Effect Pedal Used

Specialty Traders is an Authorized Line 6 Dealer!

Line 6 ToneCore Liqua Flange Guitar Flanger Effect Pedal Used

Used with wear associated with use. Minor cosmetic scratches/scuffs from handling and play. Noteworthy blemishes or issues will be described and pictured. Works as it should.

We strongly recommend using the proper power supply for any pedal. Daisy chain power supplies may not supply enough power when using multiple pedals or introduce noise into the chain. Consult the pedal manual when available for manufacturer recommended power specifications.

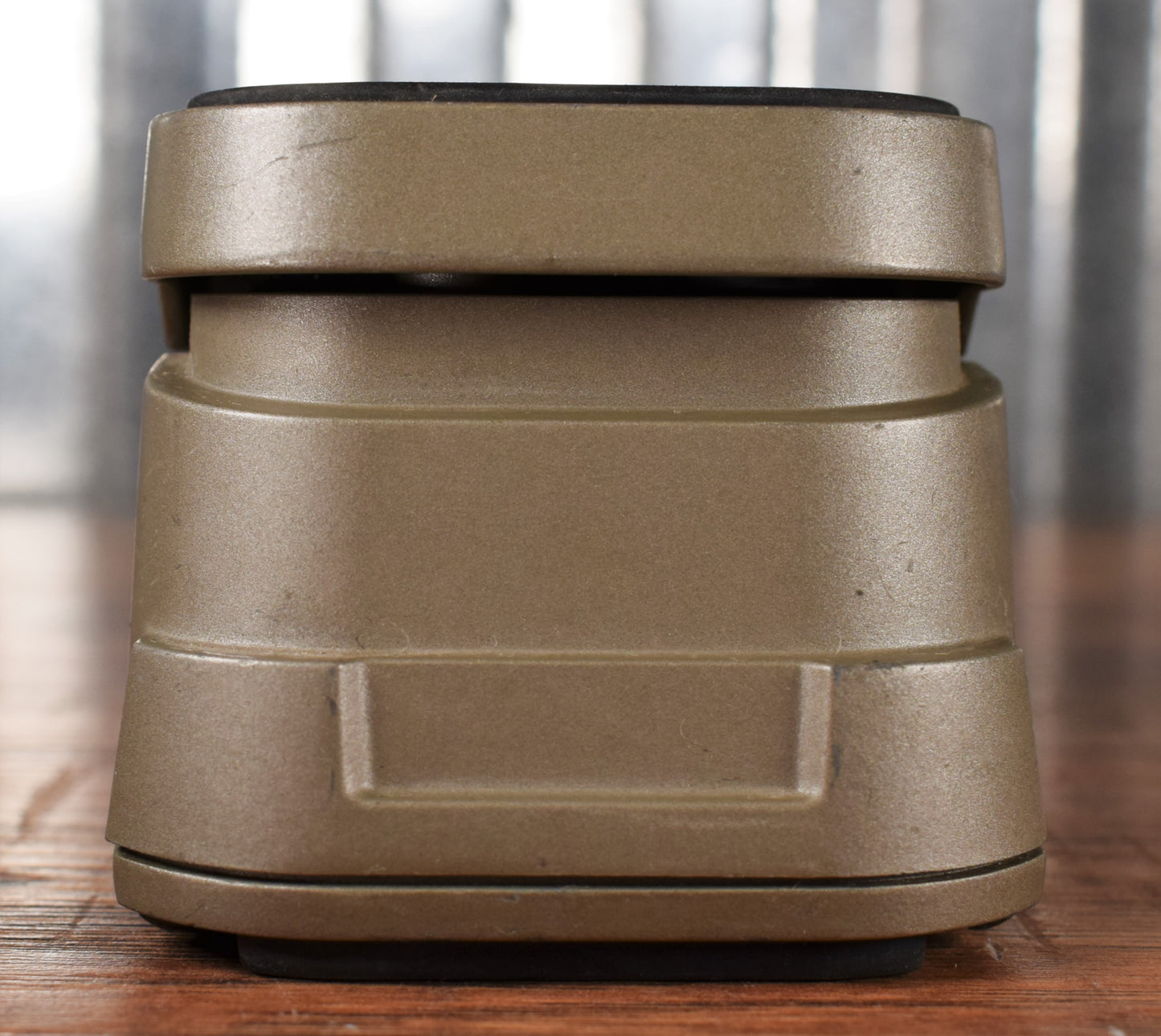

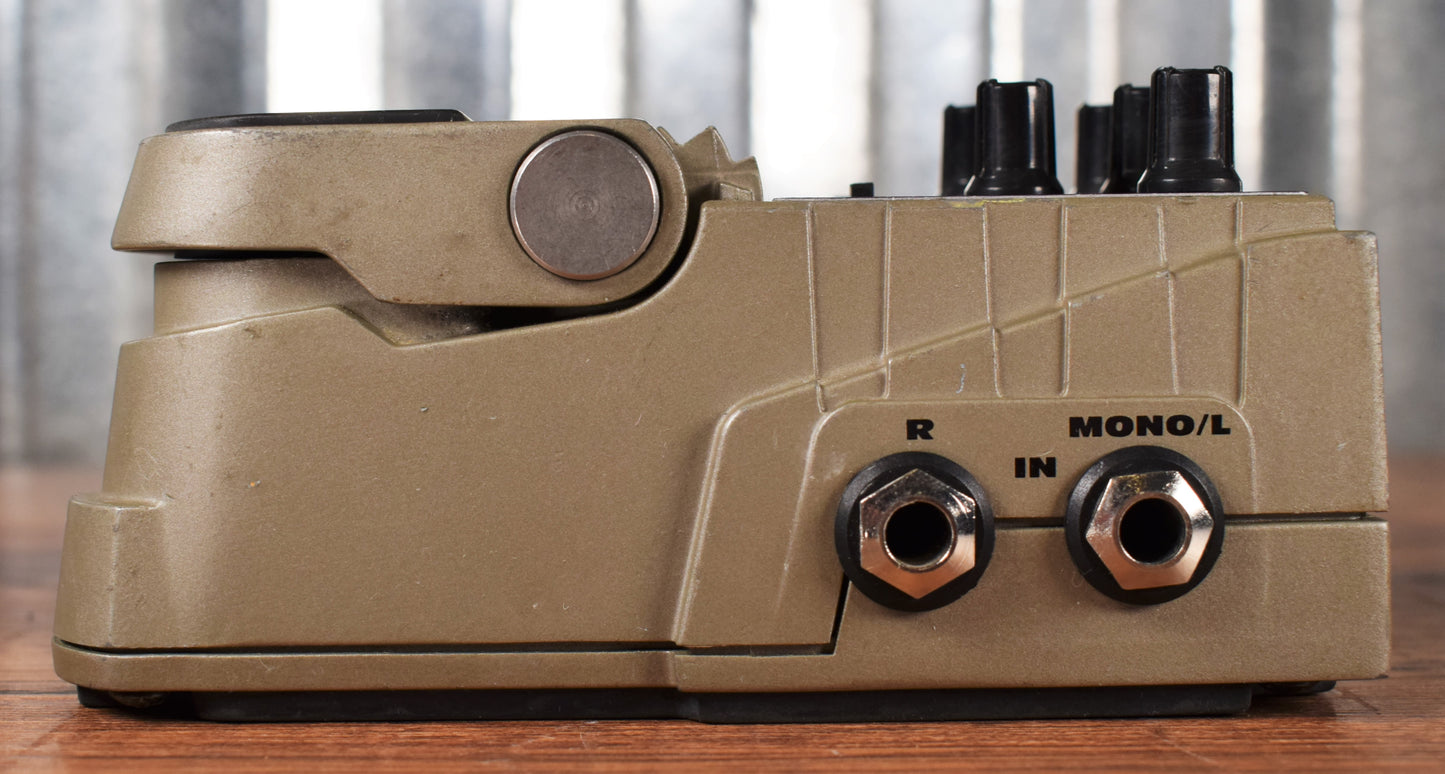

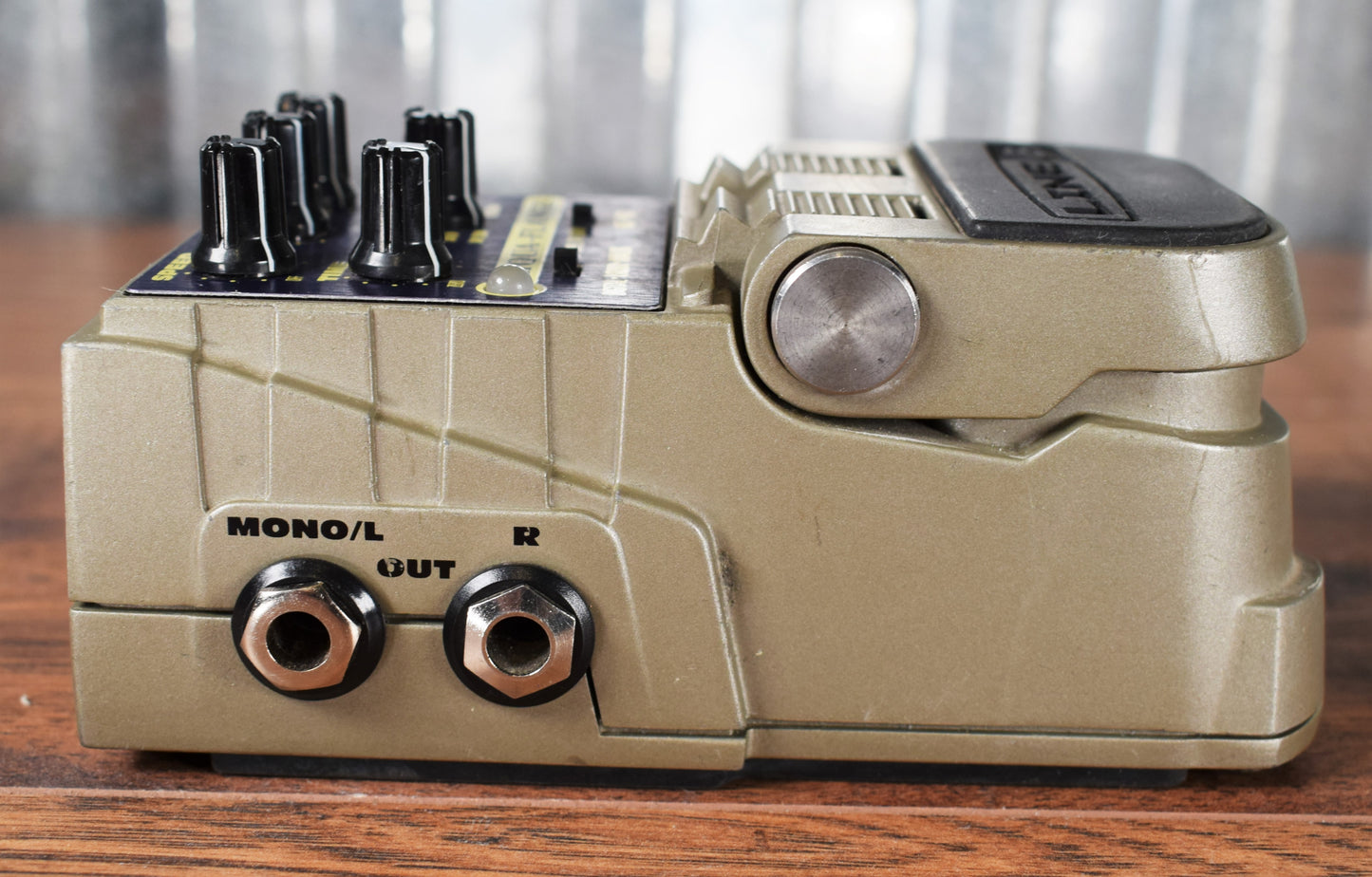

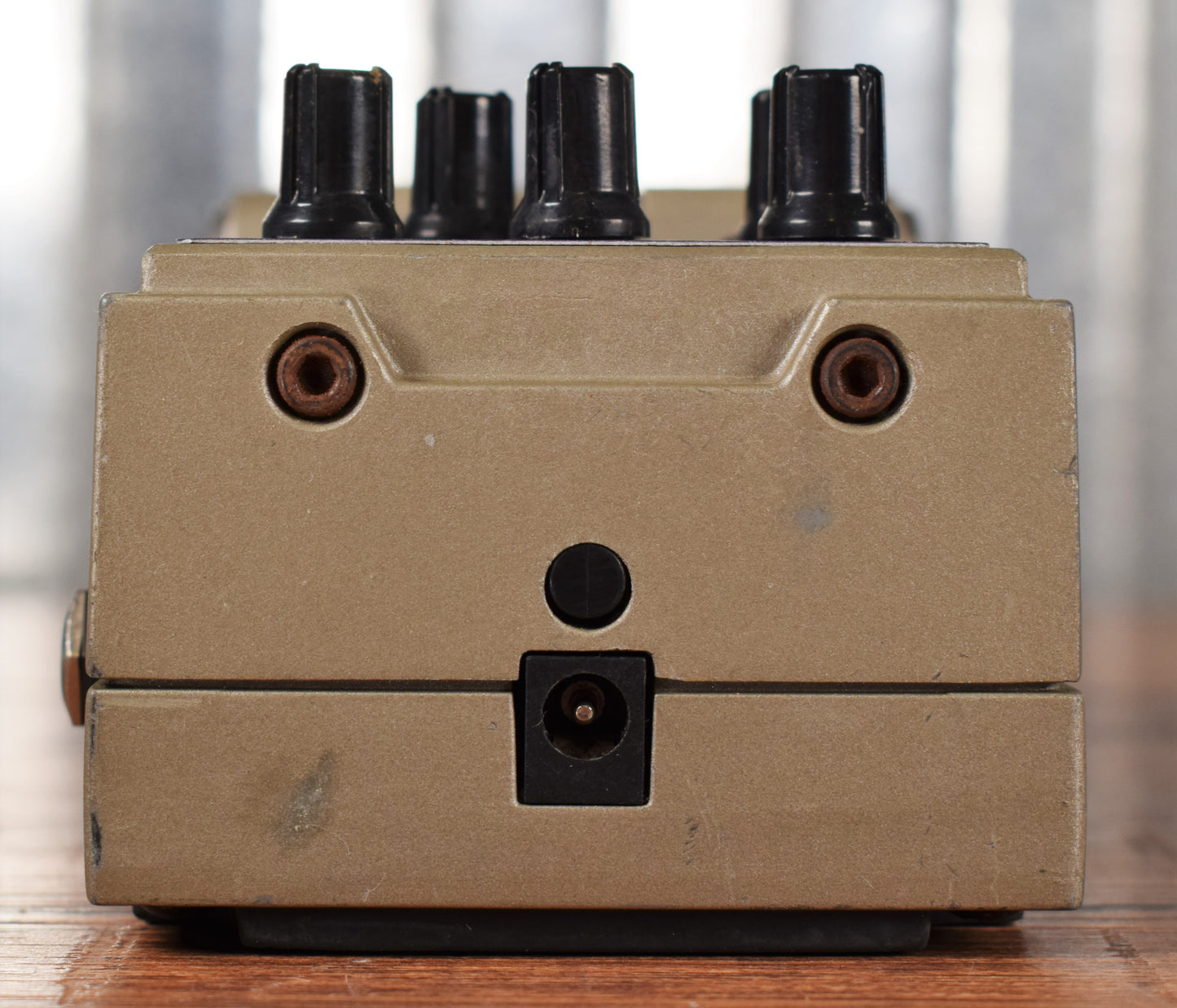

Has scratches and scuffing on all sides. Some traces of rust on screws. Please see pictures for details.

From Line 6

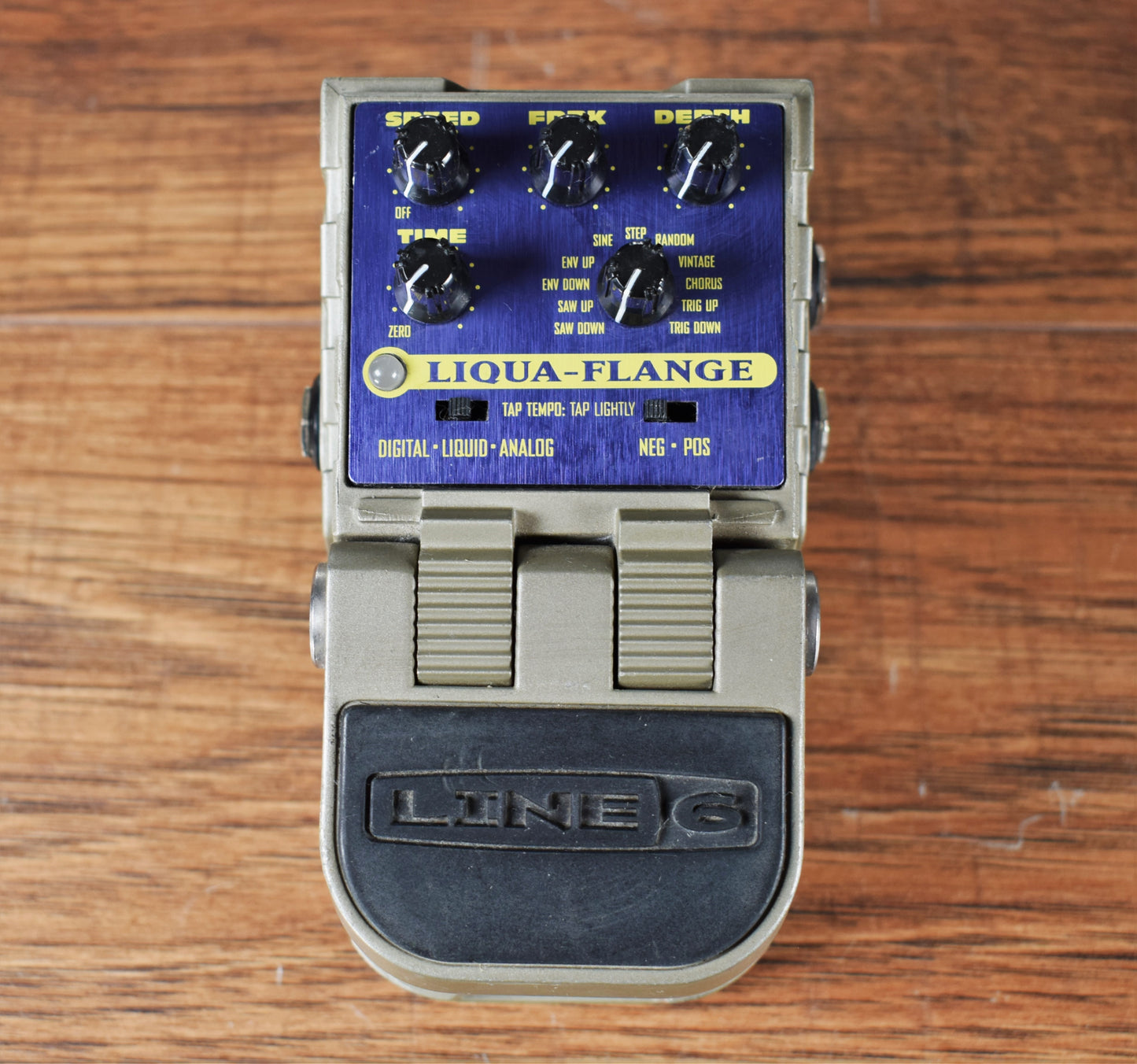

ToneCore Liqua-Flange Features

Model Switch - This switch is used to select three distinctly different types:

Digital - The wet signal has a flat frequency response.
Liquid - Has dual delay lines with the modulation offset from each other.
Analog - The wet signal has the frequency response of classic analog devices.

Polarity Switch - Allows you to select Negative or Positive phase for the delay line. When summed together with the original signal, changing the phase can result in some very dramatic effects.

Wave Select Knob - Select from 11 amazing waveforms that get you everywhere from classic stompbox to modern studio and beyond.
Saw Down - This wave has a shape that resembles the teeth on the blade of a saw. Within one cycle this wave falls linearly, then immediately rises to it's starting point.
Saw Up - This is an inverted version of Saw Down where the wave has a smooth linear rise and an immediate drop at the end of its cycle.
Envelope Down - This modulation source uses an envelope follower to track the amplitude variations of the input signal and produce a control signal that modulates the flanger?s delay time.
Envelope Up - An inverted version of Envelope Down.
Sine - Uses a sinusoidal waveform as the modulation source.
Step - Uses a modulation waveform produced by a random value generator where each cycle of the LFO produces a different modulation level.
Random - Same as Step but with a smoothing filter applied to the output of the LFO, producing smooth value changes with each LFO cycle.
Vintage - Based on* the unique waveform of the classic MXR® flanger.
Chorus - Uses a triangle modulation waveform with an extended offset and range to produce a chorus effect.
Trigger Up - Uses a modulation source derived from attack detection DSP, this in turn triggers an envelope that rises linearly. The rise time is determined by the speed knob.
Trigger Down - Same as Trigger Up but with a falling envelope.

Time Knob - Controls the amount the delay line is delayed as compared to the original signal. The fully counter clockwise position, labeled ZERO, indicates the time difference between the delay line and the original signal is zero. At this point the two signals are said to be "in phase" and when the polarity is set to negative, what is common between the two signals will cancel out completely.
Speed Knob - Controls the rate at which the delay line?s time is modulated. Turning the speed control fully counter clockwise to the OFF position stops the modulation of the delay line completely.

Feedback Knob - Increases the amount of the wet signal fed back into the input of the effect. Increasing feedback (clockwise rotation) will increase the intensity of the flange.

Depth Knob - Controls how widely the delay line will be modulated.

Tap Tempo - Using the innovative ToneCore double-action footswitch, you can tap a couple times and have the flanging pulsations match your tempo. Whether the effect is active or bypassed, you can tap the footswitch lightly to set your tempo. Your first two taps establish the tempo and any additional taps will be averaged in. The Tap Tremolo indicator light flashes the tempo in green when the effect is ON and amber when the effect is OFF.

ToneCore Liqua-Flange Specs:

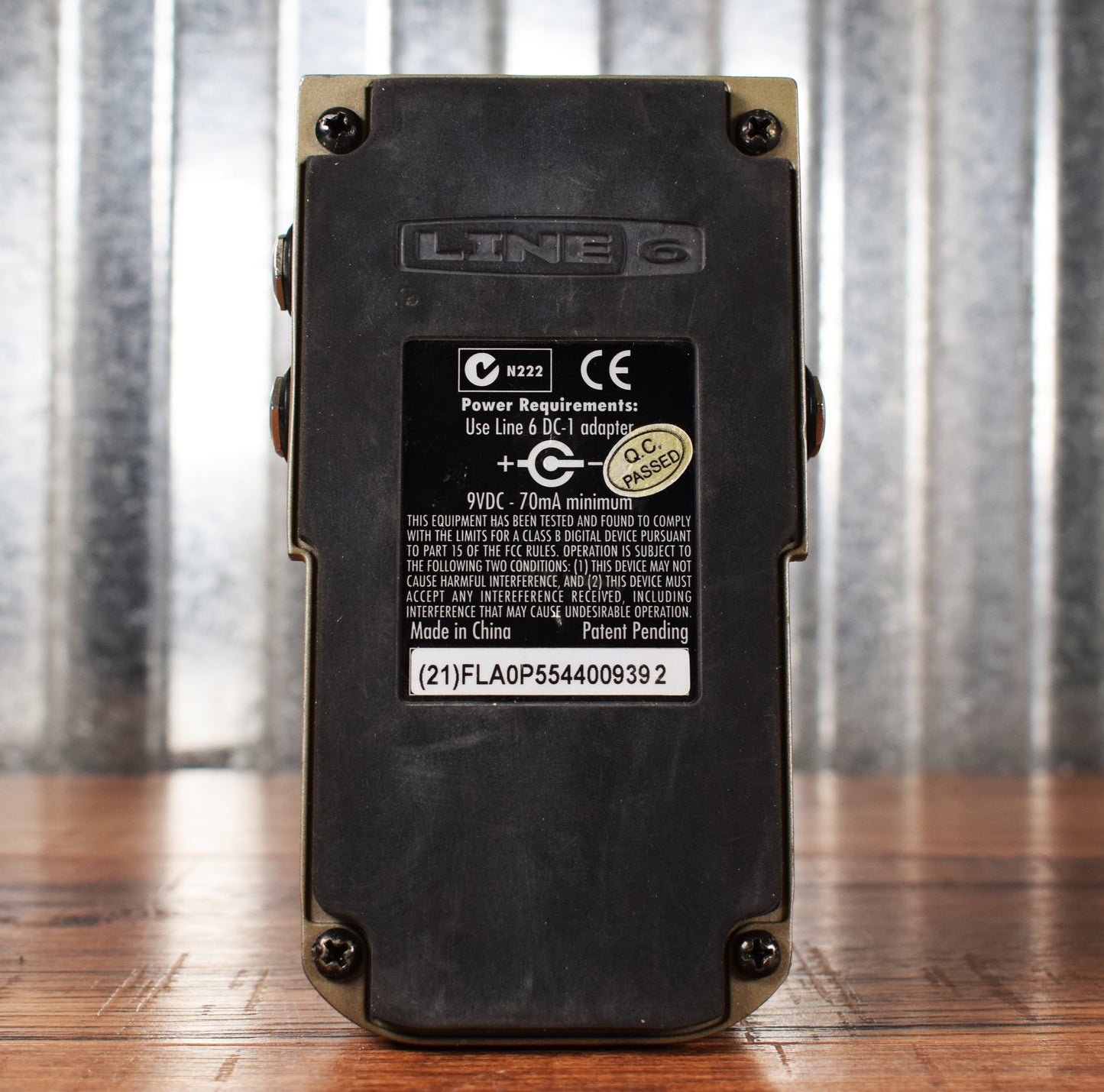

Single 9-Volt Battery, or 9-Volt DC Power Supply (not included)
Width 3.375"
Depth 5.625"
Height 2.875"
Weight 2lbs 24 oz
