NUX NIP-Z10 Zeus 10 Output Isolated Guitar Pedalboard Effect Pedal Power Supply

Specialty Traders is an Authorized NUX Dealer!

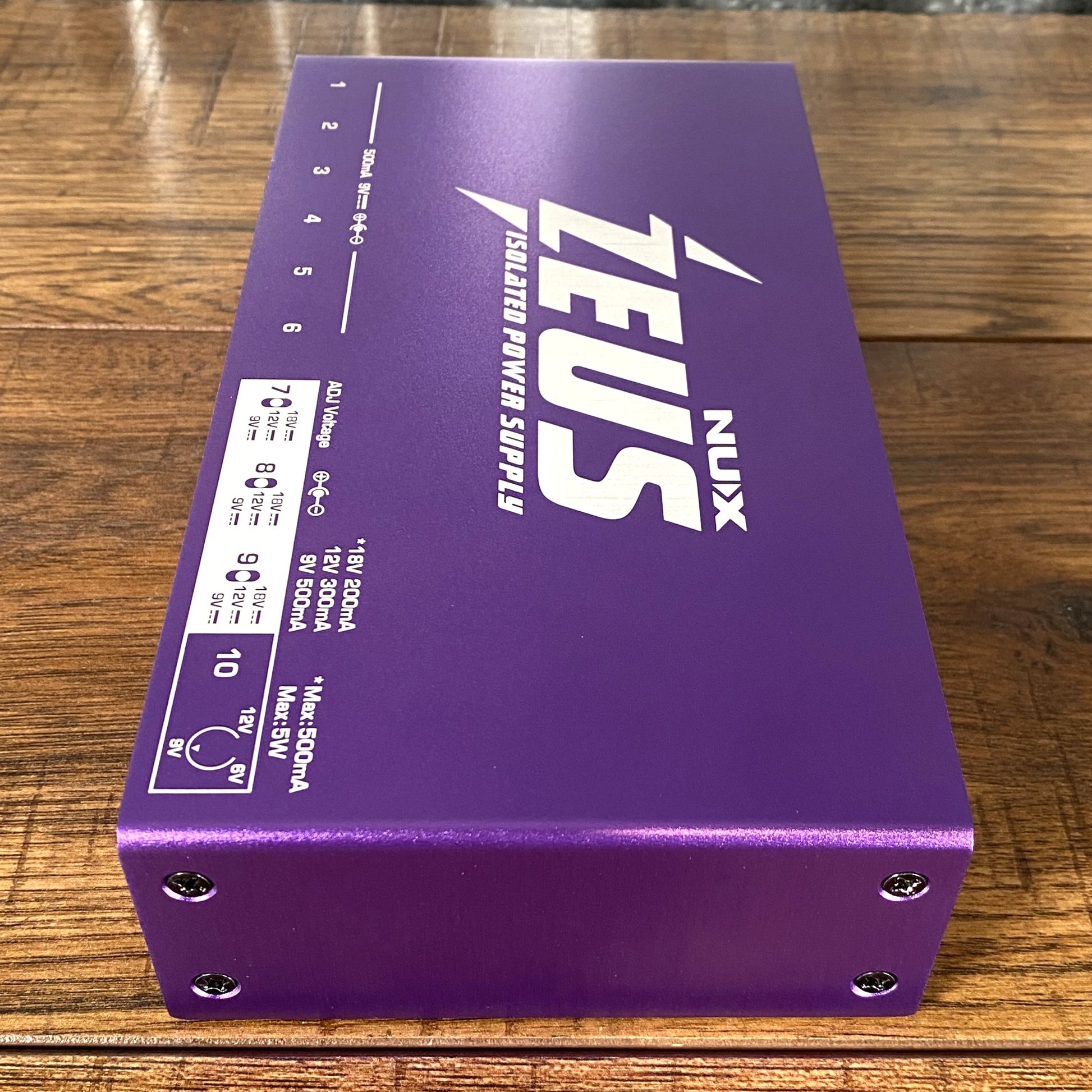

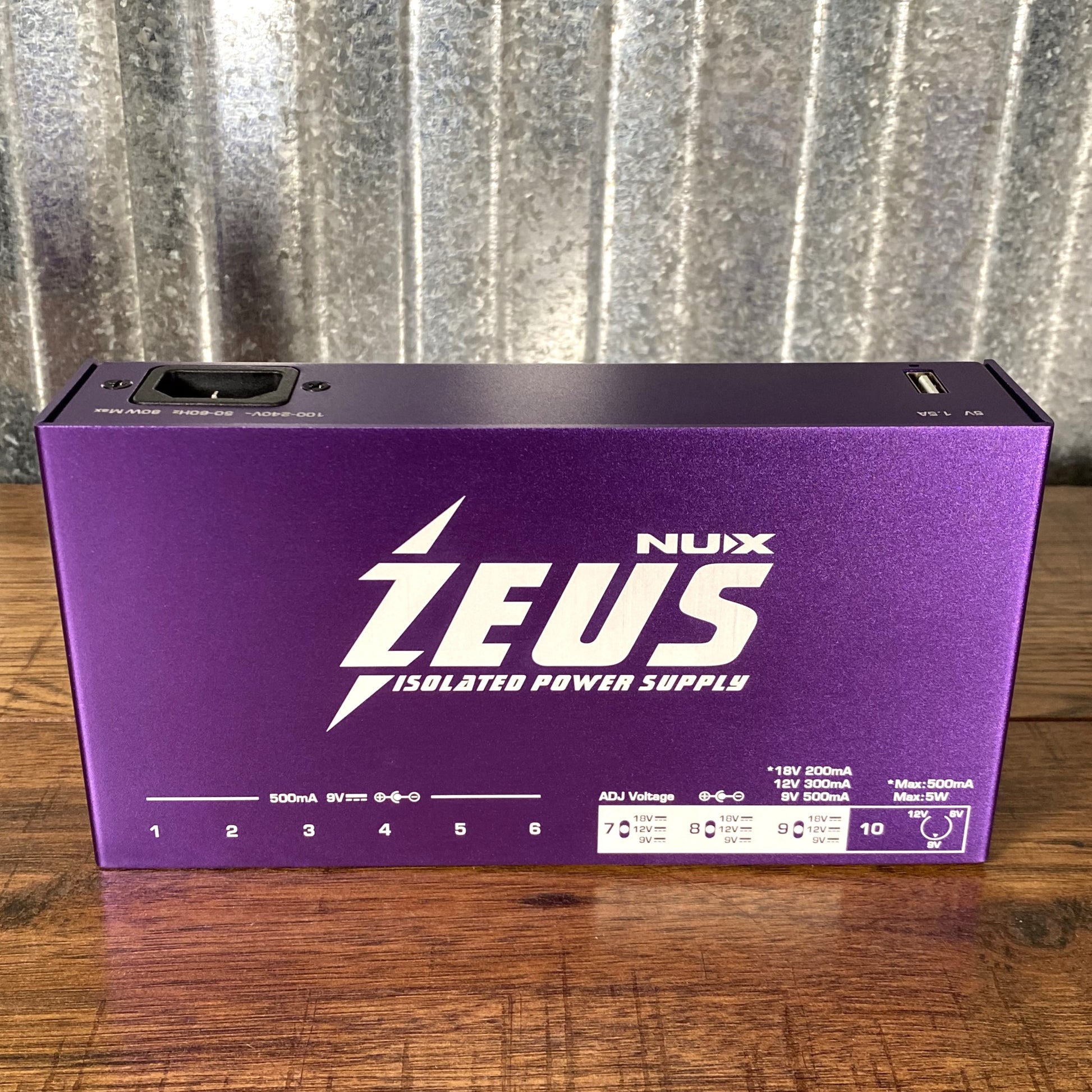

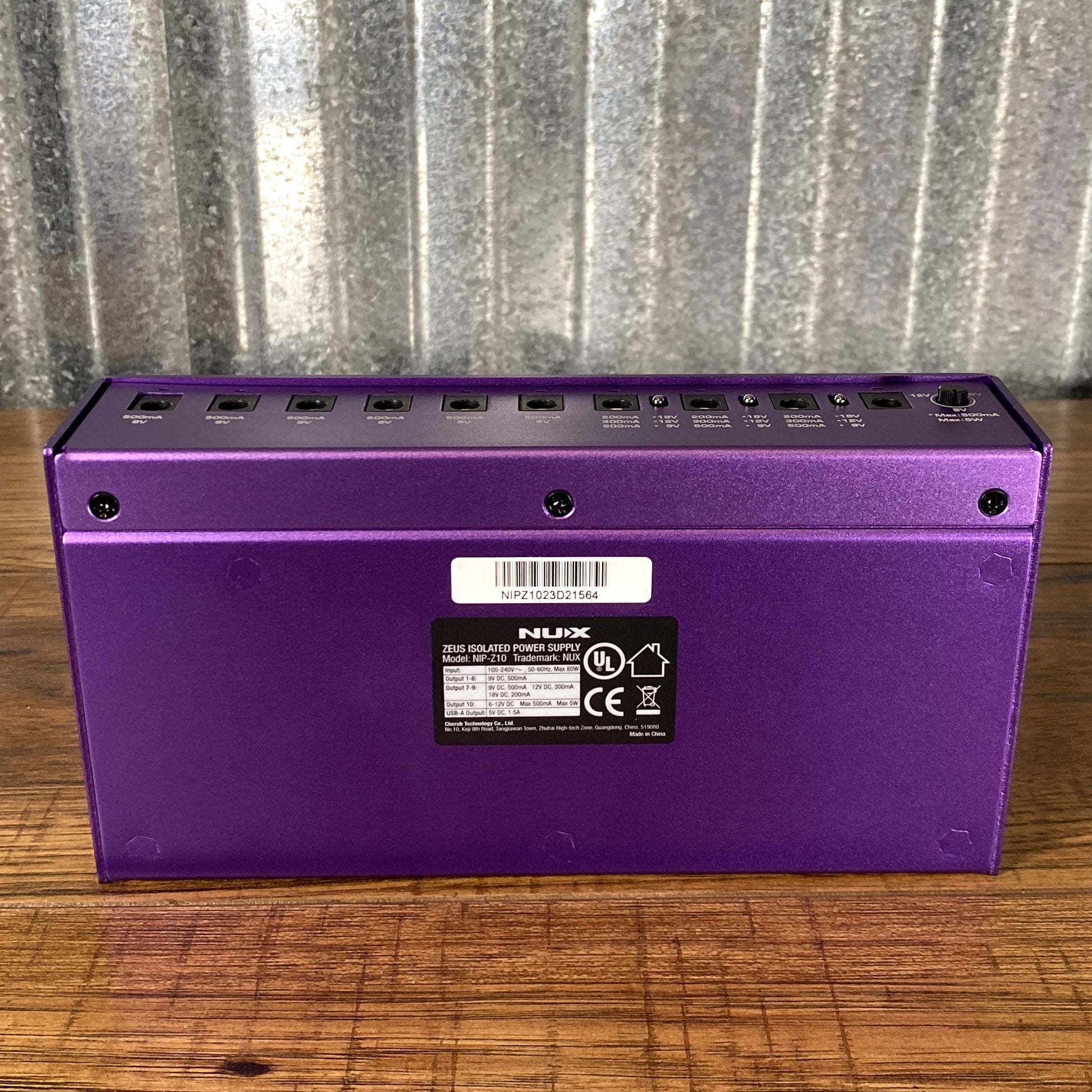

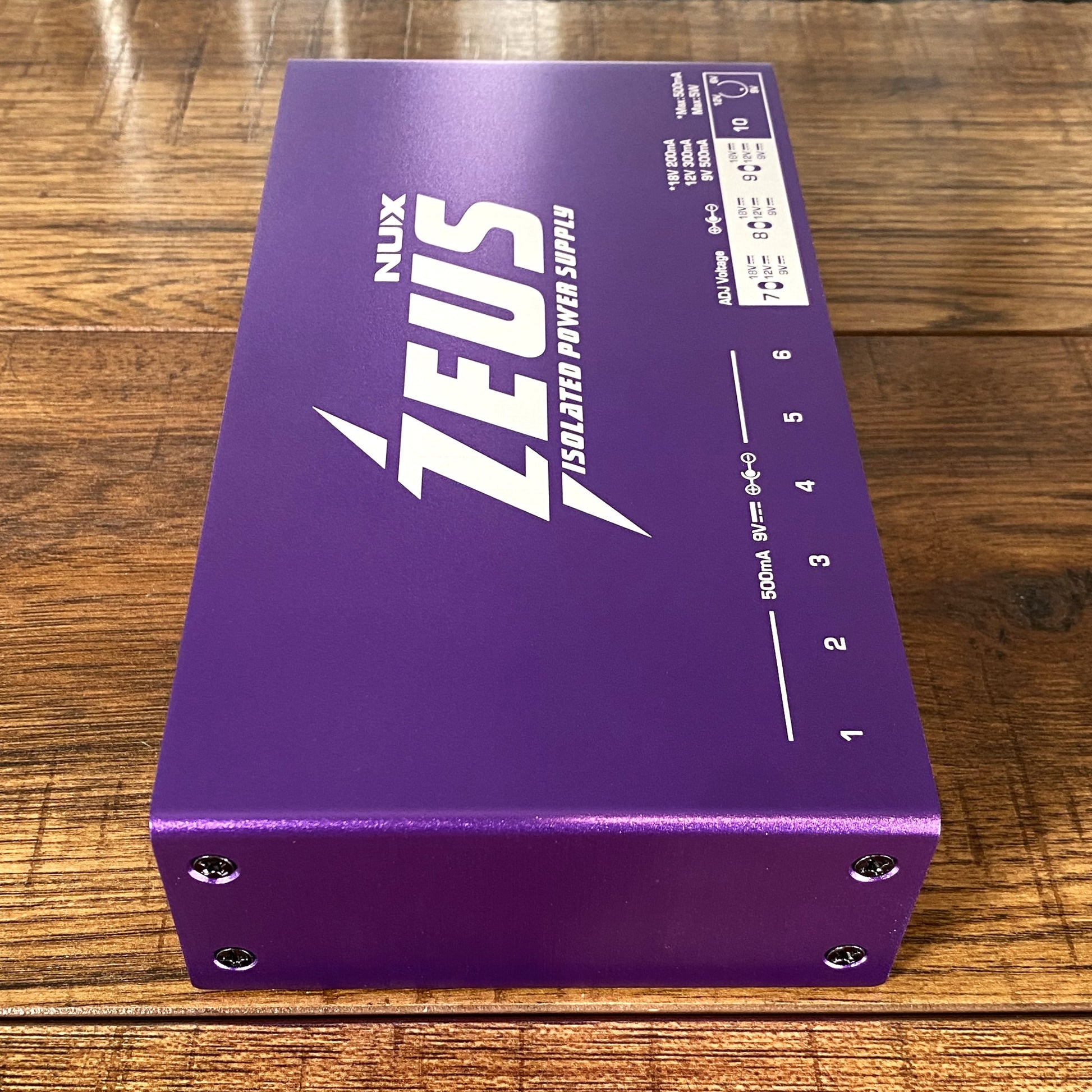

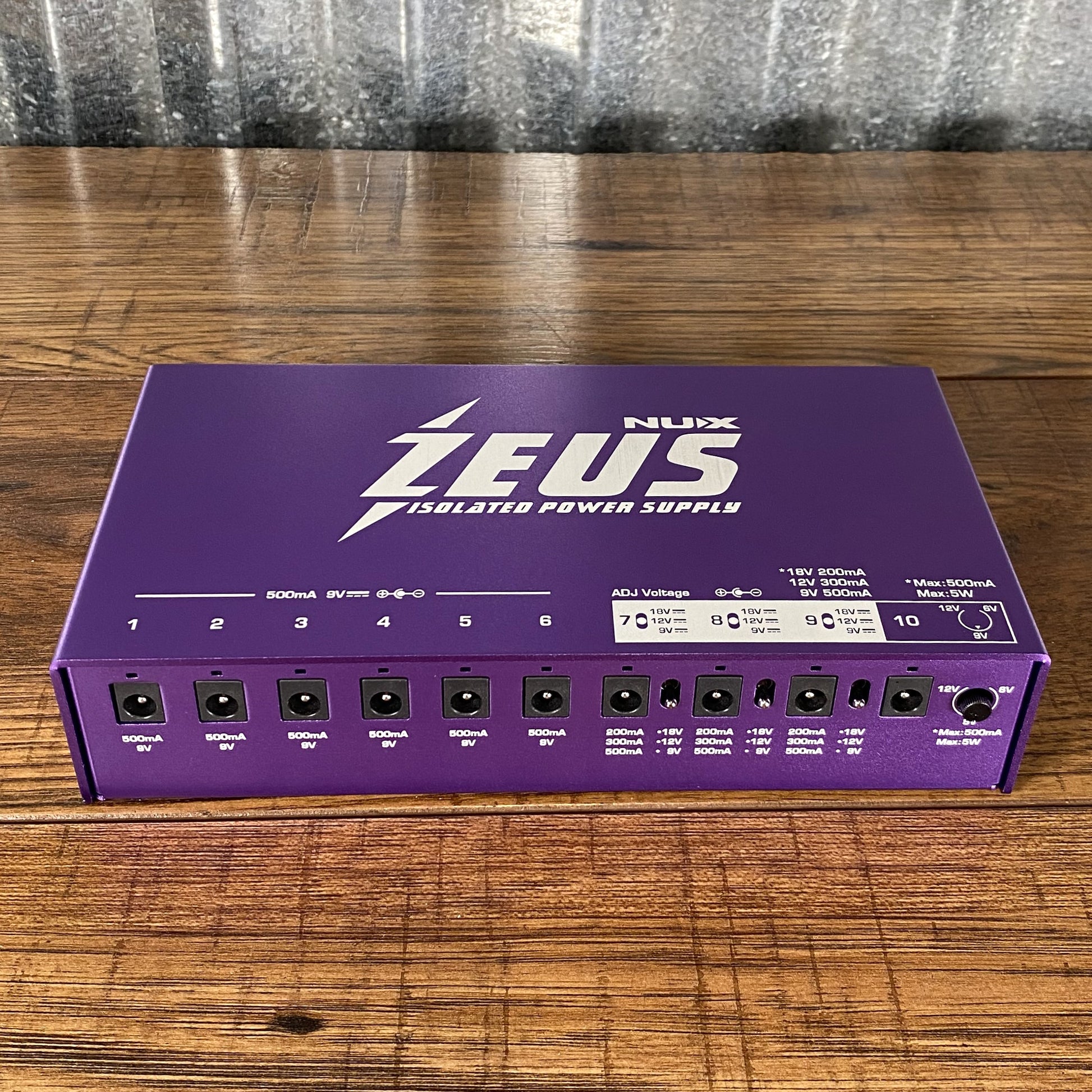

NUX NIP-Z10 Zeus 10 Output Isolated Effect Pedal Power Supply

New

As a musical instrument brand, NUX already built lots of pedals and multi-effects. For users who use high gain distortion pedals always have headache with the power supply. The DC daisy-chain can drive several pedals, but the ground noise will occur easily especially while you connect analog pedals and digital pedals at the same time. To be an industry pioneer, NUX has the mission to build a reliable, extreme-low-noise, light-weight, universal power, high current, all-isolated power supply.

While we reviewed the previous isolated power supplies, the main products use “toroidal transformer”. Even it can offer clean power, but the efficient, weight, size, is totally unfriendly in nowadays.

Zeus was the god of the sky and thunder. His most famous power is the ability to throw lightning bolts. That’s why we name the power supply ~ ZEUS. Zeus provides 10 high current isolated DC power. It equips 10 isolated switching power transformers to offer clean and stable source for your pedals. As a modern musician, guitarists like digital post effects like Eventide®, Strymon®, …etc. So Zeus comes with 3 adjustable high current outputs (9v/500ma | 12v/300ma | 18v/200ma), and 1 tweakable high current output (6v~9v~12v). It means you can use Fuzz or Phaser with the tweakable output to find the best sound.

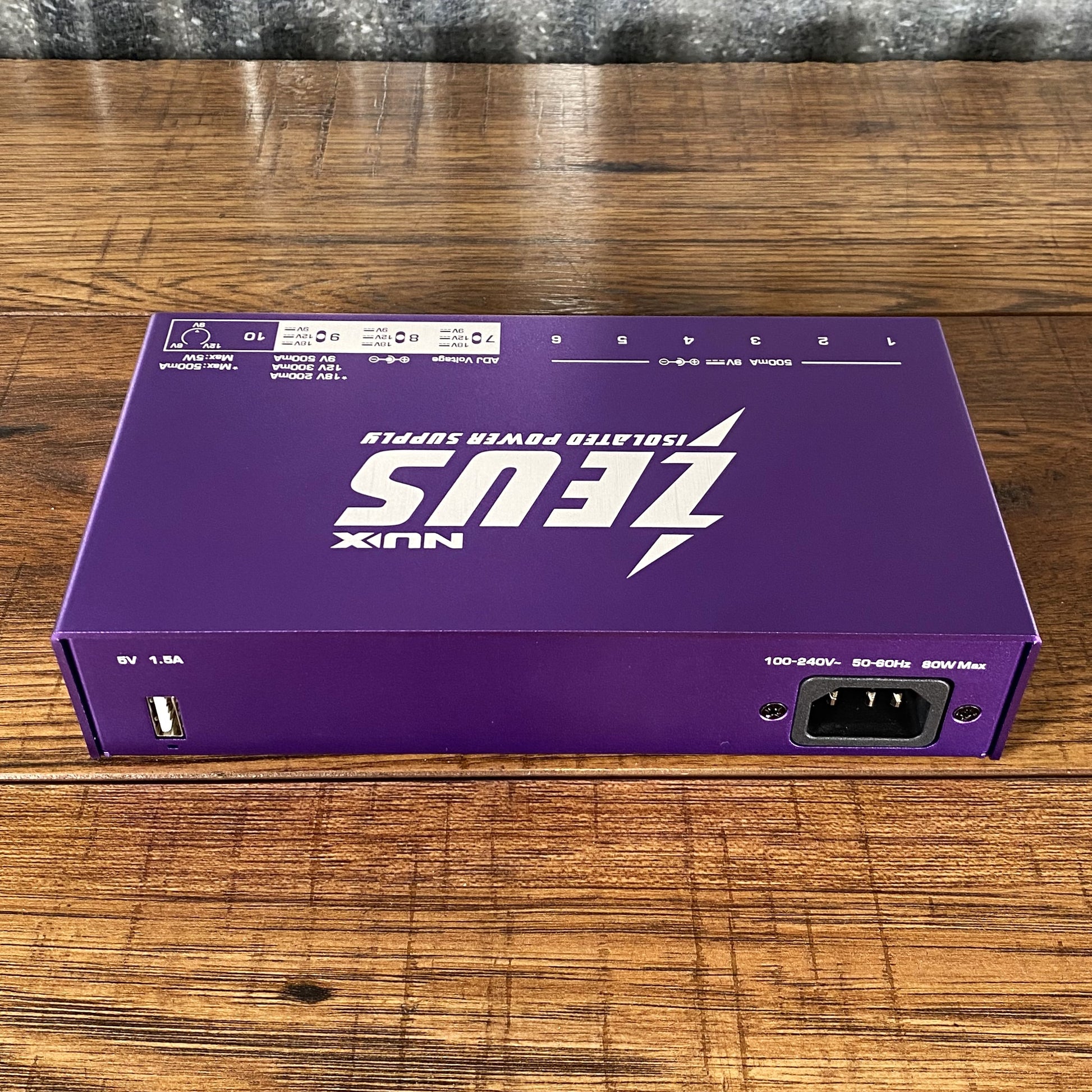

For working musicians, Zeus has USB port for your mobile device charging. Zeus’ universal AC power in can let you work all the world without any AC mistake. It’s reliable and durable to power your pedals.

Specifications
AC Power Input: 100~240V AC 50/60 Hz
DC Outputs: 9V / 500mA*6, 9V/12V/18V adjustable*3, 6V~12V tweakable*1, USB 5V/1.5A for Pad

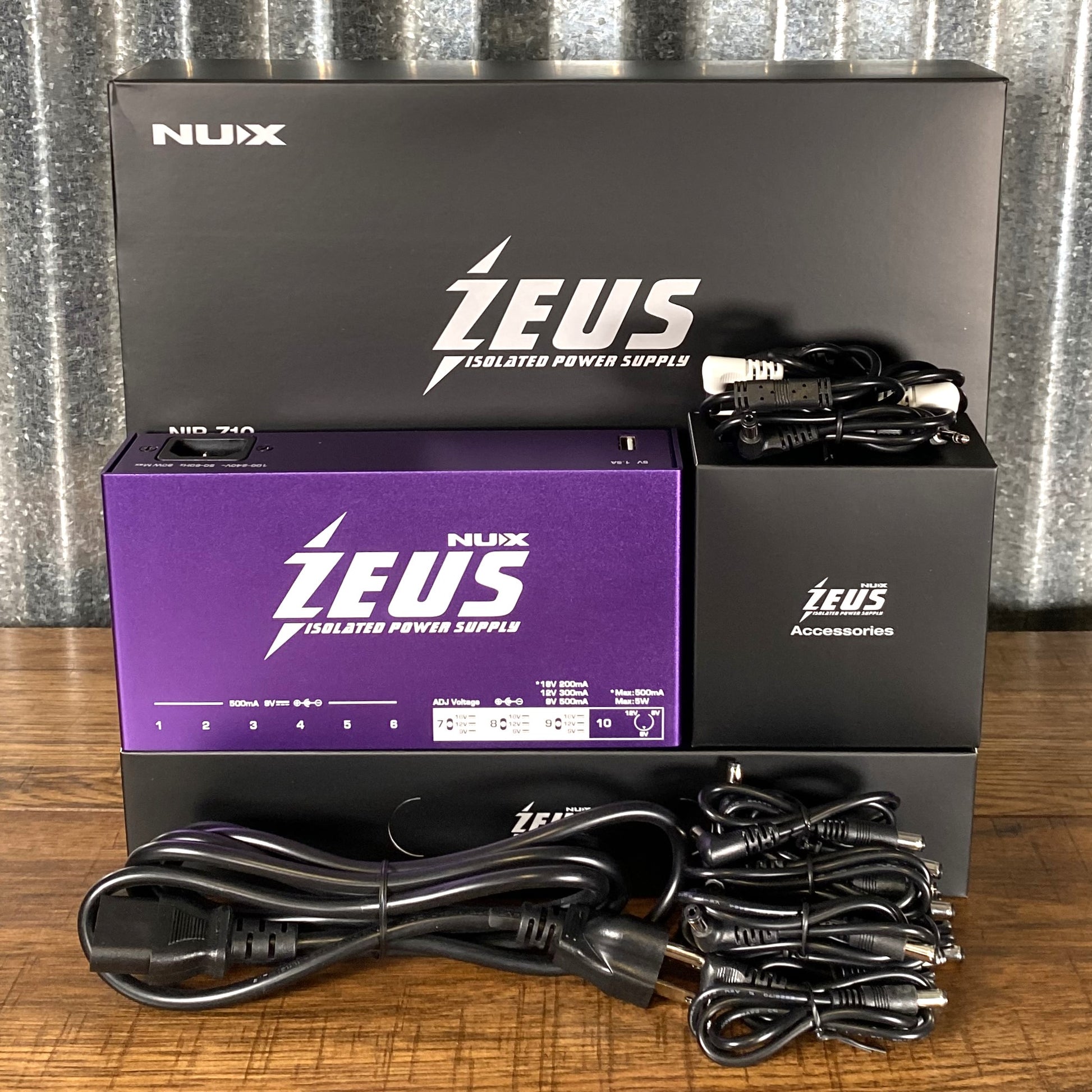

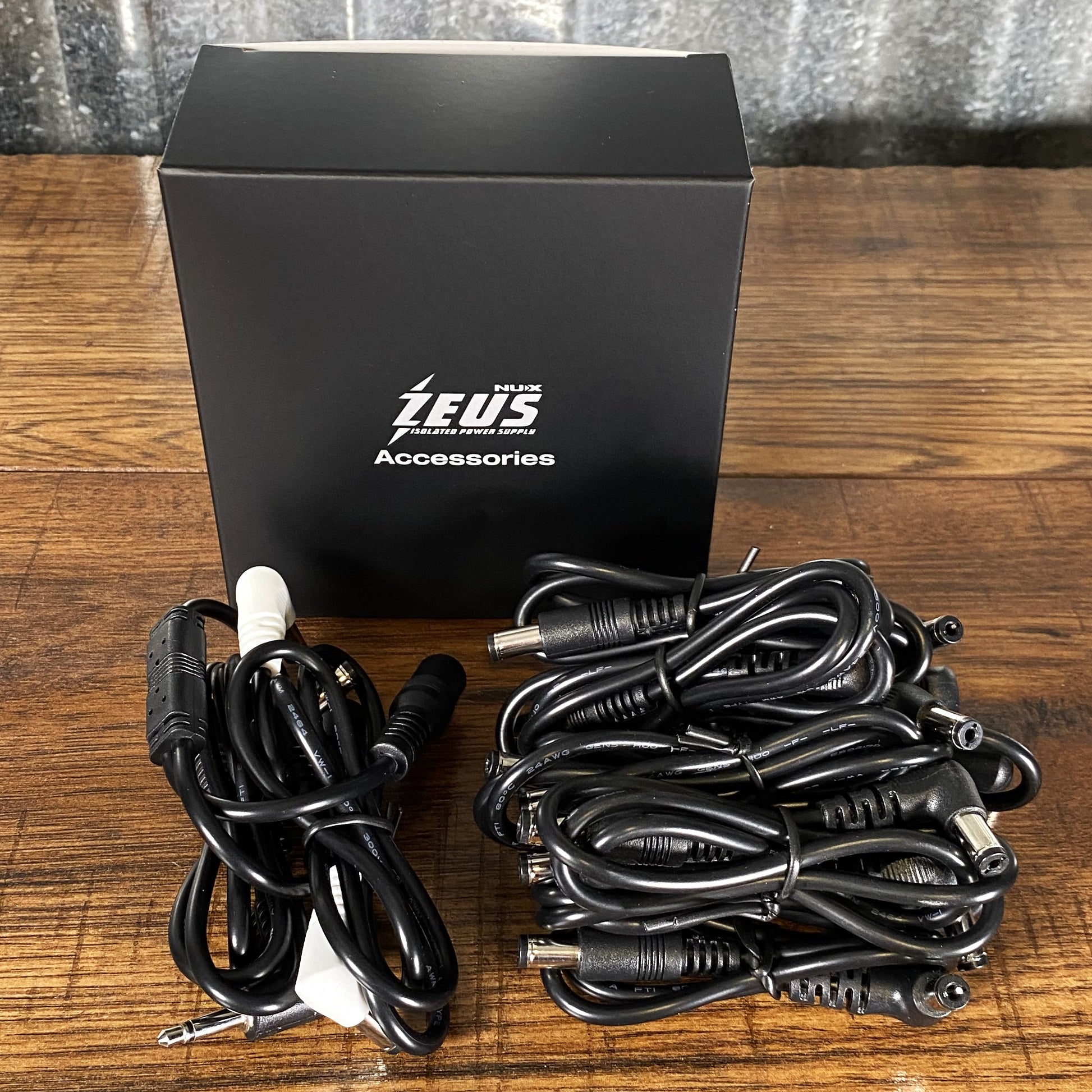

DC Cables: DC LINK CABLE (2.1MM BARREL CONNECTORS-RIGHT-ANGLE TO STRAIGHT ENDS) 50CM*5
DC LINK CABLE (2.1MM BARREL CONNECTORS – RIGHT-ANGLE TO STRAIGHT ENDS) 30CM*5
REVERSE POLARITY CABLE-2.1MM RIGHT-ANGLE 50CM*1
3.5MM MINI PLUG CABLE-RIGHT-ANGLE 50CM*1
HX CURRENT DOUBLER ADAPTOR (2*2.1MM JACK TO 2.5MM RIGHT-ANGLE PLUG) 10CM*1
Dimensions: 195mmx101mmx42mm
Weight: 658g
