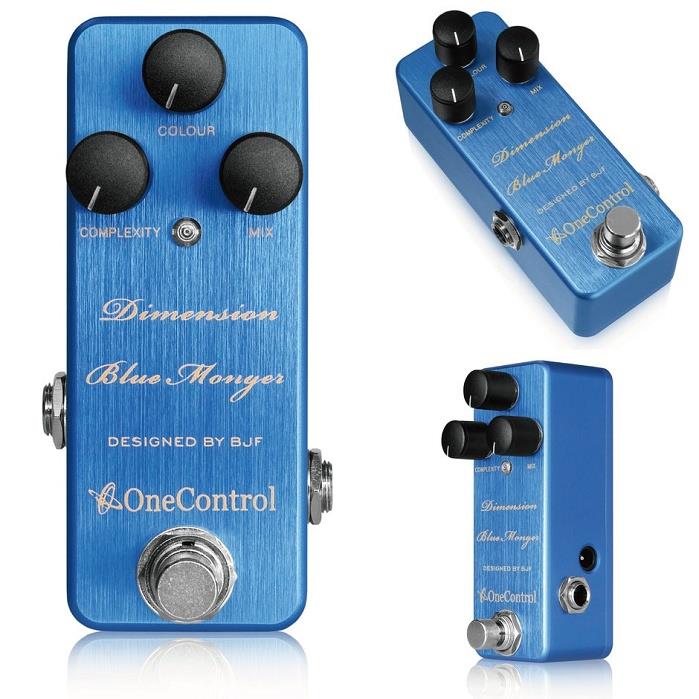

One Control BJF Dimension Blue Monger Modulation Guitar Effect Pedal
One Control BJF Dimension Blue Monger Modulation Guitar Effect Pedal
Authorized Dealer!
One Control BJF Dimension Blue Monger Modulation Guitar Effect Pedal
Dimension Blue Monger
BJF Series FXÂ Â | Â Modulation Pedal
Features
A completely new type of effect that blurs the lines between the Flanger effect and Chorus effect.  Allows guitarists to create a “wateryâ€, 3-dimensional modulation effect that gives your tone a sense of transparency and rich reverberation.
​Specifications
- Input impedance: 280 K
- Output impedance: 2KÂ
- Drive voltage: 9 VÂ
- Current consumption: 80 mA
- S / N ratio: -90 dB (Rhythm) - 74 dB (Lead)
- Size: 39 W x 100 D x 31 H mm (not including projections)
-     47 W x 100 D x 48 H mm (including projections)
- Weight: Approximately 160 g
- True-Bypass Switching
- High Quality Aluminum Enclosure
- Power: 9V Battery or Standard DCÂ Power Supply
Bjorn's Description
The Dimension Blue Monger is a modulation pedal tuned like a flanger in terms of delay time. Â However, without feedback, the Dimension Blue Monger creates a chorus type sound that can be set to make up five choruses in parallel. Â This causes a diffusion and complex chorus sound while maintaining the incredible clarity of every single note.
​Complexity: Adjust modulation speed and depth with one knob.  At counter-clockwise position, produce a standard chorus sound.  At the most clockwise position, the modulation becomes bolder and more complex.
Colour:Â Adjust overall brightness of the tone
Mix:Â Adjust dry/wet balance of the overall effect. Â Choose between a predominant effect or an effect that appears only at the tails of phrases.
The Chorus effect is achieved by mixing  dry signal with delays and modulation.  The result is a number of peaks and notches which move slightly up and down the frequency spectrum, a pattern similar to water ripples.
