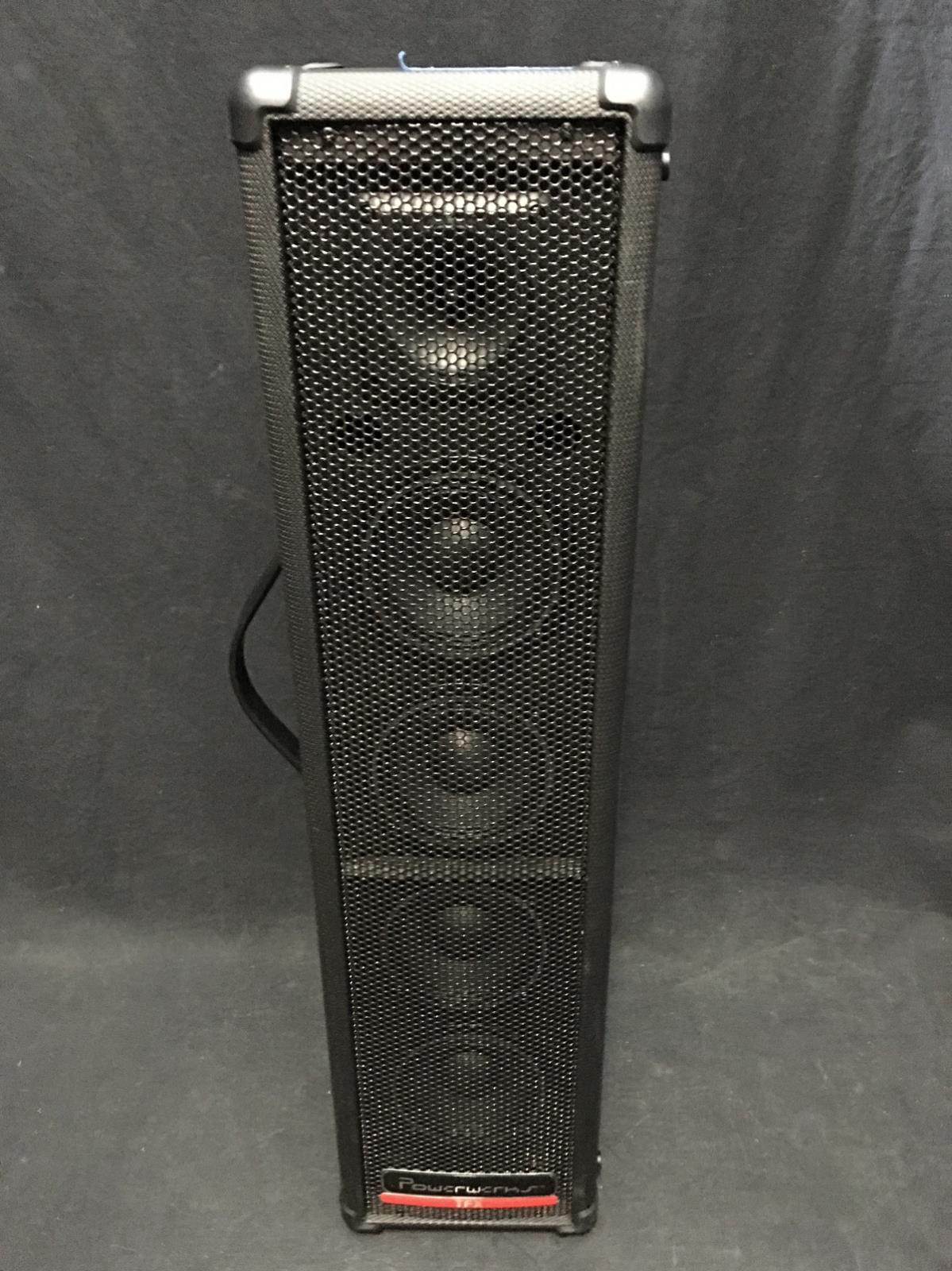

Powerwerks PW150TFX 150 Watt Powered Personal PA System #0500
Used with wear associated with normal use. Minor scuffs/scratches. The effects introduce a slight hum but otherwise works as it should.
◠Equipped with Eminence® Speakers ◠150 Watts with Built-in 3 Channel Mixer ◠4 Built-in Effects ◠Monitor Out and Subwoofer Out ◠POWERLINK for Ease of Input Expansion
Product Specifications
Output Power 1%
2 x 75W, 2 x 4 ohm load
Accepted Inputs
Ch1 and Ch2, Mic XLR Balanced, Line Level 1/4" Un-balanced
Ch3, 1/8" Line Level or Bluetooth Device (150TFBT models)
Frequency Response
20Hz-20kHz, Actual response is tailored to speaker cabinet for accurate acoustical response
Hum & Noise
-46dB, ResidualNoise, all level controls 0% (minimum)
-37dB, Nominal System Noise, all level controls at 50%
System Gain/Speaker Output (Measurement at 1kHz)
+49dB, Mic to Speaker Output (Ch1 & Ch2)
+35dB, Line to Speaker Output (Ch1 & Ch2)
+25dB, Aux In to Speaker Output
Channel EQ (high, low)
4kHz and above, 800Hz and below
POWERLINK (IN and OUT)
Both jacks accept a balanced input and sends a pre-master volume output mix of channels
Recommended use: Linking two PW150's or adding a PW4EX mixer
Subwoofer Out
Line Out, 20Hz-150Hz
Monitor Out
Line Out, Balanced TRS Output with grounded sleeve
Phantom Power
+15V, Mic inputs (Ch1 & Ch2)
Speakers
Four 4 1/2", 50W 8 ohm each
Horn
3 1/2" Piezo Driver
Power Capacity
150W RMS
Frequency Response
60Hz-20kHz, Full Range (subwoofer jack not used)
150Hz-20kHz, Crossover Active (1/4" mono plug in subwoofer jack)
