Roland GAIA SH-01 37 Key Synthesizer Keyboard

Specialty Traders is an Authorized Roland Dealer!

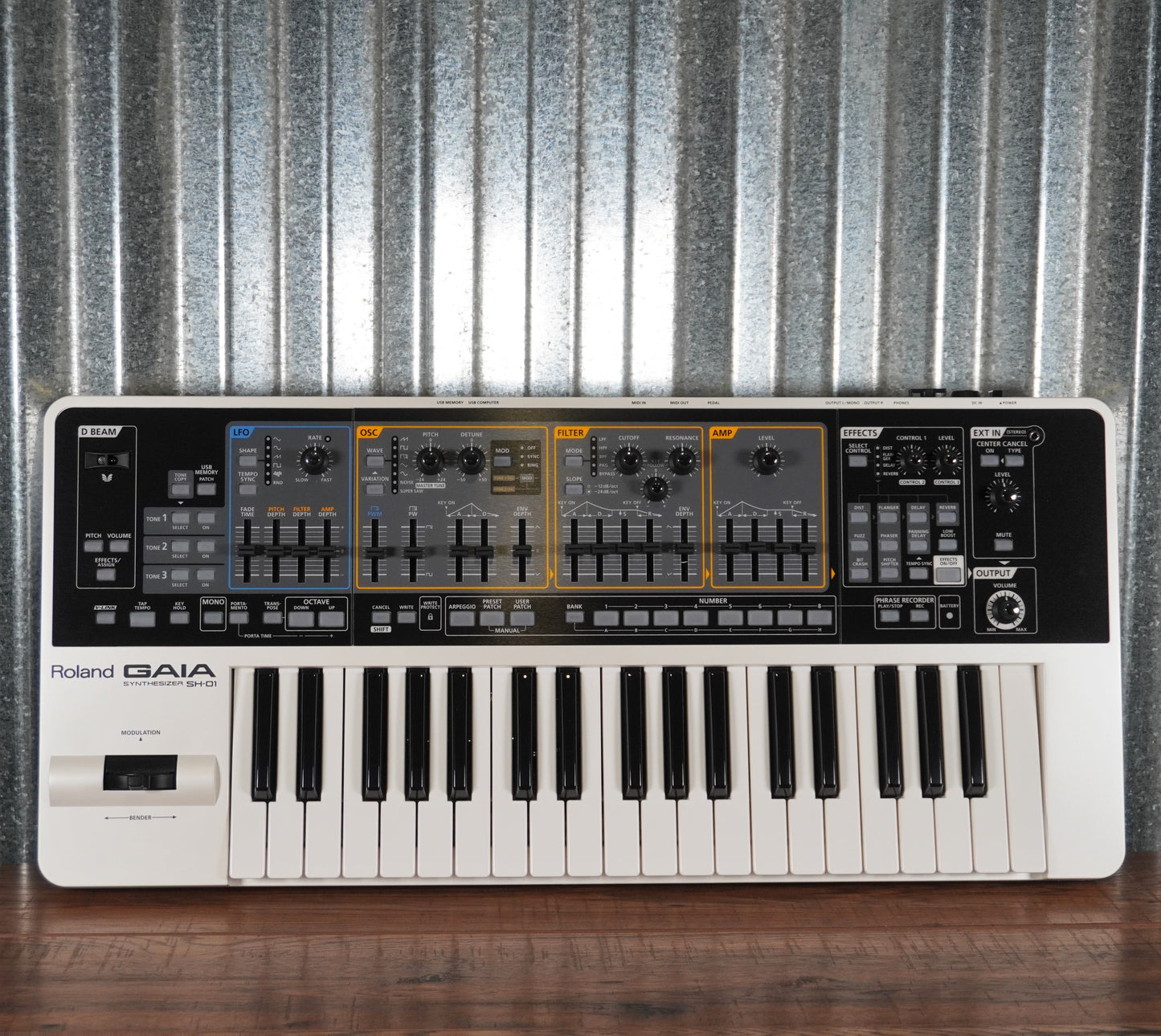

Roland GAIA SH-01 37 Key Synthesizer Keyboard

New

FLASH BACK, FLASH FORWARD
With its massive sound, hands-on ease, and affordable price, the GAIA SH-01 is a high-performance value with old-school charm. The triple-stacked engine puts potent virtual analog synthesis under your fingertips, yet the control panel is so fun, friendly, and inviting, even first-timers can create great sounds. The signal flow is simple to grasp, with logically arranged knobs, sliders, and buttons. Hands-on control and fat sound make this little powerhouse a joy for music students, songwriters, session players, and live performers of all styles and skill levels.

Huge sound with three virtual analog engines onboard, each with a dedicated oscillator, filter, amplifier, envelope, and LFO
Layer up to five simultaneous effects, including distortion, flanger, delay, reverb, low boost, and more
64-voice polyphony for massive sounds without note drop-out
Fun, hands-on control panel that’s great for instant gratification, and for learning synthesis
Lightweight, compact body with 37 full-size keys
Runs on AC or battery power for portable convenience
D Beam, arpeggiator, and Phrase Recorder onboard
USB ports for saving user patches to USB flash drives, and for audio/MIDI connection to computers

Triple-Fat Virtual Analog
Sink your teeth into the new triple-stacked virtual analog engine, comprising three complete synths for incredibly thick, powerful sound. Unleash the beef of three oscillators that drive a trio of multimode, resonant filters, multi-shape LFOs, and amplifiers, plus nine envelope generators. It’s like having three synthesizers in one! With 64 polyphonic voices onboard, the GAIA SH-01 makes it possible to play massive sounds without experiencing note drop-out.

Stackable Effects
From the silkiest reverb to the grittiest growl, the SH-01’s instantly selectable multi-effects will catapult your sounds into another spatial dimension. You can layer up to five simultaneous effects for dozens of variations. The onboard effects include reverb, distortion, fuzz, bit crash, flanger, phaser, pitch shifter, low boost, and delay with panning and tempo sync. Dedicated control knobs are provided for tweaking the effects in real time.

Portable Power
At less than 10 pounds, the GAIA SH-01 is lightweight, compact, and great for musicians on the go. The 37-note keyboard is full-size, however, so performers can play naturally and comfortably. The synth can be powered via AC or batteries* for the ultimate in portable convenience. A battery-life indicator on the front panel ensures that you won’t lose power unexpectedly. When used in conjunction with a battery-powered amp such as Roland’s CUBE Street, MOBILE CUBE, BA-330 or KC-110, the GAIA SH-01 can be played and heard anywhere!

Instant Control

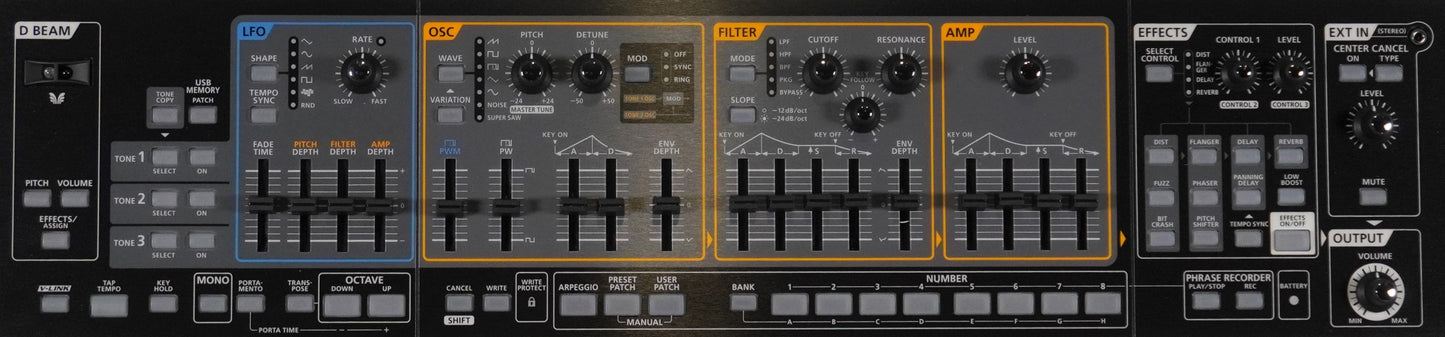

The front panel puts every control directly under your fingertips. There are no hidden menus, no nonsense. Just play and move the knobs and sliders, or wave your hands over the invisible D Beam for dramatic effects. The logically designed front panel shows the signal path from left to right. It helps beginners understand synthesis, while experienced players will love the instant gratification of hands-on control during performance.

Phrase Recorder and Arpeggiator
Hold a note or chord and let the arpeggiator create musical magic automatically for you. The tempo can be set via tap tempo. In addition, the onboard Phrase Recorder lets you record what you play on the keyboard as well as the movements of the knobs and sliders. The controller data can also be played back independently to complement the notes you play in real time.

USB and EXT IN
Connect directly to a computer (Mac or PC) with one simple USB cable, and stream audio directly to the software of your choice. The SH-01’s USB ports can also be used to transmit and receive MIDI data, and to store your patches and phrases (recorded with the Phrase Recorder) to a USB memory stick. For integrating with external devices, the SH-01’s EXT input lets you connect external audio sources such as an MP3-player and play along with your favorite songs or backing tracks - great for practice and live performance. Manipulate the incoming audio with three Center Cancel modes, which let you eliminate pre-recorded vocals, guitars, or bass.

Can be powered by eight rechargeable Ni-MH AA batteries.

keyboard 37 keys (velocity sensitive)
Maximum Polyphony 64 voices
Sound Generator
Section Virtual analog synthesizer sound generator (Number of part: 1)
(Oscillator + Filter + Amp + Envelopes + LFO) x 3
PCM sound generator (Number of parts: 15)
Patch Memory
Preset: 64
User: 64
OSC SECTION
Oscillator wave form
SAW
SQUARE
PULSE/PWM
TRIANGLE
SINE
NOISE
SUPER SAW Knobs/Sliders PITCH
DETUNE
Pulse Width
Pulse Width Modulation Envelope Attack
Decay
Envelope Depth Modulation Oscillator Sync
Ring Modulation
(Tone 2's OSC 2 is applied as modulation to Tone 1's OSC 1.)
FILTER SECTION
Filter Type LPF
HPF
BPF
PKG (-12 dB/-24 dB) Knobs CUTOFF
RESONANCE
KEY FOLLOW Envelope Attack
Decay
Sustain
Release
Envelope Depth
AMP SECTION
Knobs LEVEL Envelope Attack
Decay
Sustain
Release
LFO SECTION LFO Shape TRIANGLE
SINE
SAW
SQUARE
Sample Knobs/Sliders RATE
FADE TIME
PITCH DEPTH
FILTER DEPTH
AMP DEPTH
Tempo Sync ON/OFF EFFECTS
DIST Distortion
Fuzz
Bit Crash FLANGER Flanger
Phaser
Pitch Shifter DELAY Delay
Panning Delay (with tempo sync function)
REVERB Reverb
LOW BOOST Low Boost Knobs Control 1
Level OTHER Controllers Pitch Bend/Modulation lever
D BEAM Controller
Arpeggiator Preset pattern: 64
Phrase Recorder User: 8

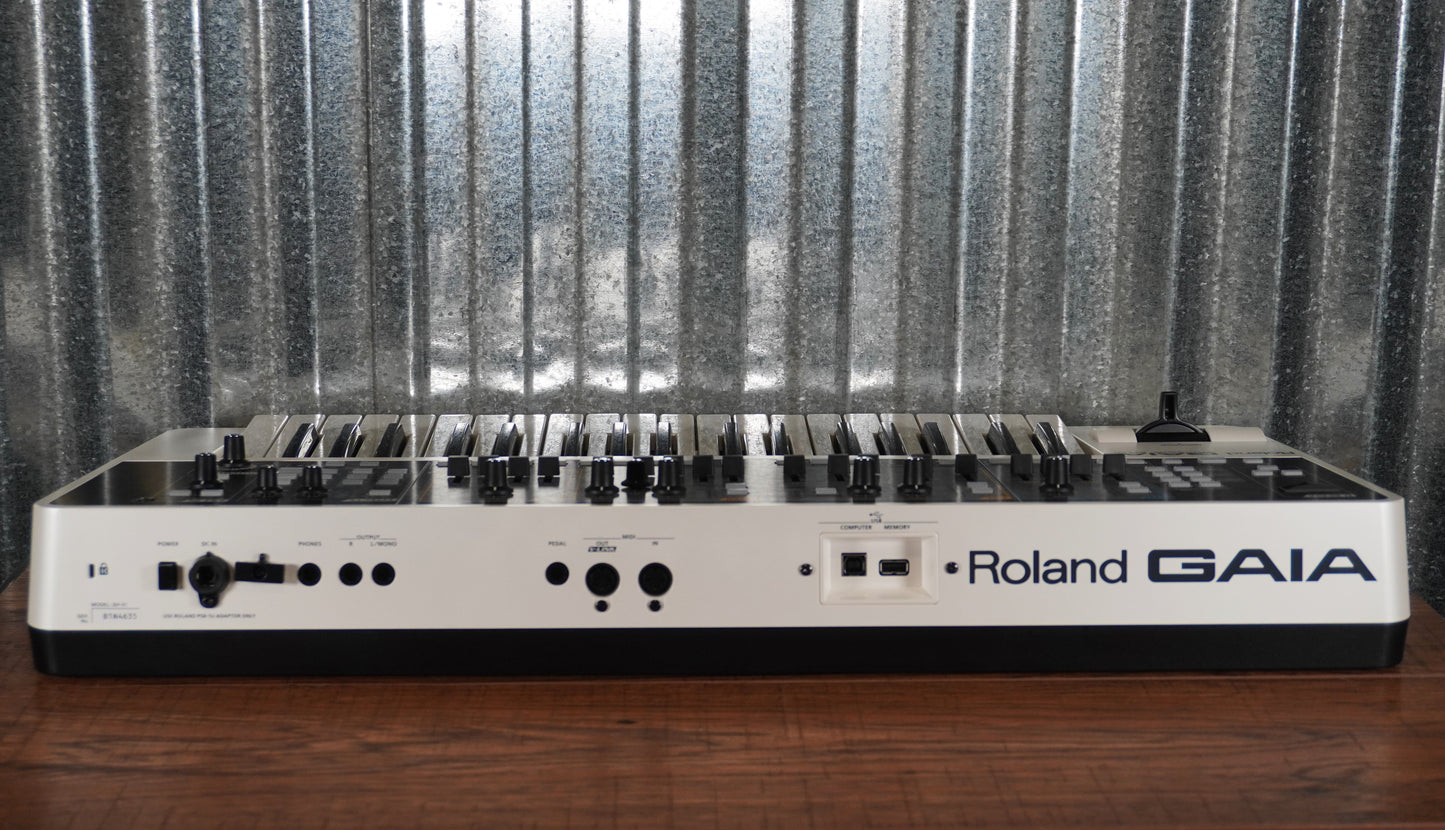

Number of Track: 1Jacks/Connectors
OUTPUT jacks (L/MONO, R) (1/4 inch phone type)
Headphone jack (Stereo 1/4 inch phone type)

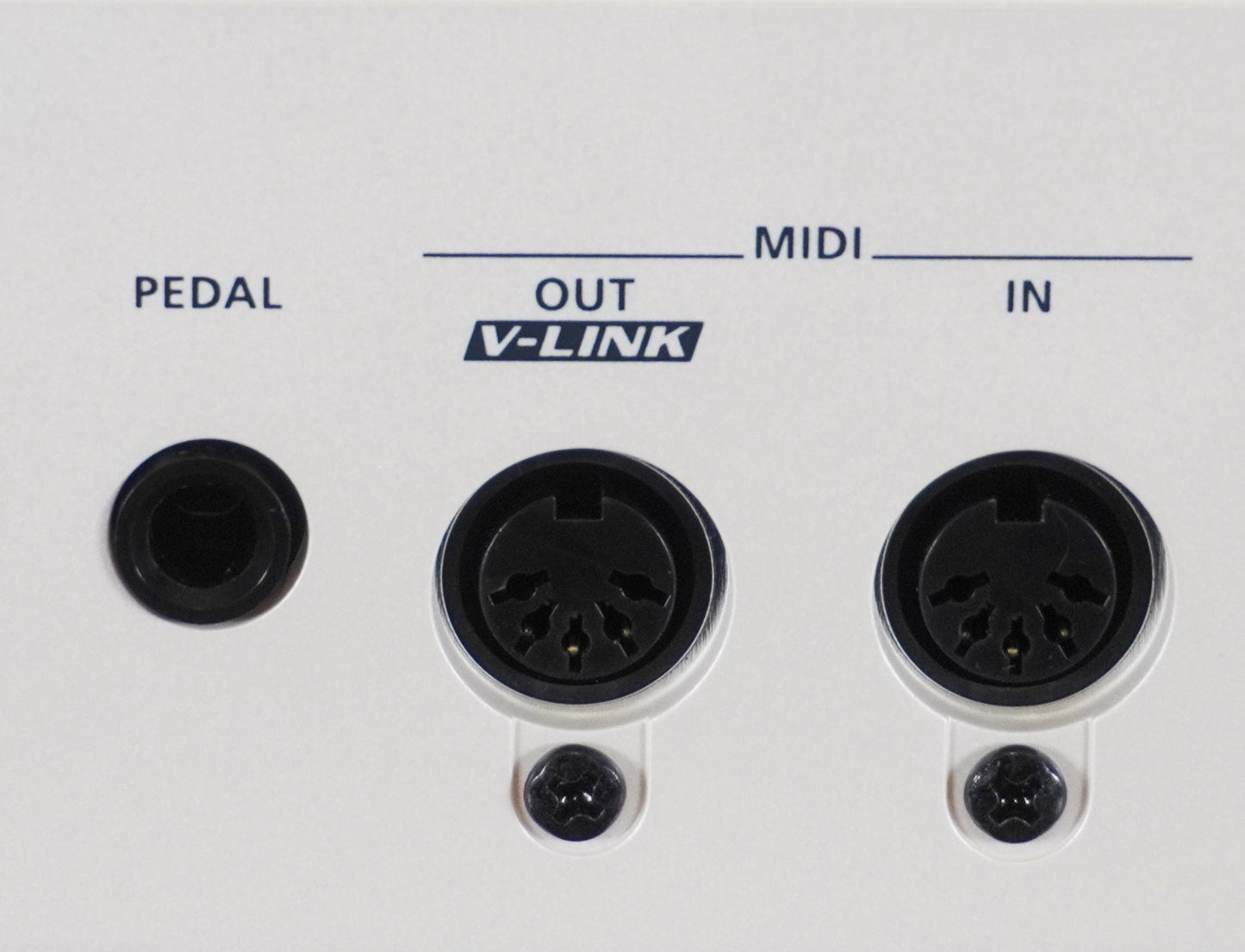

PEDAL jack (TRS phone type)
MIDI Connectors (IN, OUT)

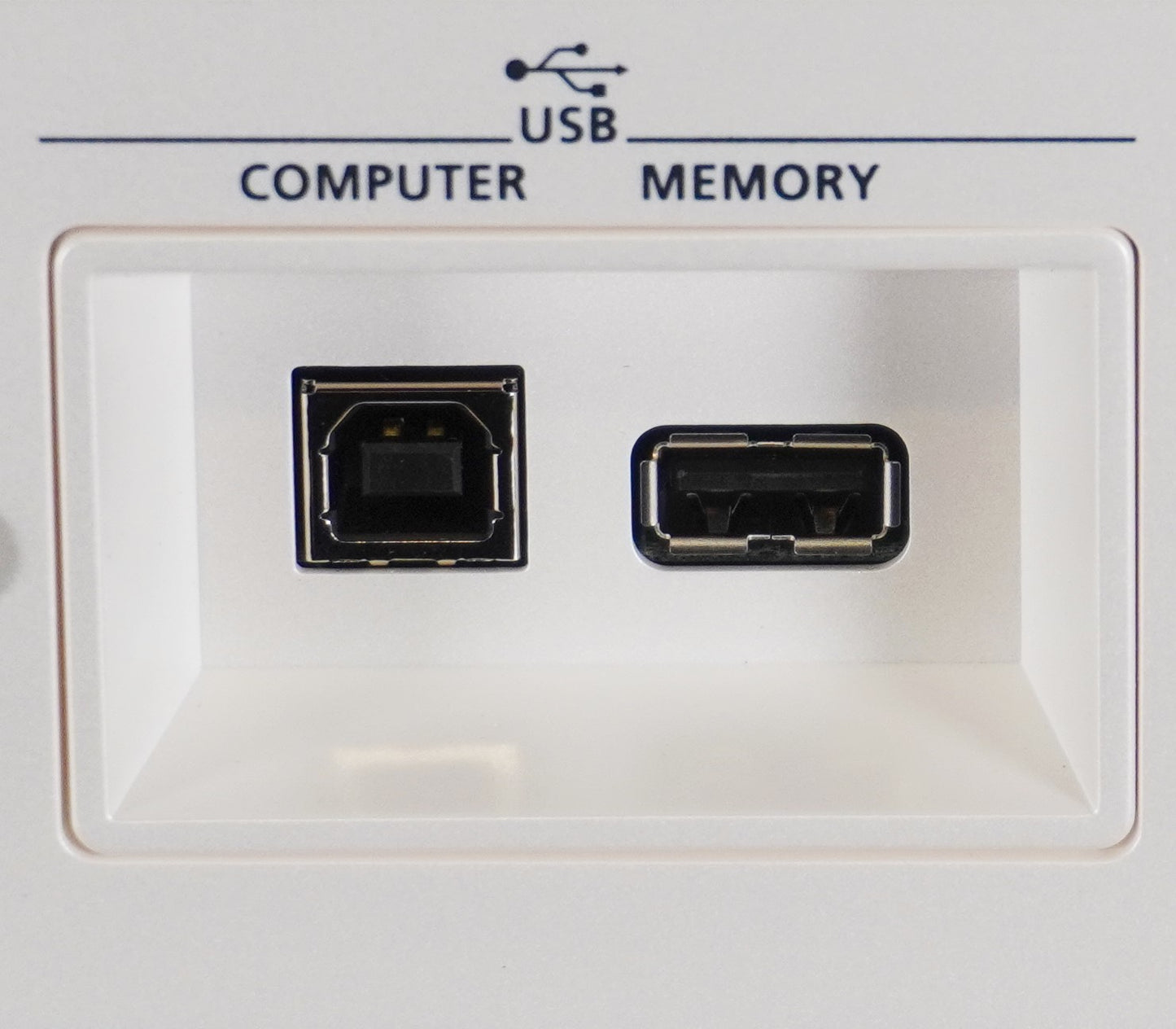

USB COMPUTER (supports USB Hi-Speed Audio/MIDI)
USB MEMORY (supports USB 2.0 Hi-Speed flash memory)
EXT IN jack (Stereo miniature phone type)
DC IN jack Power Supply DC 9 V (AC Adaptor or rechargeable nickel-metal hydride AA batteries x 8)
Batteries sold separately.
Zinc-carbon batteries or alkaline batteries cannot be used. Current Draw600 mA
Battery life for continuous use Approximately 5 hours
Using rechargeable nickel metal hydride batteries
Approximately 4 hours if USB memory is connected

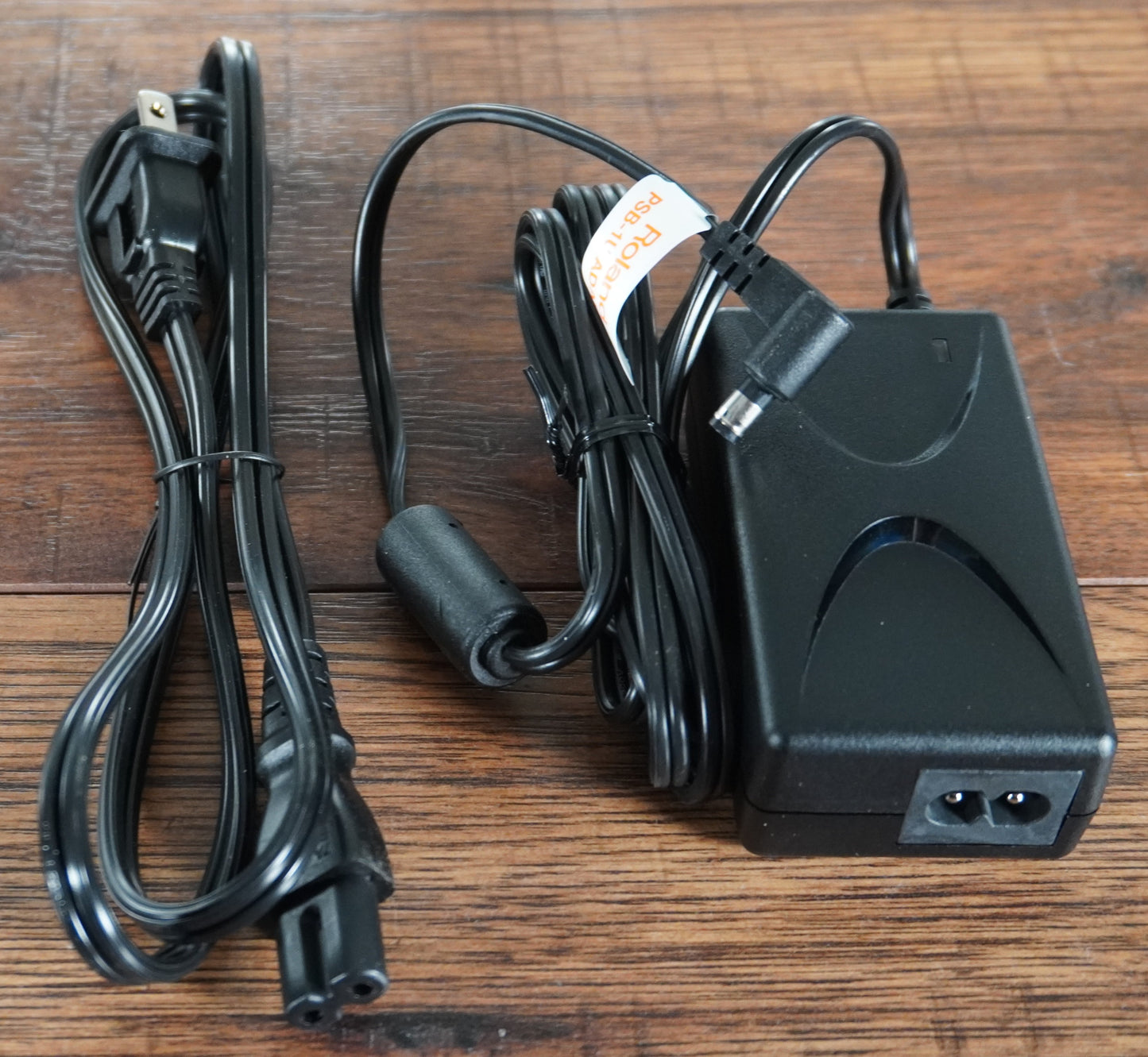

Differs depending on the conditions of use Accessories Owner’s Manual, Guide Book, CD-ROM (USB DRIVER), DVD Video, AC Adaptor (PSB-1U), Power Cord Options Keyboard Stand: KS-18Z(*), Pedal Switch: DP series, Expression Pedal: EV-5, USB Memory: M-UF2G
Make sure that this instrument is mounted at a height that is no higher than 1 meter. SIZE AND WEIGHT Width689 mm
27-3/16 inchesDepth317 mm
12-1/2 inchesHeight100 mm
3-15/16 inchesWeight4.2 kg
9 lbs. 5 oz.
