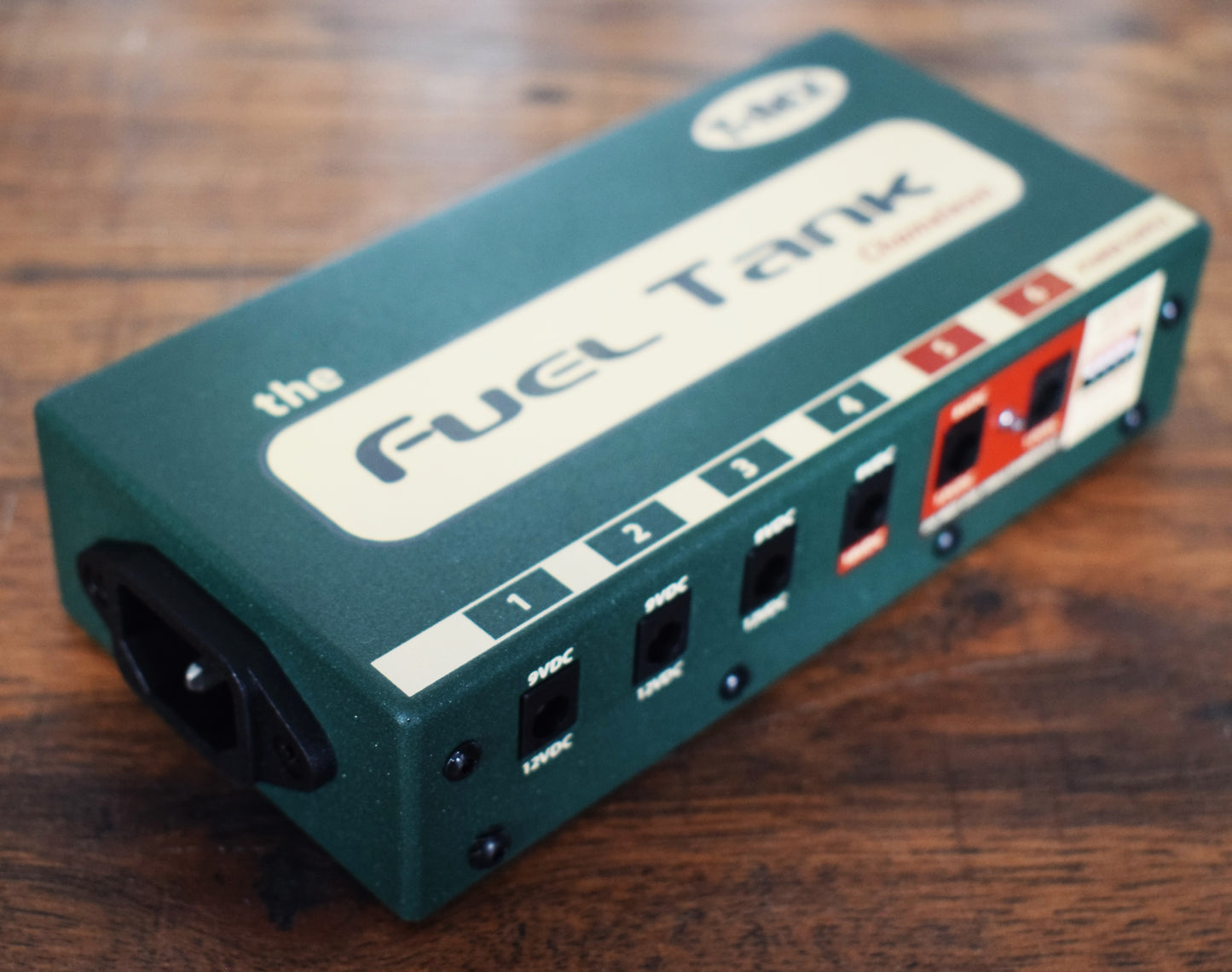

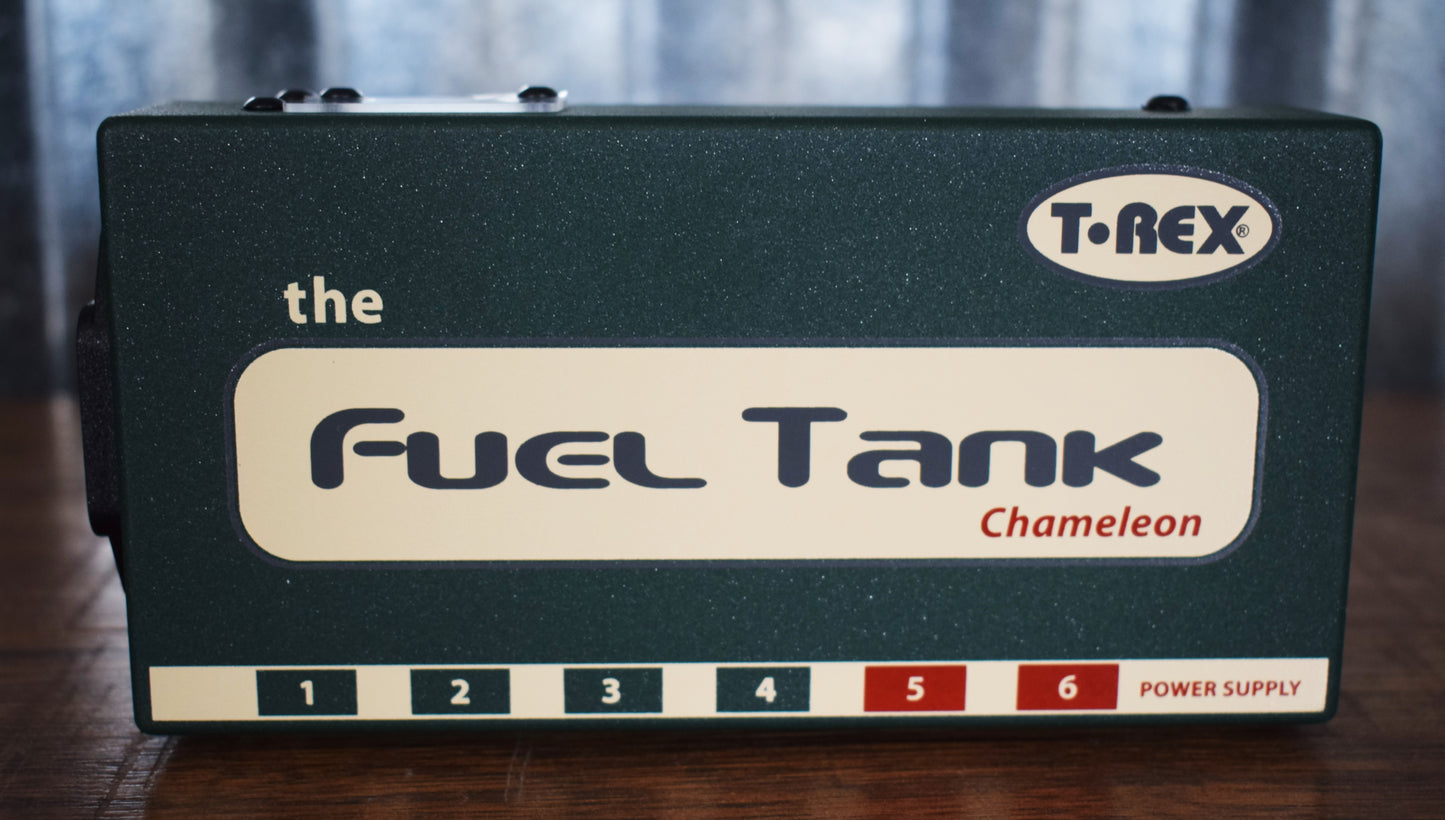

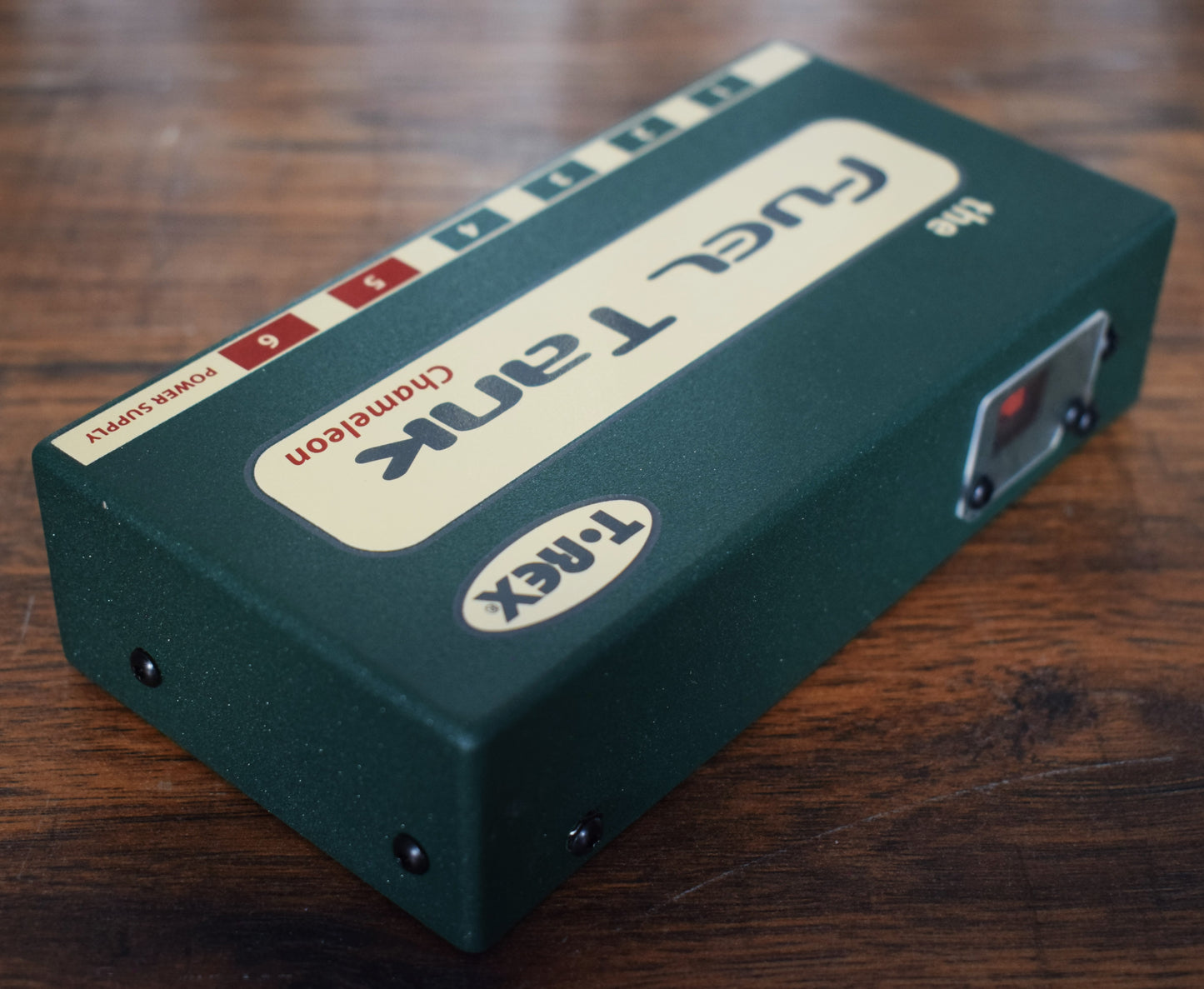

T-Rex Fuel Tank Chameleon 9V 12v 18v Pedalboard Guitar Effect Power Supply

T-Rex Fuel Tank Chameleon 9V 12v 18v Pedalboard Guitar Effect Power Supply

Regular price $ 149.00
Regular price $ 0.00 Sale price $ 149.00
Sale Sold out
Shipping calculated at checkout.

Specialty Traders is an Authorized T-Rex Dealer!

T-Rex Fuel Tank Chameleon 9V 12v 18v Pedalboard Guitar Effect Power Supply

New

We strongly recommend using the proper power supply for any pedal. Daisy chain power supplies may not supply enough power when using multiple pedals or introduce noise into the chain. Consult the pedal manual when available for manufacturer recommended power specifications.

4 SEPARATE VOLTAGE OPTIONS - POWER SUPPLY
Enter the new Fuel Tank Chameleon, the most versatile power supply T-Rex has ever produced. Built for players with a large number of diverse pedals, Fuel Tank Chameleon offers all the advantages of our other Fuel Tank power supplies, plus an unprecedented 4 separate voltage options.

PART OF THE FUELTANK FAMILY
The Fuel Tank Chameleon is only the latest addition to the T-Rex Fuel Tank family. Our original Fuel Tank Classic features 9V DC, 12V DC and 12V AC outlets in three isolated blocks of 500mA each and is ideal for medium-sized pedal boards. It comes with lots of single patch cables and a multiple link cable. The Fuel Tank “Juicy Lucy” powers 5 12V pedals and also offers great extras, like multiple unit linking. The baby of the family – Fuel Tank Junior – is a good choice for a small number of 9V pedals. It offers both current doubling to 240 mA and voltage doubling to 18V.

MISCELLANEOUS
Placement; as far away from pedals as possible (preferable at least last in the chain close to Analog/drive pedals) in order to reduce noise interference in the signal chain.

YOU´VE GOT THE PEDALS, WE´VE GOT THE POWER
5 outputs each with 300 mA (= 1500 mA)
Output 5/6 choice of either 9/12v DC or 12v AC
Choice of 9V DC, 12V DC, 12V AC or 18VDC -150mA
Noise-cancelling galvanic isolated outputs
Traditional EI Transformer
Several different voltage types served
Current doubler = the possibility of as much as 600 mA
Switchable 115V or 230V
Compact, rugged, road-ready design

TECH SPECS
Connections Chameleon has 6 isolated outpurts:
All 9V and 12V outlets delivers 300mA. When outlet 4 is switched to 18V DC it delivers 150mA
All outlets are centre negavive
Input mains voltage Switchable 115V or 230V mains
Rated power consumption Max. 40W
Fuse T315mA/250V

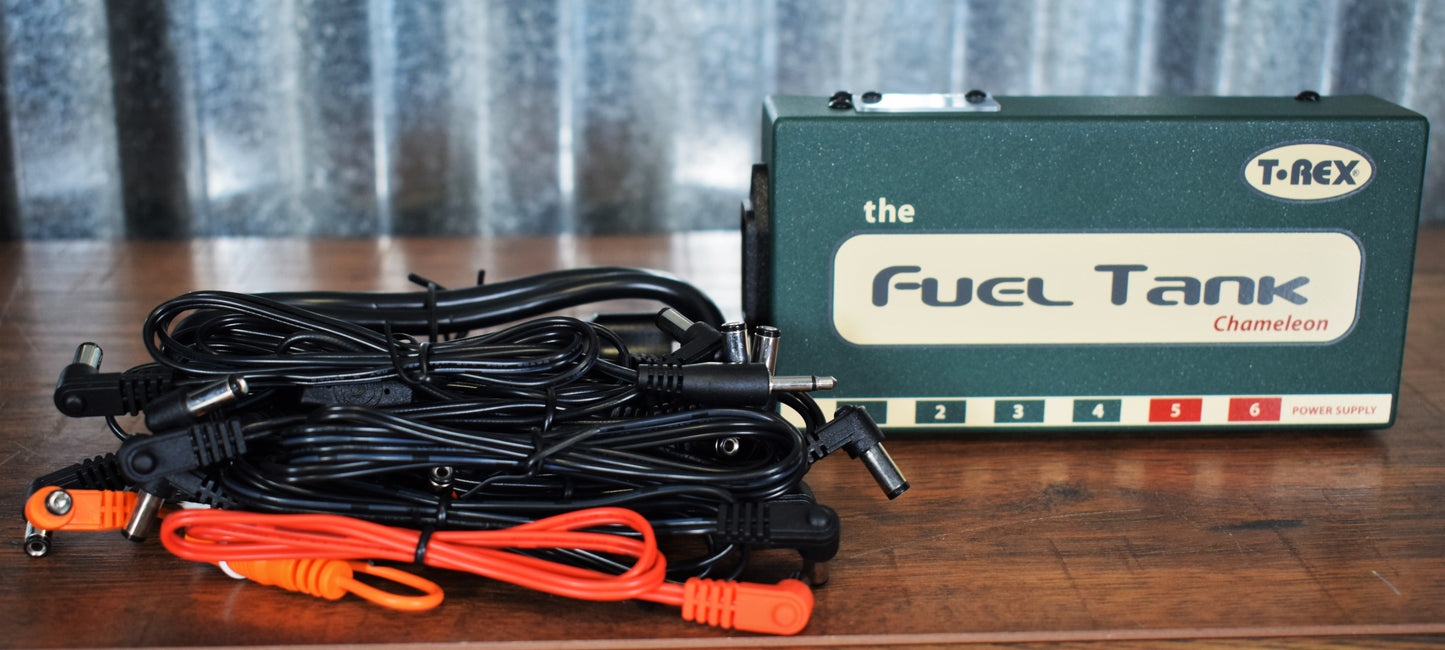

Cables 1x Red AC cable with 2,1mm - 2,5mm connectors for use on the 12V AC outlet
1x Orange polarity inverter cable with 2.1 mm barrel plug - 2.1 mm female barrel plug
1x Black DC cable with 2,1mm DC - 3,5mm mini-jack connectors
2x Black 20cm DC cable with 2,1mm - 2,1mm connector
4x Black 50cm DC cable with 2,1mm - 2,1mm connector
1x Black 75cm DC cable with 2,1mm - 2,1mm connector
1x Black 100cm DC cable with 2,1mm - 2,1mm connector
1x Mains power cable (region specific)
Pedal size incl. knobs (W x H x D) 160 x 38 x 80 mm / 6,3 x 1,5 x 3,2 inch
Weight excl. packaging 0,790 kg / 27,87 oz
