T-Rex Quint Machine Octave & 5th Pitch Shifter Guitar Effect Pedal
T-Rex Quint Machine Octave & 5th Pitch Shifter Guitar Effect Pedal
Couldn't load pickup availability
Specialty Traders is an Authorized T-Rex Dealer!
T-Rex Quint Machine Octave & 5th Pitch Shifter Guitar Effect Pedal
New
We strongly recommend using the proper power supply for any pedal. Daisy chain power supplies may not supply enough power when using multiple pedals or introduce noise into the chain. Consult the pedal manual when available for manufacturer recommended power specifications.
HIGHLY TUNABLE OCTAVES + FIFTH
Classic octave doubling is cool, but throwing in a 5th up and giving all 3 modulated sounds their own volume control opens up a whole new world. Sound like a 12-string. Sound like an organ. Get rid of your dry signal and sound like a synth just owning that lonely heart. We built the T-Rex Quint Machine to give you more, and it will keep you discovering new sounds for years.
A WHOLE NEW WORLD OF SONIC POSSIBILITIES
Octave up, octave down, 5th up
Individual volume controls, plus master mix
Ultra-fast polyphonic tracking
Replicate organ, synth or 12-string sound
Play power chords on a single note
TECH SPECS
Input impedance @ 1KHz Higher than 1M Ohm
Output impedance @ 1KHz Lower than 1K Ohm
Power supply 9V DC (T-Rex FuelTank)
Minimum power supply voltage 8V DC
Maximum power supply voltage 12,5V DC
Current draw @ 9V DC 145 mA
Maximum input signal V p-p 3V p-p

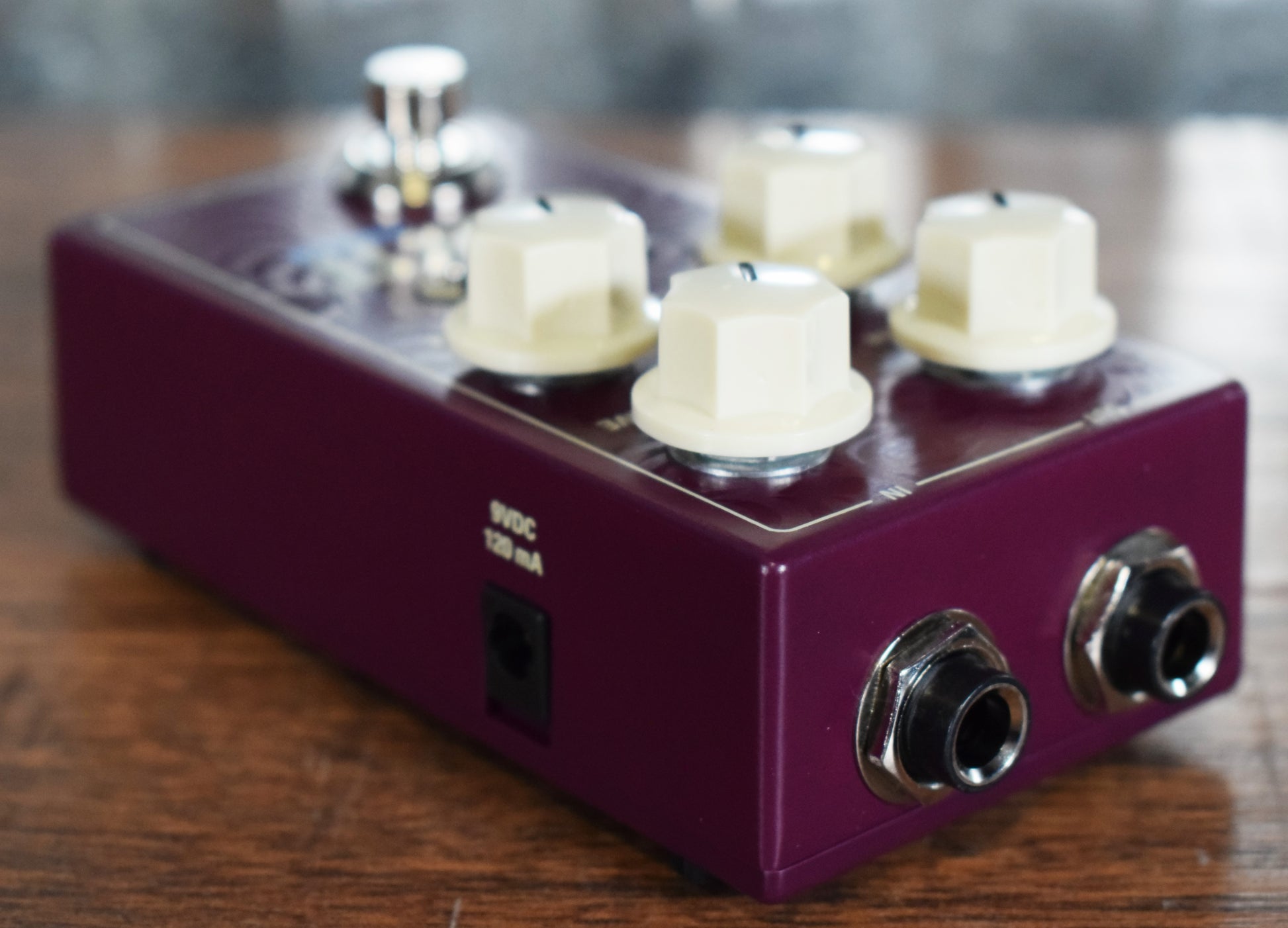

External connectors input jack, output jack, 9V DC jack

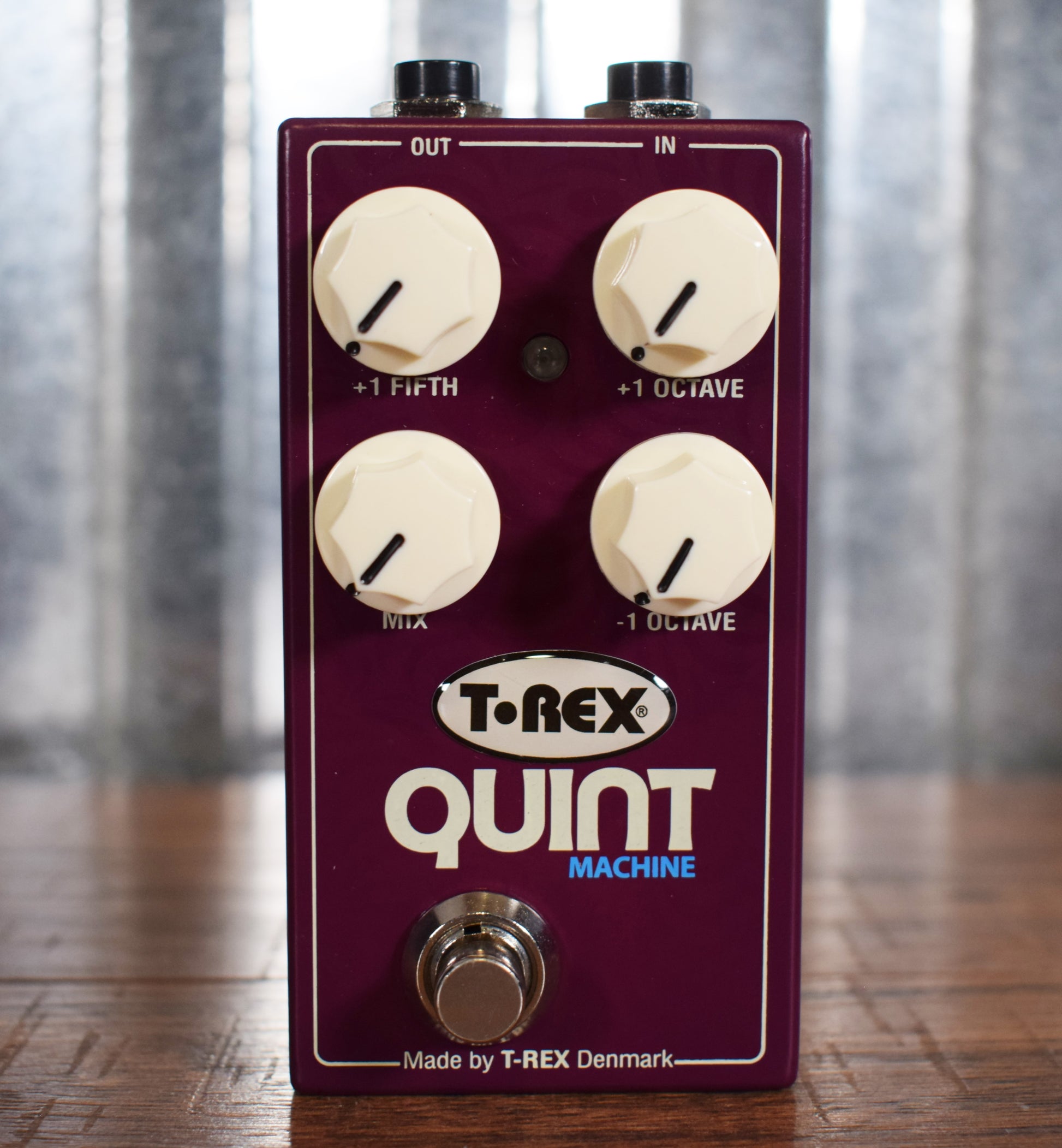

Controls on/off switch, mix, +1 octave, -1 octave, +1 fifth
Pedal size incl. knobs (W x H x D) 60 x 50 x 117 mm / 2,4 x 2 x 4,6 in
Weight excl. packaging 0,21 kg / 7,4 oz
