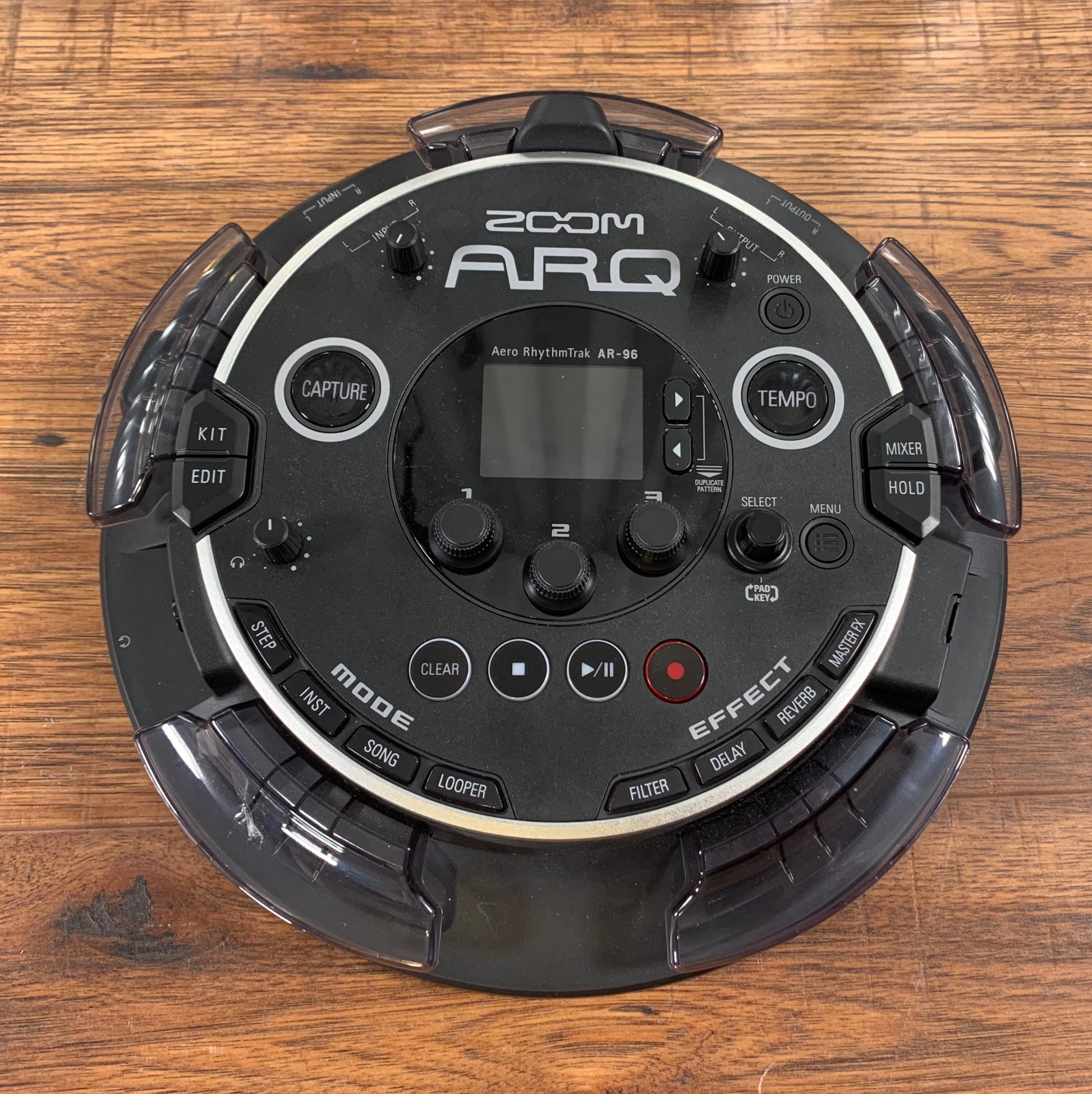

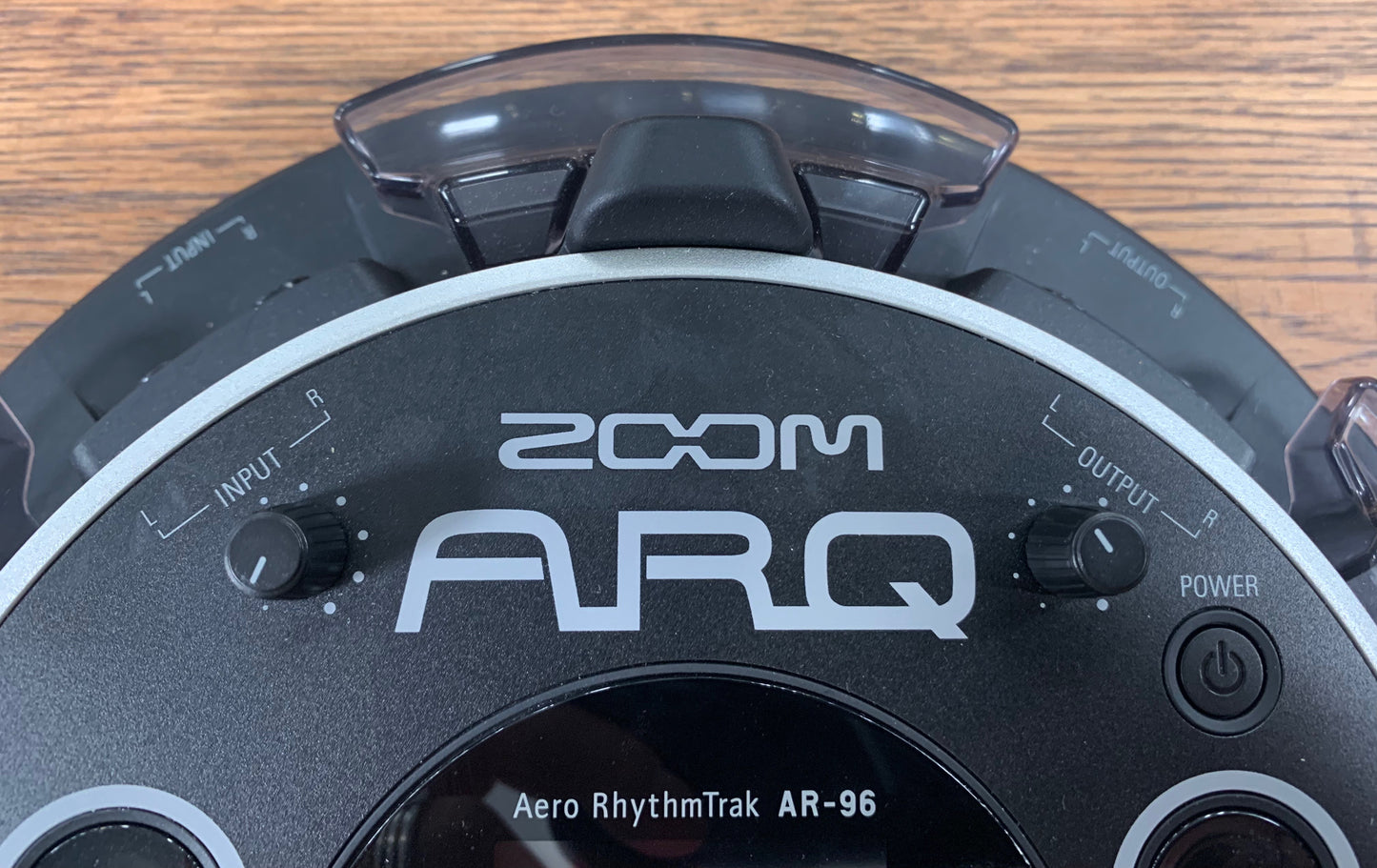

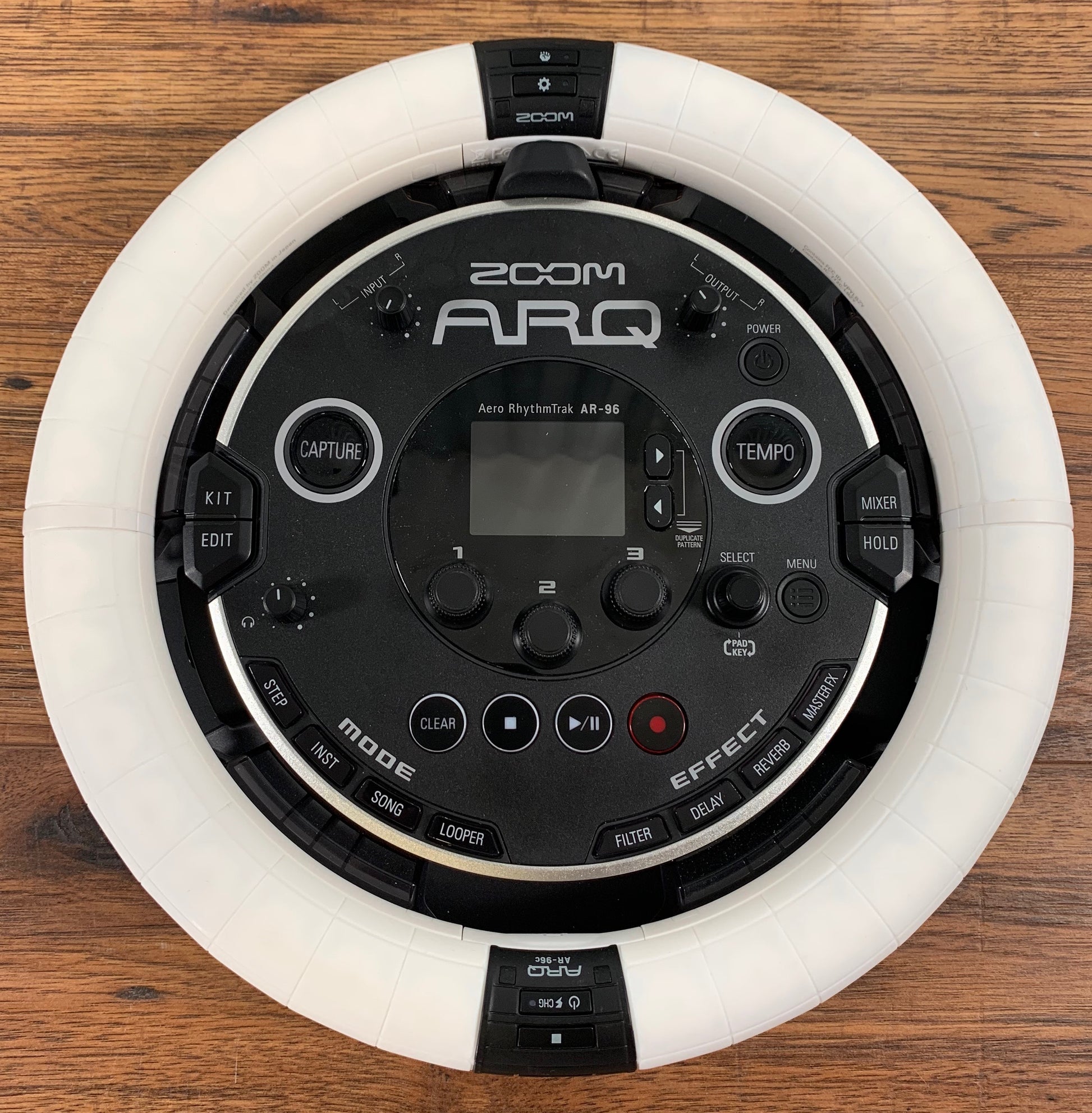

Zoom ARQ AR-96 Aero Rhythm Trak Used

Zoom ARQ AR-96 Aero Rhythm Trak Used

Used with wear associated with use. Minor cosmetic scratches/scuffs from handling and play. Noteworthy blemishes or issues will be described and pictured

THE POWER TO CREATE EVERYTHING ANEW

All-In-One Production and Live Performance Instrument
Music is a voyage of discovery. One that now goes much further with the creation of the ZOOM ARQ AR-96 Aero RhythmTrak.

The ZOOM ARQ AR-96 is an all-in-one production and live performance instrument which includes an integrated drum machine, sequencer, synthesizer, looper, and MIDI controller with a built-in accelerometer. Even more, ARQ is freedom. With its wireless Bluetooth Ring Controller, you can escape the booth, move the music, and get in front of the crowd.

Features At A Glance
Drum machine, sequencer, synthesizer, looper, clip launcher, and MIDI controller in one device
Includes 468 drum/instrument sounds ("one-shot" sampled waveform sounds), 70 types of synthesizer sounds, and dozens of digital effects
Ring Controller can be used wirelessly as a handheld aerial instrument and to launch audio clips from DAW software
96 velocity- and pressure-sensitive pads and 160 programmable color LEDs
Grip Detection to automatically prevent accidental note triggering
3-axis accelerometer for altering effects parameters and sending MIDI control messages

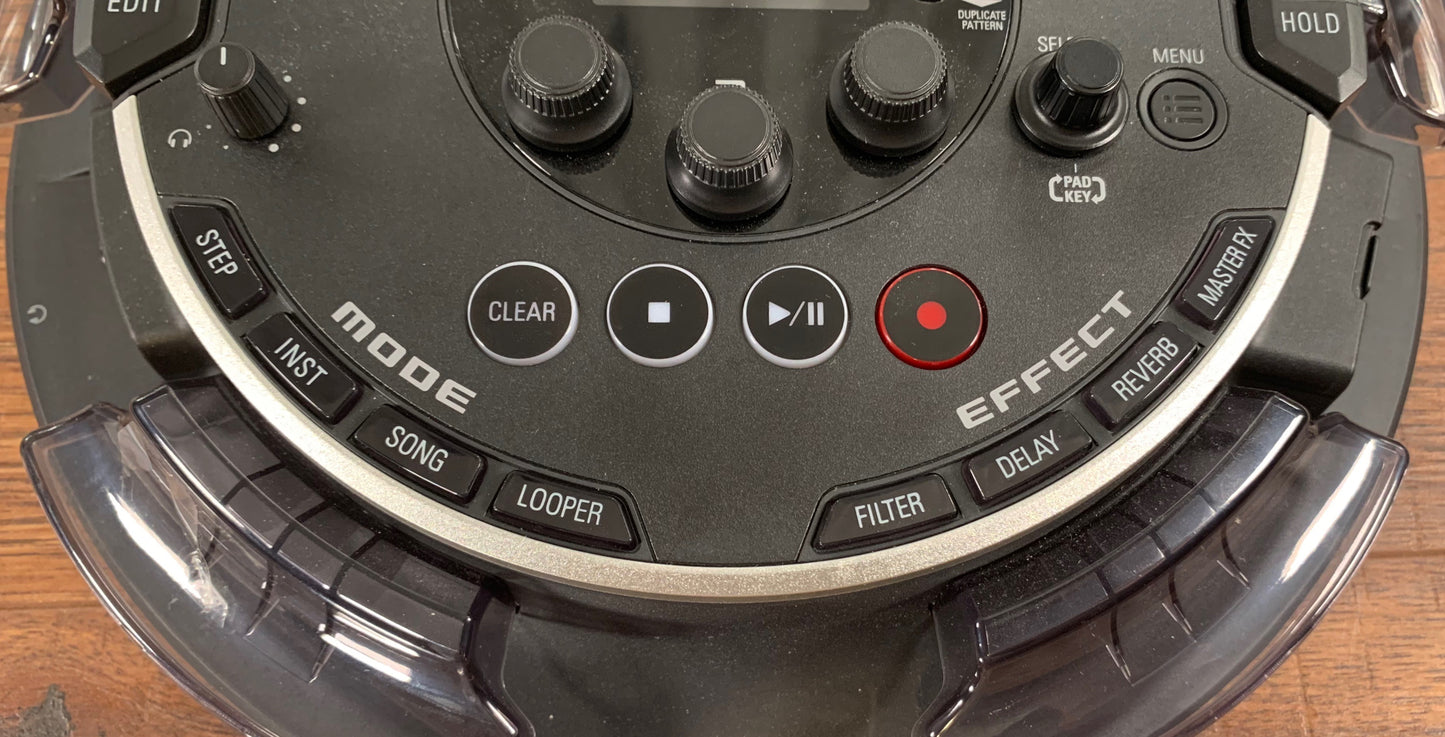

Dedicated buttons for sequence REC/PLAY/STOP and for effects on/off
Use up to 5 effects simultaneously, applied to overall drum kit or individual drum sounds
Split mode allows one instrument to be assigned to multiple pads for ease of input
Onboard mixer for setting volumes and muting/soloing parts
Flexible precount, quantize, swing, and beat settings
Audible and/or visual click

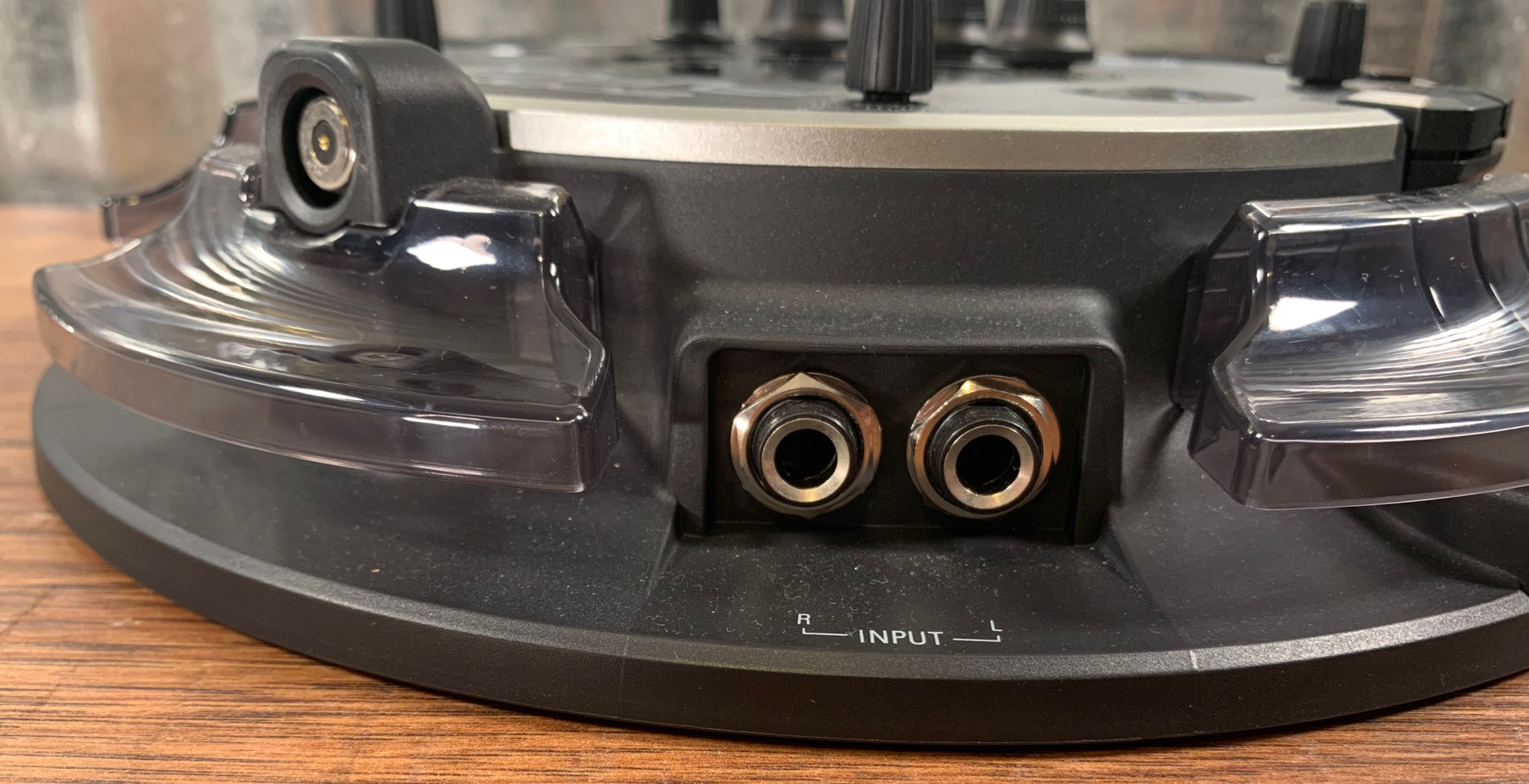

Dual 1/4" inputs for phrase recording and loop creation

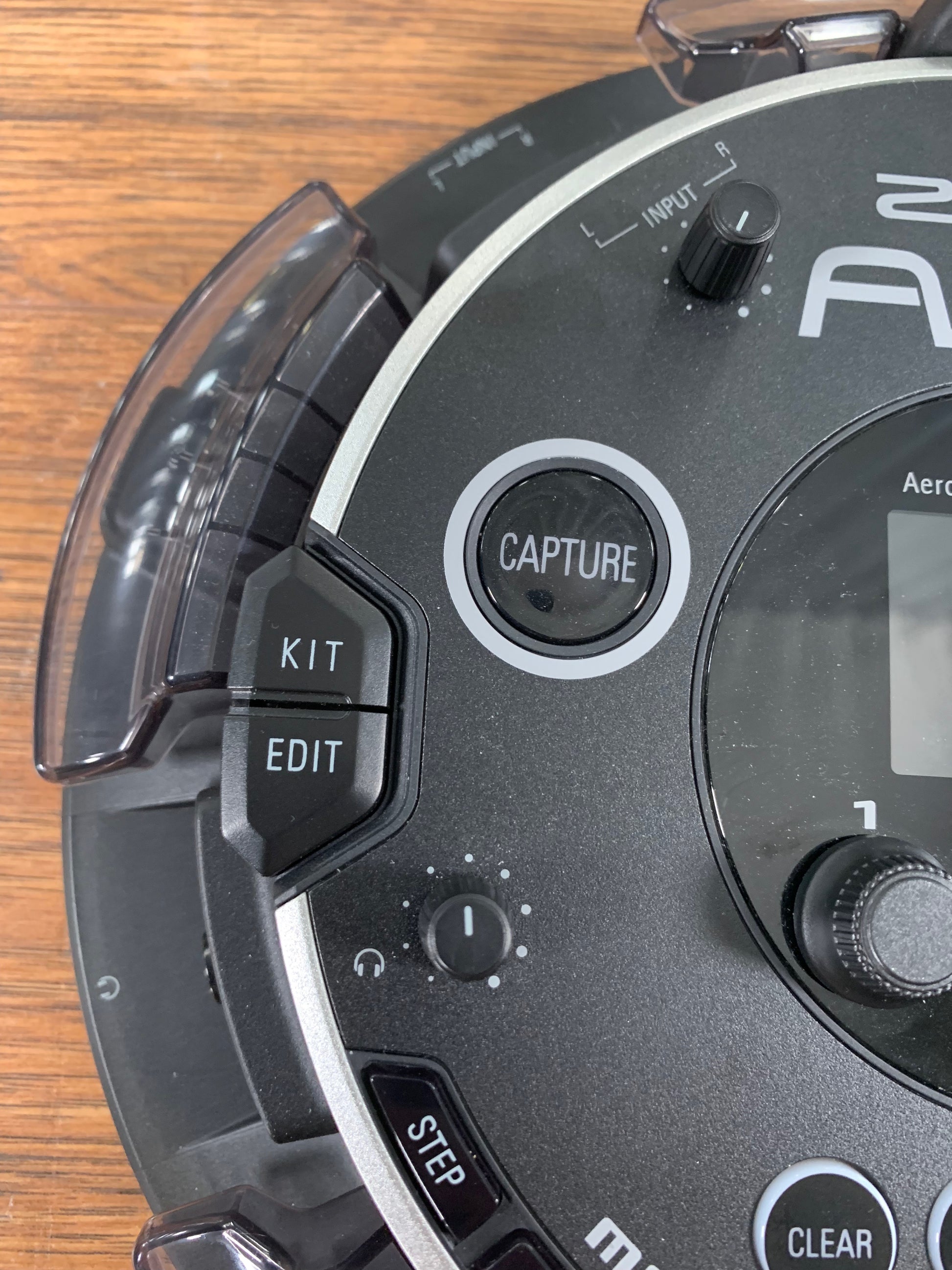

Audio capture from patterns and songs, from SD card, or from incoming audio signal
Create up to 96 mono or stereo loops, play up to 16 mono loops simultaneously
Loop start and end points can be adjusted manually
Loop tempo synchronization, pitch change, and reverse playback functions
Programmable synthesizer engine
538 oscillator types and 16-voice polyphony
Sound-shaping controls include effects, envelope generators, and stepped and smooth modulation
Play sounds chromatically, or choose from dozens of preset scales in any key
Adjustable pad velocity and pressure sensitivity

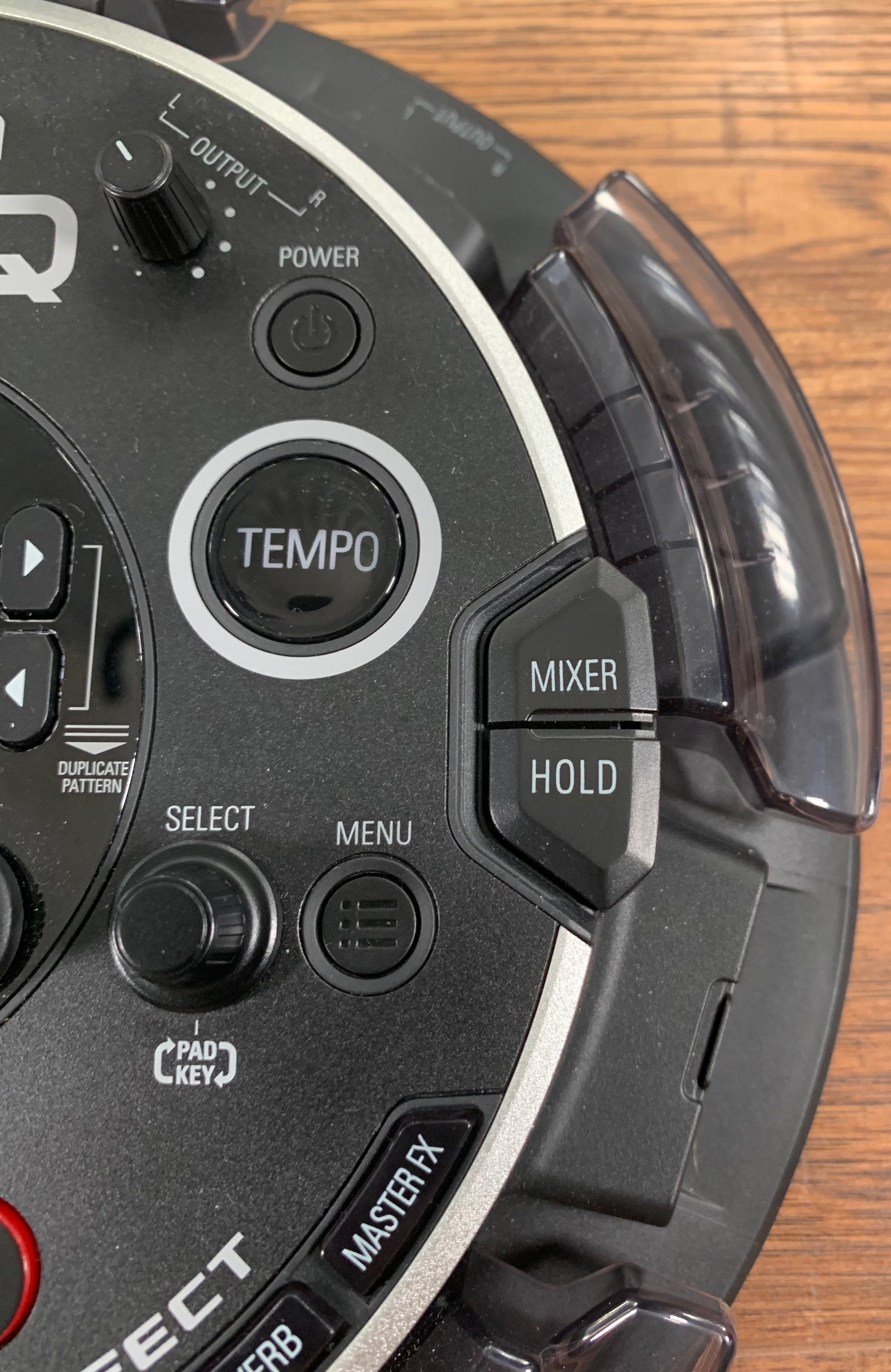

Dedicated tap tempo button for synchronization
Selectable LED light-show animations

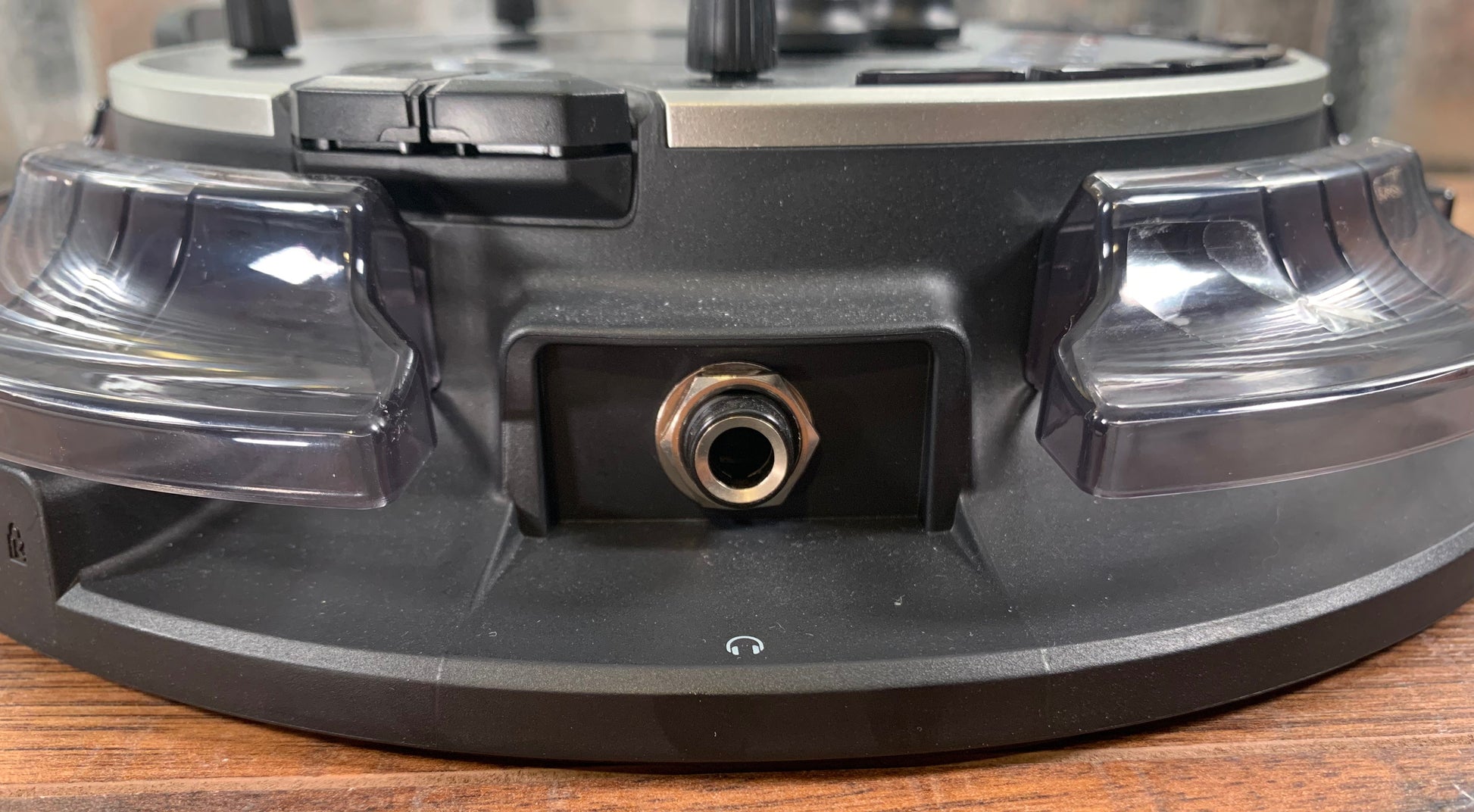

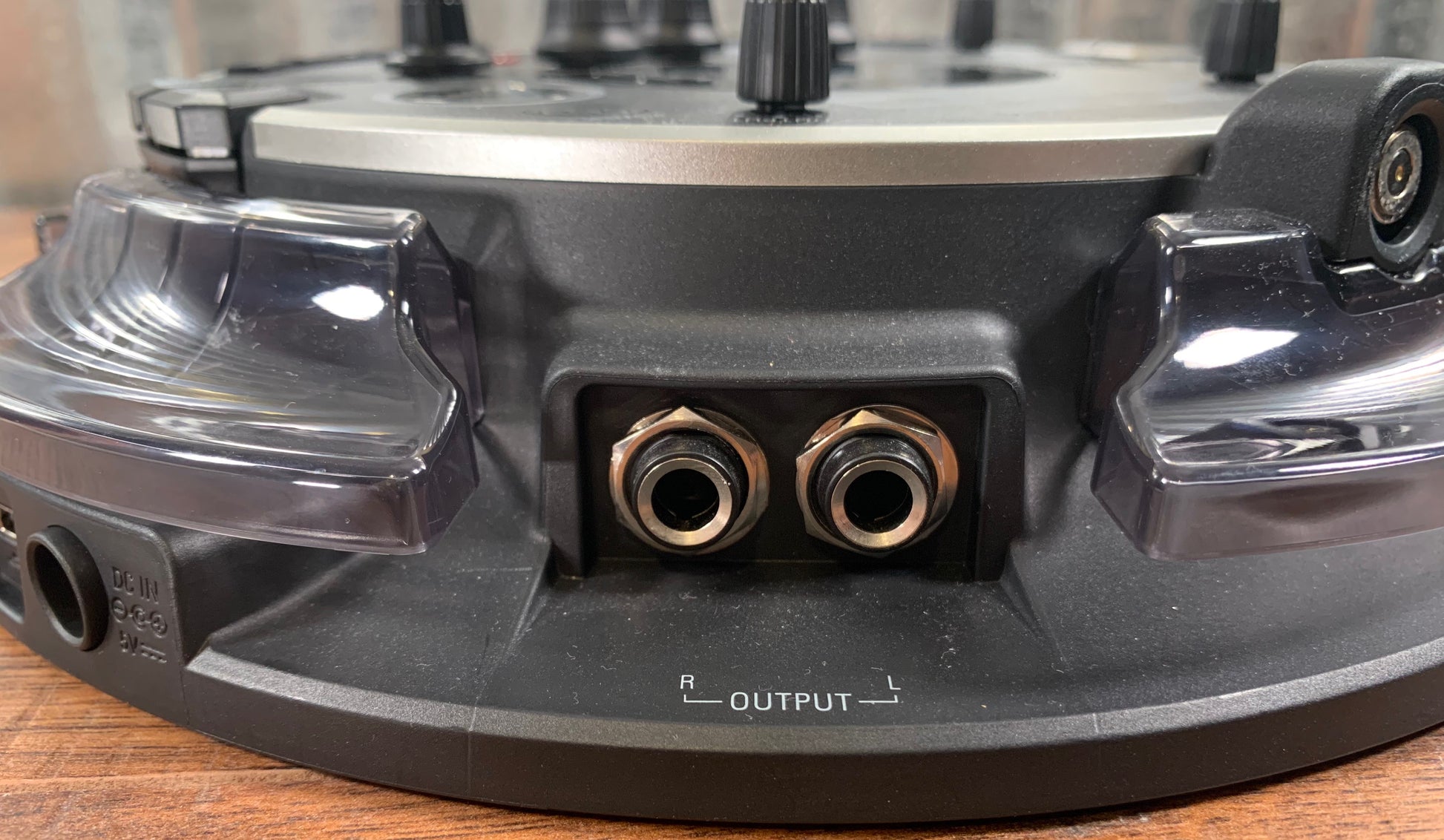

Dual 1/4" line outputs and separate 1/4" headphone output with dedicated volume control

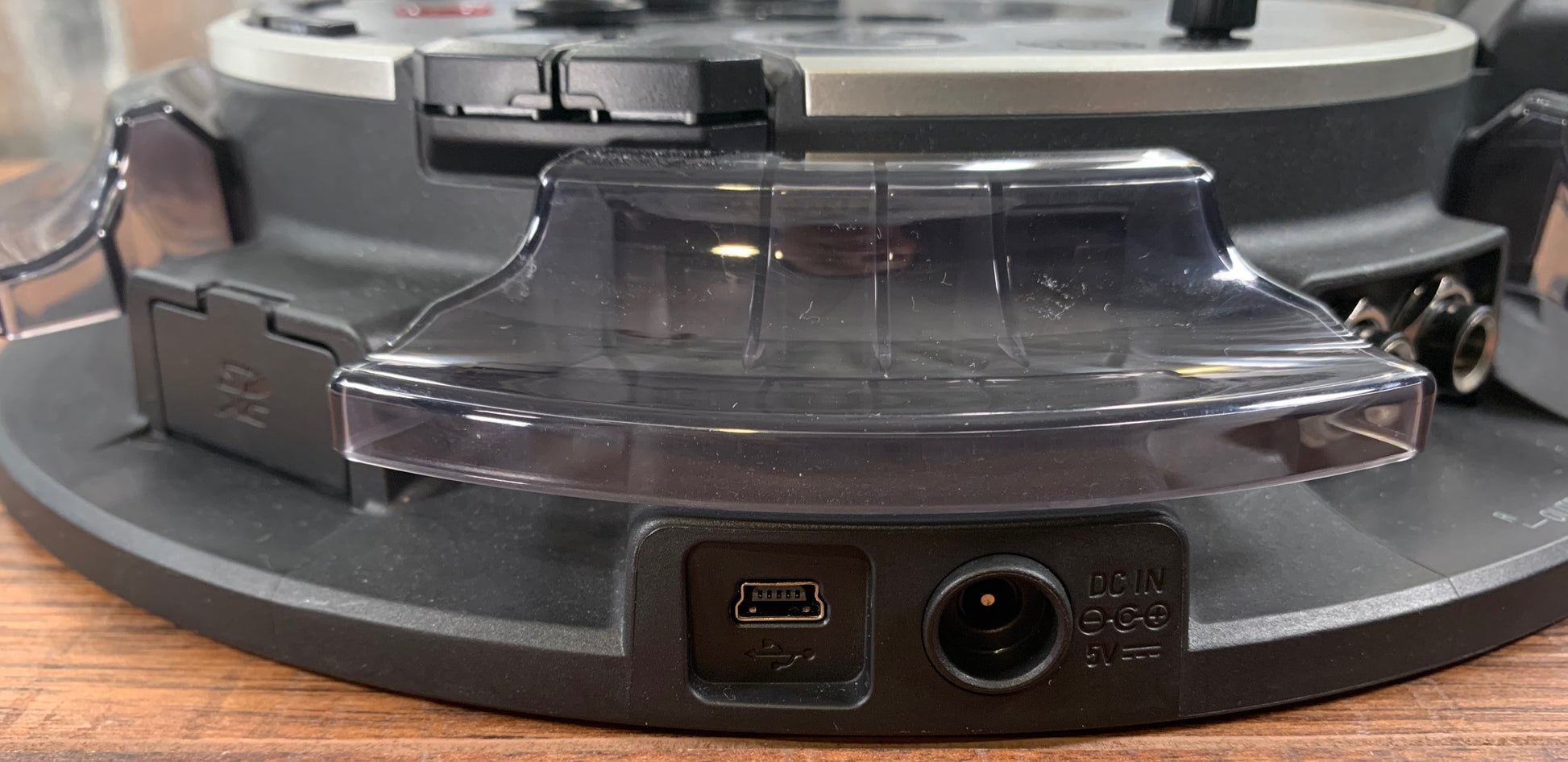

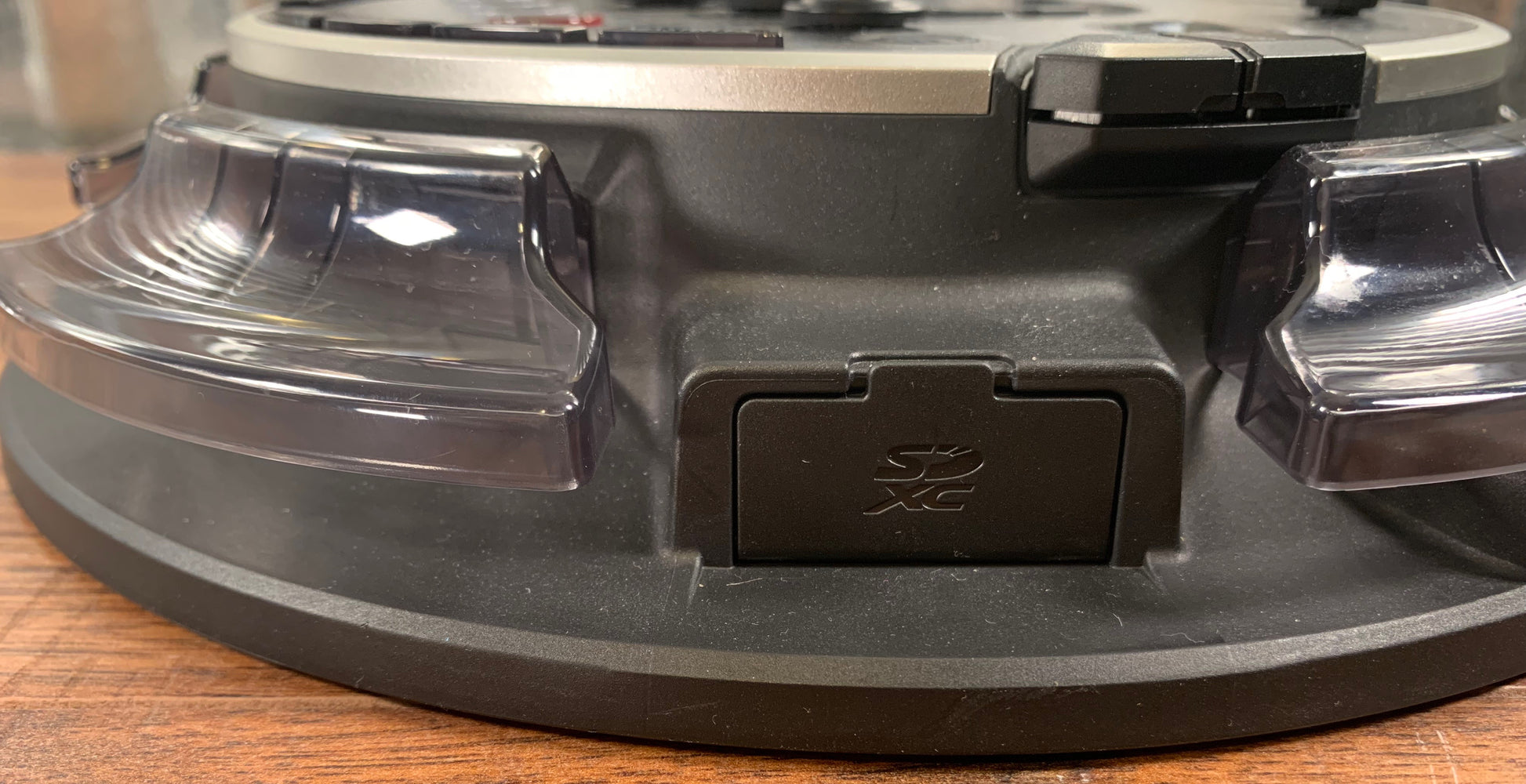

USB port and SD card slot
Bluetooth LE for low power consumption and extended usage times

SPECS
CONTROLLER: PADS
Number of pads: 96
Velocity sensitive: Yes
Pressure sensitive: Yes
Sensitivity curves: 4 types
Velocity (send): Yes
Aftertouch (send): Yes
Number of LEDs : 160
LED color: Multi
Accelerometer: Yes
Number of parameter knobs: 3
Number of control keys: Base Station: 18

Ring Controller: 11
INTERFACEUSB MIDI: Yes
Bluetooth LE: Connect to Mac/iOS via MIDI over Bluetooth LE
LINE INPUTS
Type: 1/4" Phone
Number of inputs: 2
Function: Line
Impedance: 50 kO
Gain: +10~-65 dB
Dynamic range: 92 dB typ (IHF-A)
LINE OUTPUTS
Type: 1/4" TRS Phone
Number of outputs: 2
Impedance: 200 O
Dynamic range: 106 dB typ (IHF-A)
PHONES Type: 1/4" Stereo Phone(20mW x2 [32 O])
Impedance: 10 O
Dynamic range: 102 dB typ (IHF-A)
SOUND SYSTEM
Internal sound engine: Yes
Sampling frequency: 44.1 kHz
Bit rate: 24-bit
Maximum polyphony: 16
Number of instruments: 33
Number of oscillator types: 538 (468 PCM sounds + 70 synth sounds)
Number of patterns: 384 (176 preset)
Number of filter types: 7
Number of Insert FX types: 11
Number of Delay types: 3
Number of Reverb types: 3
Number of Master FX types: 14
Number of Modulation types: 8
Number of Modulations: 2
Number of Envelope Generators: 2
SEQUENCER
Number of Steps: 32
Motion Sequences: 256 motions
Song mode: Yes
Tempo: 40.0~250.0 bpm
LOOPER: AUDIO CAPTURE
Sampling frequency: 44.1 kHz
Bit rate: 16-bit
MEDIA
Media type: SD, SDHC, SDXC
Internal memory: 32 MB
POWER SOURCE: CONTROLLER
Type: Li-ion Polymer, DC 4.2V maximum voltage, DC 3.7V nominal voltage, 450mAh capacity
Battery life: About 4.5 hours (differs according to use conditions)
Recharging times: 2.5 hours
POWER SOURCE: BASE STATION
External Power: AC adapter (AD-14)
Rated Output: DC5V / 1A (center positive)
Power Consumption:
Max: 1.25W (No charging)
Max : 4.5W (Charging)
OS SUPPORT: BLUETOOTH LE
Windows: No
Mac OS: 10.10.4 or later
iOS: 8.0 or later
OS SUPPORT: USB MIDI
Windows:
Windows 7 SP1 or later
Windows 8 (including 8.1)
Windows 10
Mac OS: 10.8 or later
PHYSICAL MEASUREMENTS: BASE STATION
Dimensions:
260 mm (W) x 64 mm (H) x 260 mm (D)
Weight: 990g
Display: 2.0 inch (320 x 240) full color TFT
PHYSICAL MEASUREMENTS: CONTROLLER
Dimensions: 280.5mm (W) x 33.5mm (H) x 280.5mm (D)
Weight: 540 g
